Martindale NC3 Non-contact Voltage and Magnetic Field Tester

  • Voltage and magnetic field detection
  • Audible and visual indication from 200V to 1000V AC
  • Red for voltage, yellow for magnetic fields
  • Extended probe for easy access
  • LED torch for use in low light
  • LED pulse and auto power off

CAT IV 1000V
SKU: MARNC3 Category: Tag:

Description

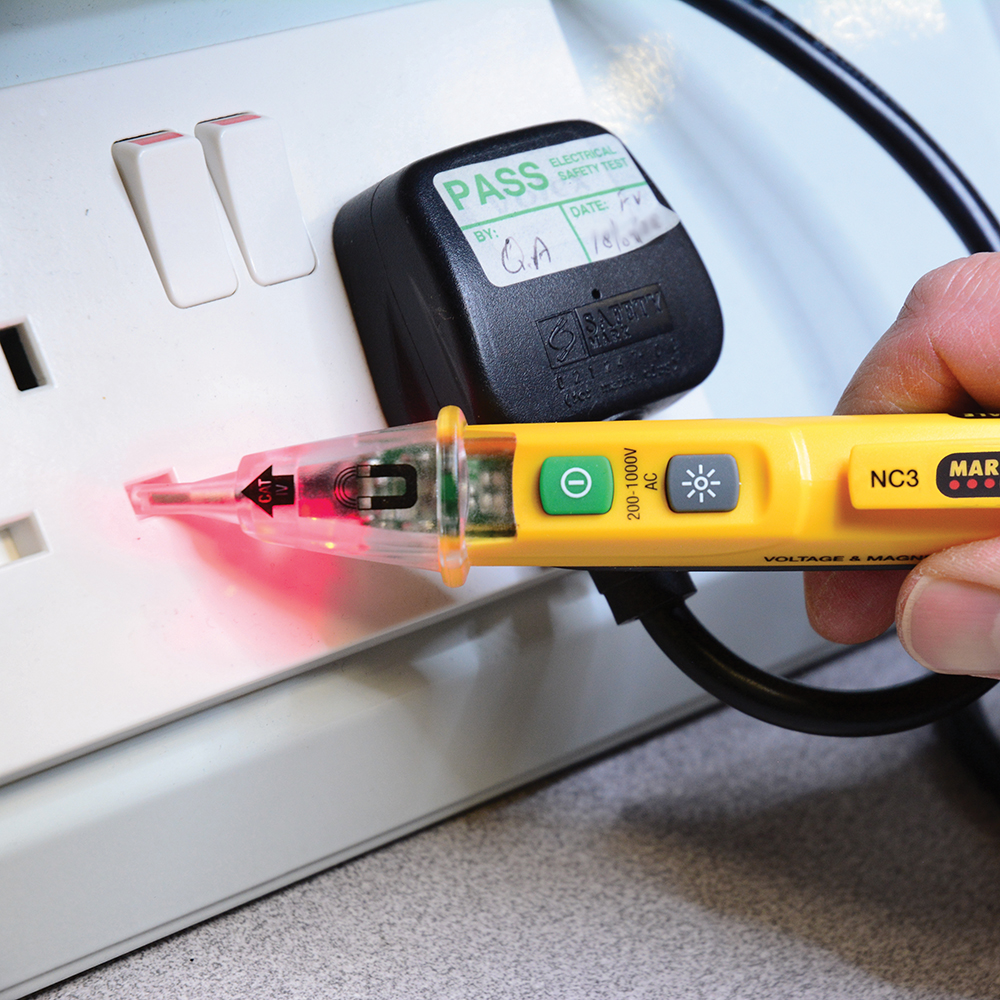

The NC3 is a non-contact voltage and magnetic field tester for accurately detecting the presence of AC voltages between 200V and 1000V. When voltages are detected, a bright red LED illuminates the clear tip of the NC3 and a buzzer sounds.

In addition to voltage detection, the NC3 can be used for testing relays and solenoid valves without having to fully dismantle the equipment. On detecting a magnetic field, a bright yellow LED illuminates the tip of the tester. Applications include troubleshooting and servicing of control equipment in process industries, energy, transportation and pneumatic and hydraulic control systems.

A built-in torch in the tip is ideal for use in low light areas clearly illuminating the area under test. Auto power off and a recessed on button ensure a long battery lifetime and the NC3 functionality also includes low battery indication.

The NC3 replaces the Martindale VT3.

Specifications

Indication Range 200-100V AC
40-400Hz
Voltage Sensitivity indicates 4mm approx. from a conductor at 240V AC
Magnetic Sensitivity > 10mT
Indication Audible and LED
Conforms to BS EN 61010-1
Supply 2x AAA batteries (included)
Weight 55g (incl. battery)
Dimensions 155mm length, approx. 25mm diameter

Comparison

 NC2NC3NC4
AC Voltage Range200-1000V200-1000V12-1000V
50V-1000V
Frequency Range40-400Hz40-400Hz40-400Hz
Magnetic Field Detection> 10mT
LED IndicationRed LEDYellow / Red LEDRed LED
Audible Indication
Power On Pulse LED
Low Battery Indication
Auto Power Off
LED Torch

Datasheet

Download

Manual

Download

£29.00
