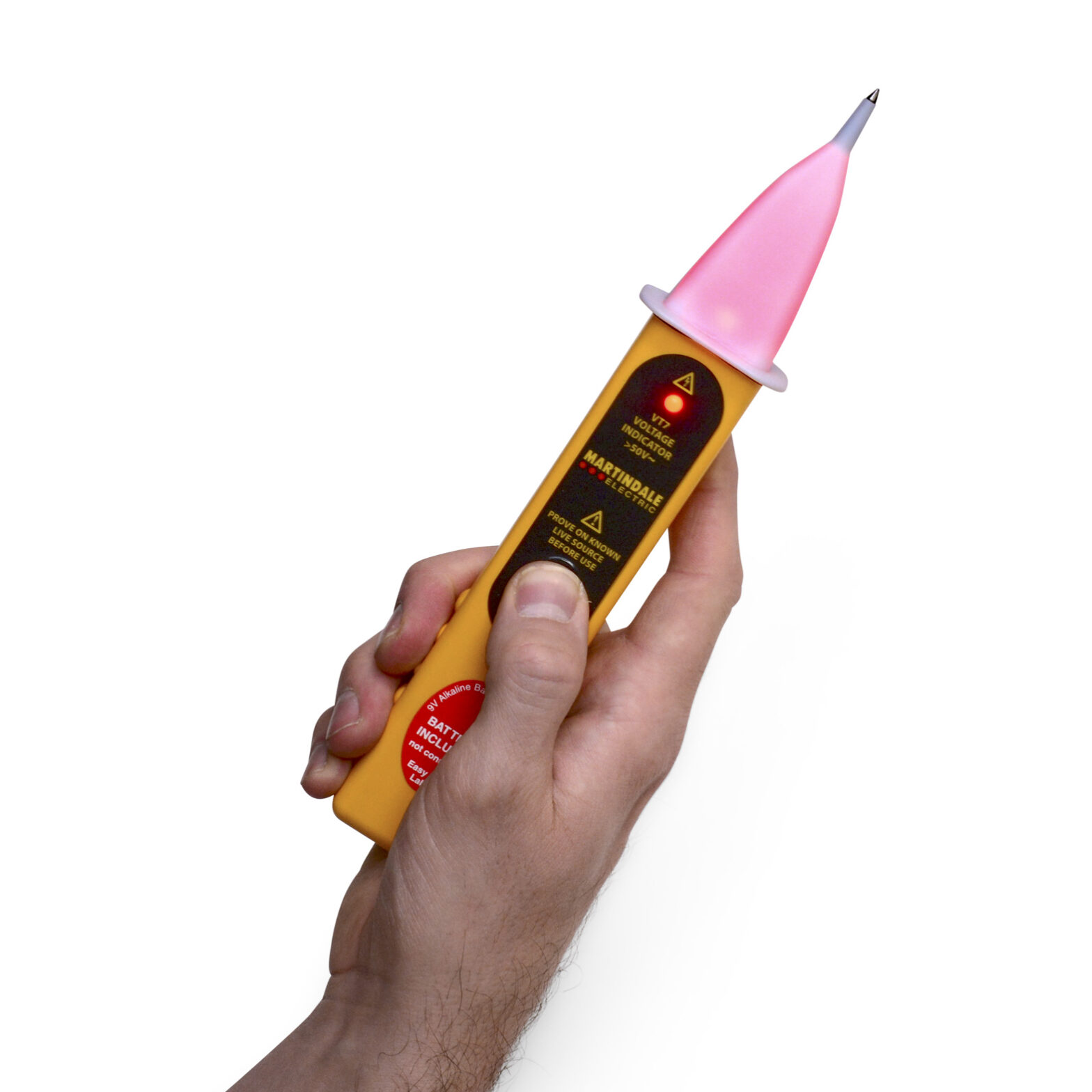

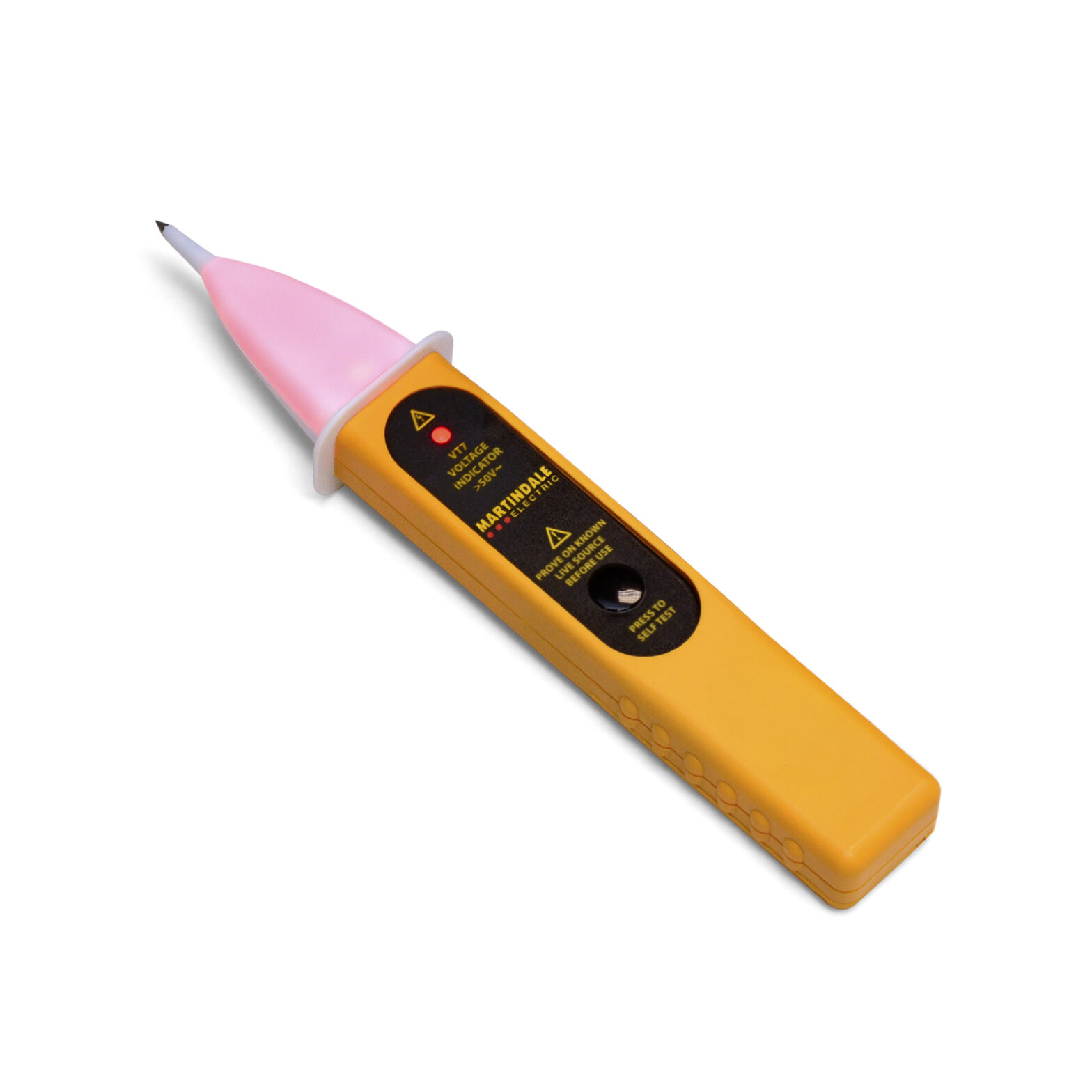

Martindale VT7 Single Pole Voltage Indicator

  • 50V-600V AC
  • Bright LED indication
  • Audible indication
  • Detects live panel casings
  • Optimised for use when wearing PPE gloves
  • Integrated self test function

CAT III 600V CAT IV 300V
EAN: 5036162186431 SKU: MARVT7 Category: Tags: ,

Description

A single pole contact voltage indicator which detects AC voltages of 50V-600V with audible and bright LED indication.

This ergonomically designed voltage tester has a self-test function and is IP54 rated, for indoor and outdoor use. The tester is of durable construction making it suitable for both industrial and domestic applications.

Uniquely, the VT7 can be used when wearing protective gloves and gauntlets ensuring safe working practices can be adhered to at all times.

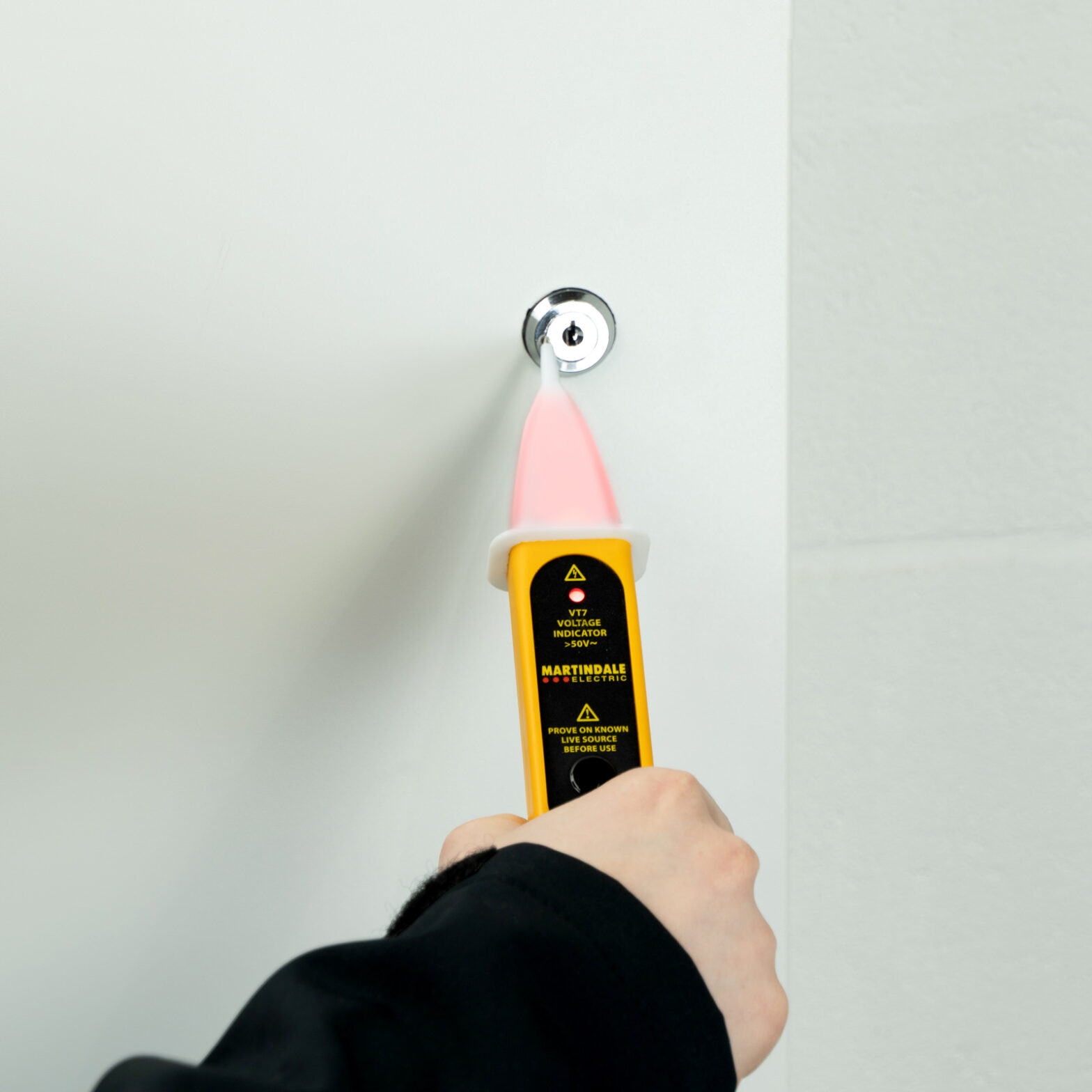

The probe is GS38 compliant and is ideal for detecting live panel casings.

The external tip enables easy access in confined spaces.

Video

Specifications

Audible and visual indication
Voltage range 50V-600V AC RMS
Frequency range 50-60Hz
Test current <5μA
Environmental Temperature Operating & Storage:-10°C to 55°C
Humidity Operating & Storage: ≤85% RH
Altitude up to 2000m
Supply 9V, PP3 alkaline battery (IEC 6LR61, NEDA 1604A)
Current consumption 34mA max
Complies with BS EN 61010-1

BS EN 61326-1

IP rating IP54 (Water resistant)
Weight 120g approx. (with batteries)
Dimensions 236 x 44 x 33mm
Includes 9V PP3 battery and manual

Accessories

Datasheet

Download

Manual

Download

£31.00
