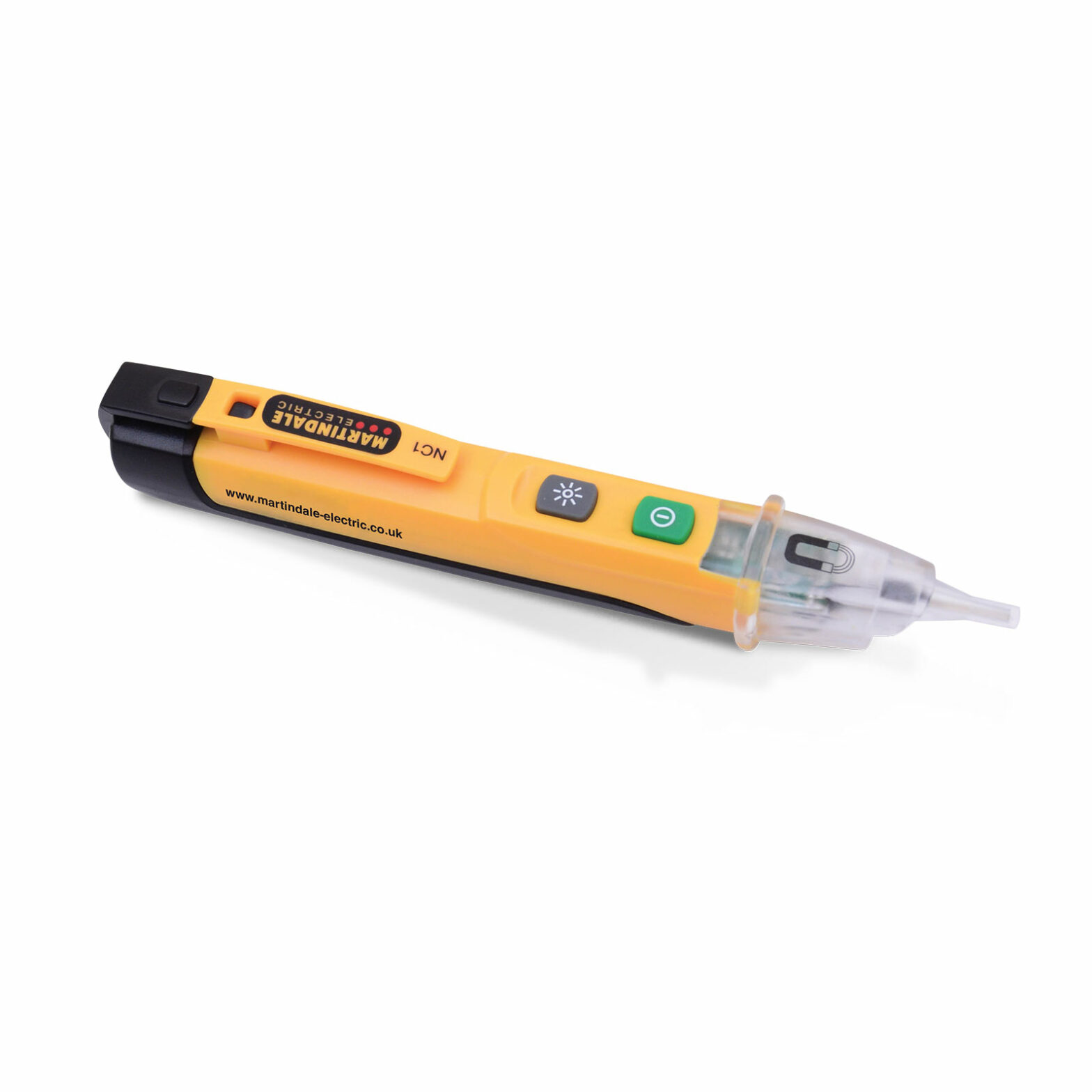

Martindale NC1 Non-contact Solenoid/Magnetic Field Tester

  • Audible & visual indication of magnetic fields
  • Tests solenoid valves and relays without dismantling
  • Extended probe for easy access
  • Clear tip for high visibility indication
  • LED torch for use in low light
  • LED pulse and auto power off

CAT IV 1000V
SKU: MARNC1 Category: Tag:

Description

The NC1 is a non-contact magnetic field tester for checking the operation of relays and solenoid valves in a wide range of machinery. The NC1 saves time by allowing testing of solenoids without dismantling the equipment or control panel.

A bright yellow LED illuminates the clear tip of the tester and a buzzer sounds when a magnetic field is detected.

Applications include troubleshooting and servicing of control equipment in process industries, energy, transportation and pneumatic and hydraulic control systems.

The ergonomic pen shape with clip makes it ideal for carrying in a pocket or toolbelt and a built-in torch in the tip aids use in low light areas. Other NC1 features include low battery indication and auto power off.

Specifications

Magnetic Sensitivity >10mT
Indication LED
Weight 55g (incl. battery)
Dimensions 155mm length, approx. 25mm diameter

Comparison

 NC1NC2NC3
AC Voltage Range200-1000V200-1000V
Frequency Range40-400Hz40-400Hz
Magnetic Field Detection> 10mT> 10mT
LED IndicationYellow LEDRed LEDYellow / Red LED
Audible Indication
Power On Pulse LED
Low Battery Indication
Auto Power Off
LED Torch

Datasheet

Download

Manual

Download

£20.00
