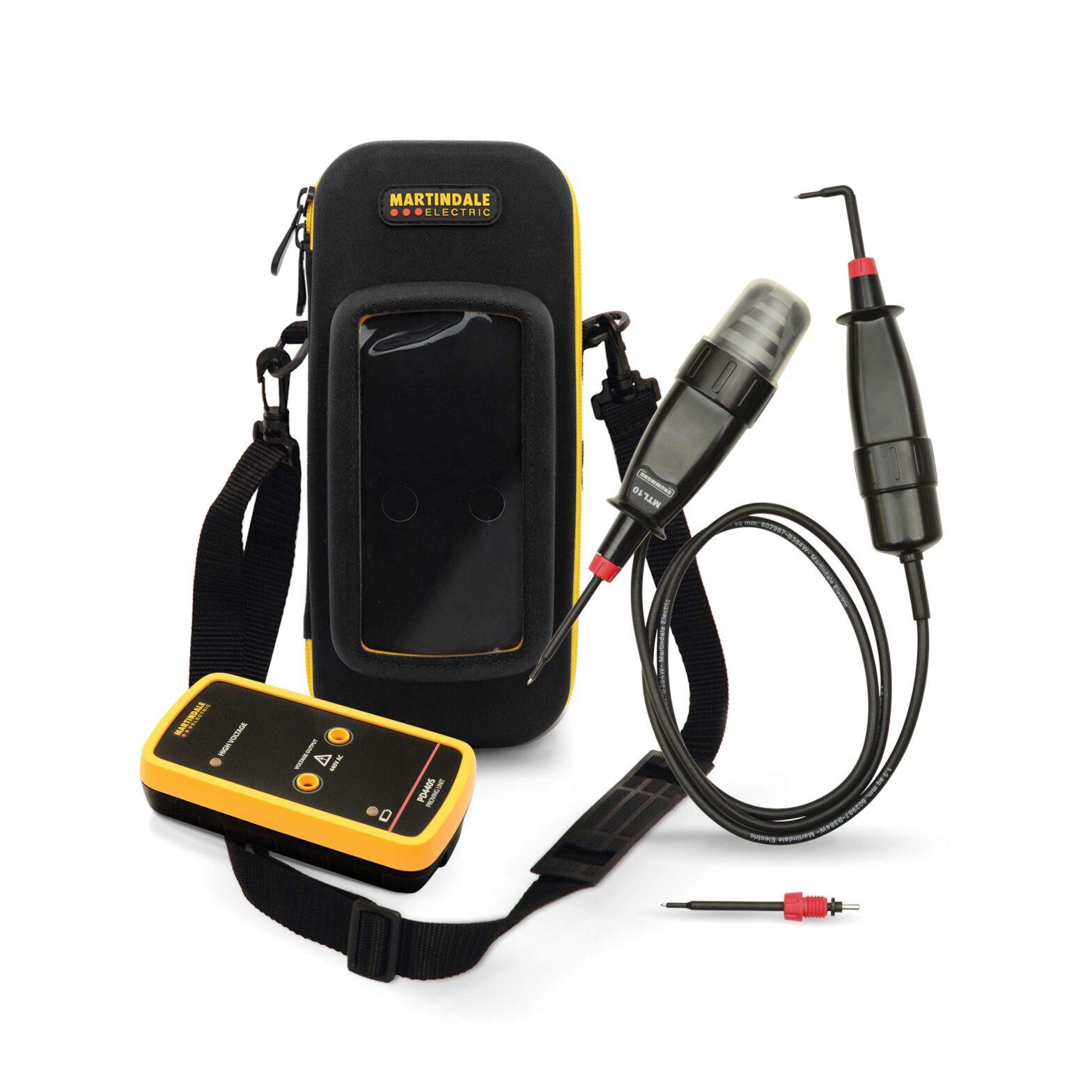

The MTL10PD-S kit contains the MTL10 voltage indicator and PD440S proving unit, supplied with a tailor-made hard carry case. It has a clear window for access to test points on the proving unit without the need to remove it from the case.
The MTL10 is fully GS38 and CAT IV 600v compliant. The super bright LED voltage level indicators will indicate 50,100, 200 and 400V voltage presence in RED LEDs.

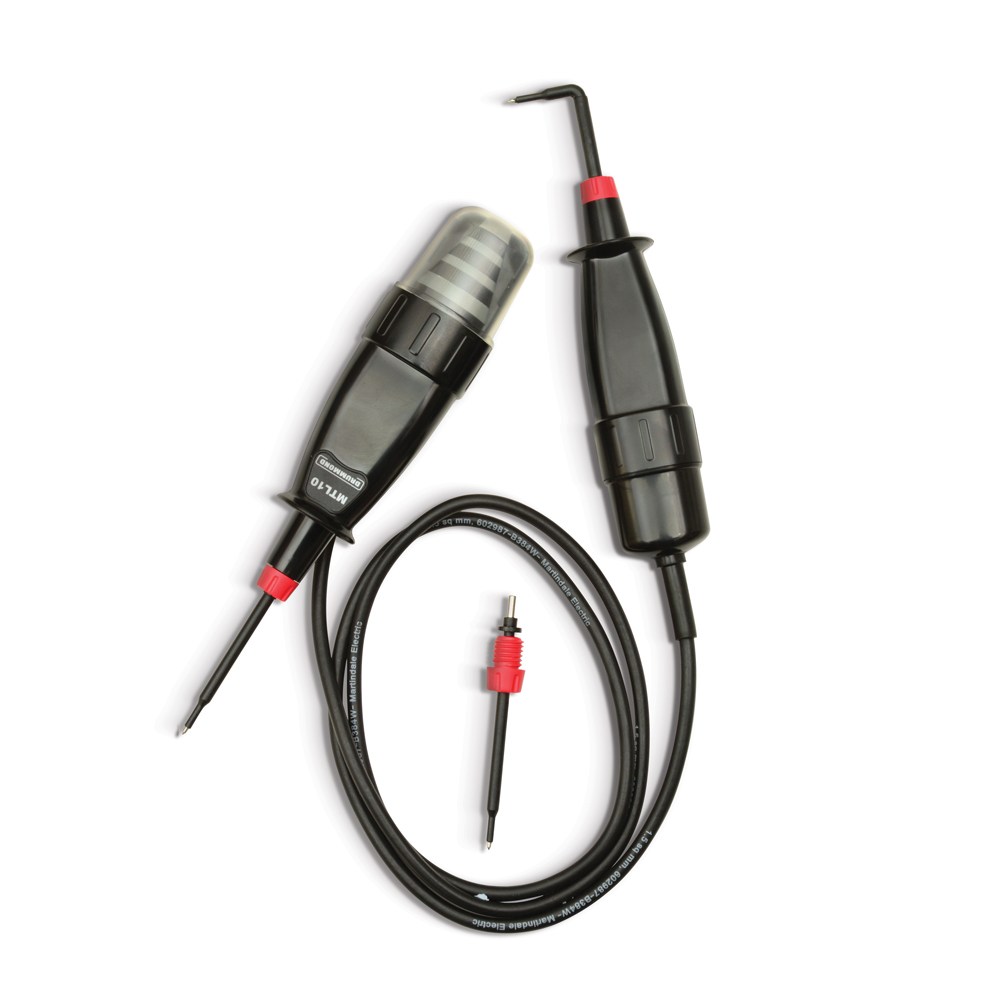

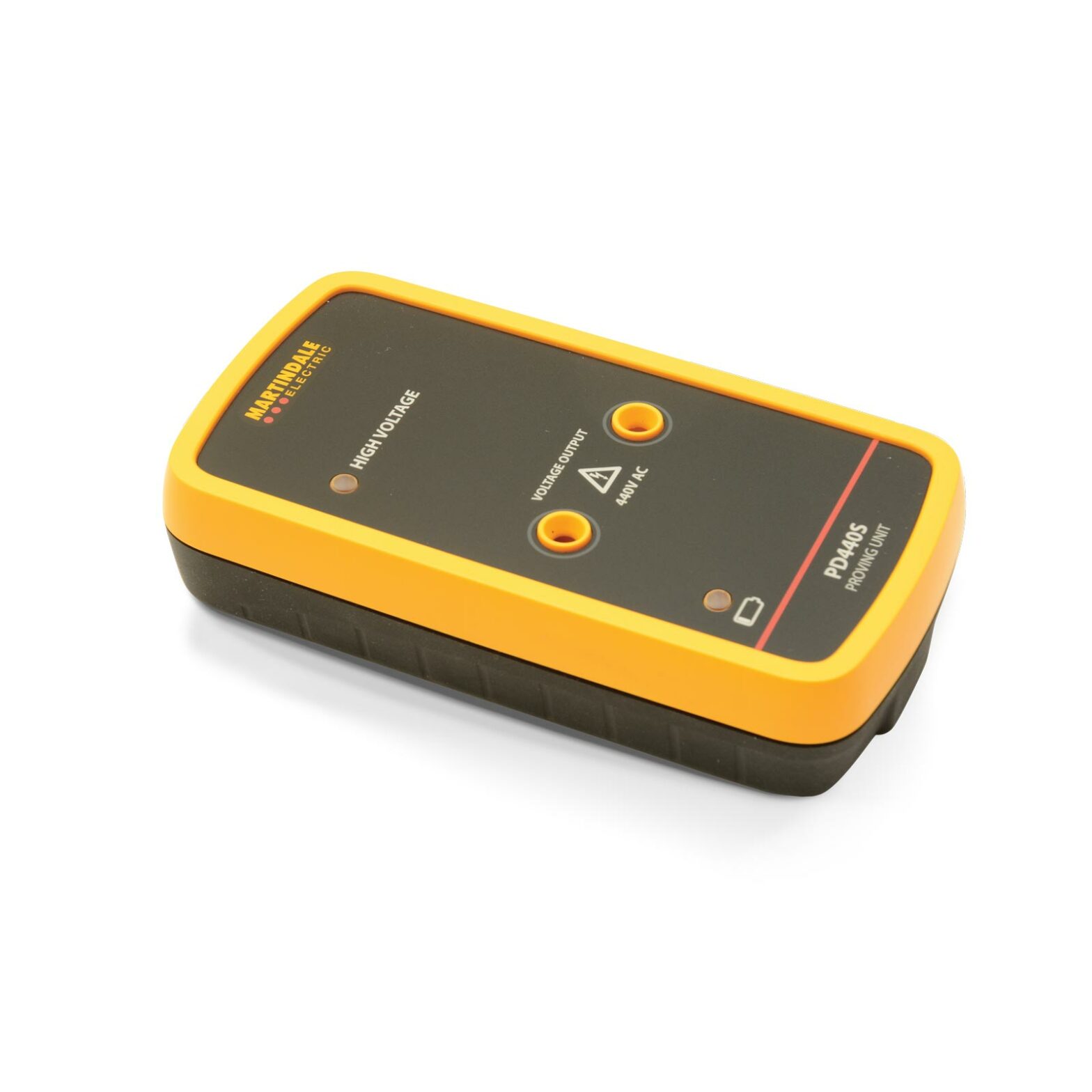

The MTL10 is supplied with both straight and right-angled probes The PD440S has an output voltage of 440V and is ideal for proving both low and high impedance testers.
The kit fully meets the requirements of GS38 and proving dead procedures.
MTL10 robust design with finger shield
GS38 Compliant
Includes 440V proving device
CAT IV 600V safety rating
Voltage range:
500VAC, 750DC
LED Indication:
± 50, 100, 230, 400V AC/DC
Range detection:
Automatic
Response time:
<0.1s
Frequency range:
DC, 40 – 65Hz
Test current:
3.5mA at 500V AC, 750V DC
Temprange:
-10°C..+55°C/at max. 85% RH
Proving Unit:
440V - PD440S
Complies with:
BS EN 61243-3 GS38 CAT IV 600 V Class II double insulation
Warranty
2 Years
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162000249
