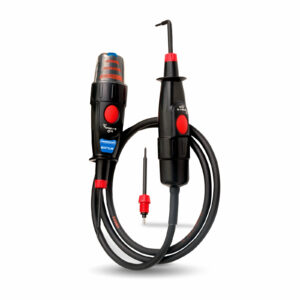

Drummond MTL20 Test Lamp

  • Four illumination bands, 50, 100, 200 & 400V
  • Twin test buttons eliminate phantom voltage
  • Fully compliant GS38 probes
  • Right angled probe tip also included
  • 360° viewing angle
  • CAT IV 600V safety rating

CAT IV 1000V
SKU: DRUMTL20 Categories: , Tag:

Description

The new Drummond MTL20 test lamp safe voltage indication from 50 – 500V AC / DC. In addition to the MTL10, the new model MTL20 incorporates two test buttons, one on the body of the unit and one on the probe. Simultaneous depression of both buttons enables the unit to draw a high current, allowing the user to differentiate between phantom voltages and hazardous persistent voltages. The robust design meets the recommendations of the Health and Safety Executive in their guidance notes on the electrician’s test lamp (GS38) as well as complying with BS EN 61243-3 and BS EN 61010, CAT III 1000V and CAT IV 600V.

A unique feature of this new Drummond test lamp are the four distinctive bands of illumination, with a 360° viewing angle, providing indication of voltages above 50, 100, 200 & 400 volts, even in bright sunlight. This allows for accurate identification of potentially lethal voltages at 50V and enables the user to distinguish between 110V, 230V and phase to phase voltages in a 3 phase system.

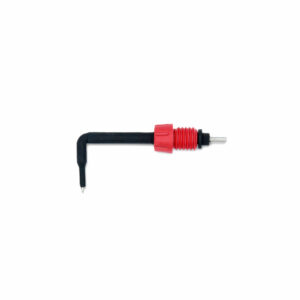

Both the lamp housing and the probe have a finger shield and insulated probe tip with only 4mm of exposed metal. A two layer double insulated cable with white inner insulation gives a clear warning of abrasion that might compromise the user’s safety, and is resistant against heat and oil. To enable use in most circumstances, a right angled probe tip is supplied in addition to the two straight tips. For maximum ease of use the right angled probes can be rotated through 90, 180 and 270 degrees.

Video

Specifications

Maximum working voltage 500VAC, 750DC
Voltage ranges 50, 120, 230, 400V AC/DC
Range detection automatically
Response time <0.1s
Frequency range DC, 40-65Hz
Test current <3.5mA, with switches depressed 28mA @ 240VAC, 60mA @ 500VAC
Temperature range -10°C – +55°C
Humidity max. 85% R.H.
Measurement CAT CAT IV 600V
IP rating IP64
Weight 0.35kg
Dimensions 213 x 112 x 72mm
Complies with

BS EN 61243-3:2014

GS38

CAT IV 600 V

Class II double insulation

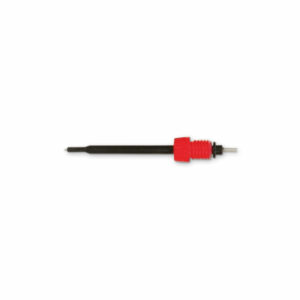

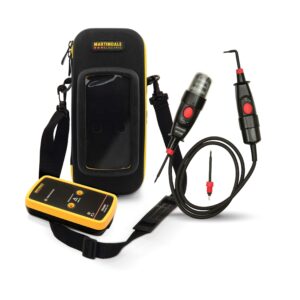

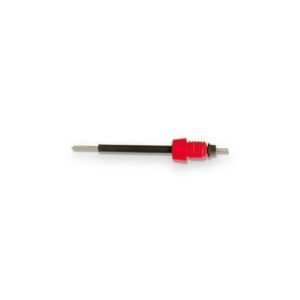

Accessories

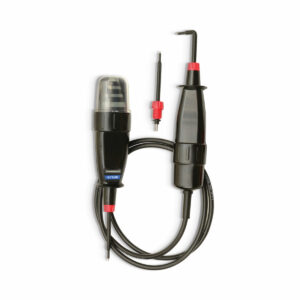

Comparison

 MTL10MTL15MTL20
Self Powered
AC/DC Voltage Indication
360 Degree Viewing
50/100/200/400V Thresholds
50/230/400/690V Thresholds
Low Impedance Function
Lockable Probes363
Safety ratingCAT IV 600VCAT IV 1000VCAT IV 600V

Datasheet

Download

Manual

Download
