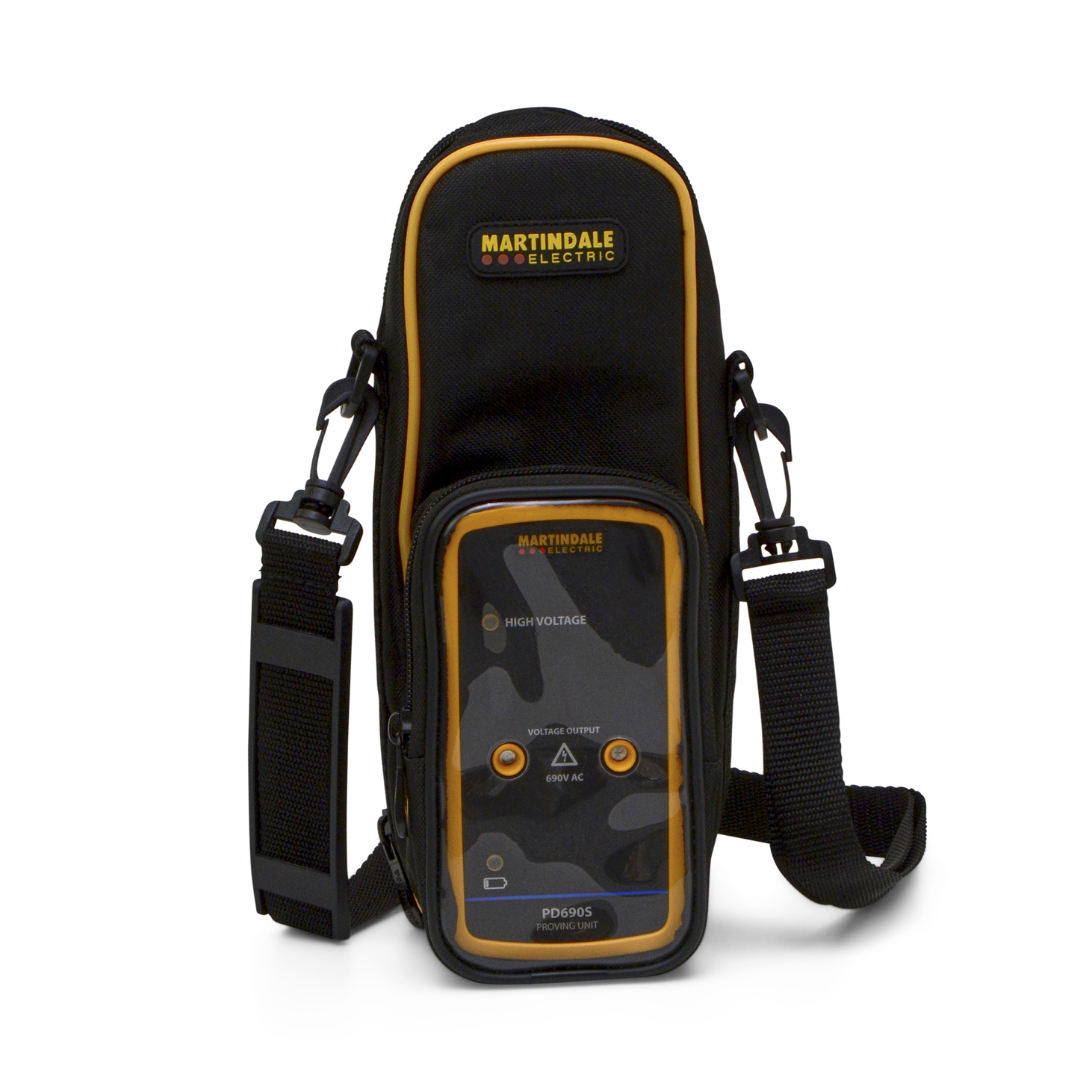

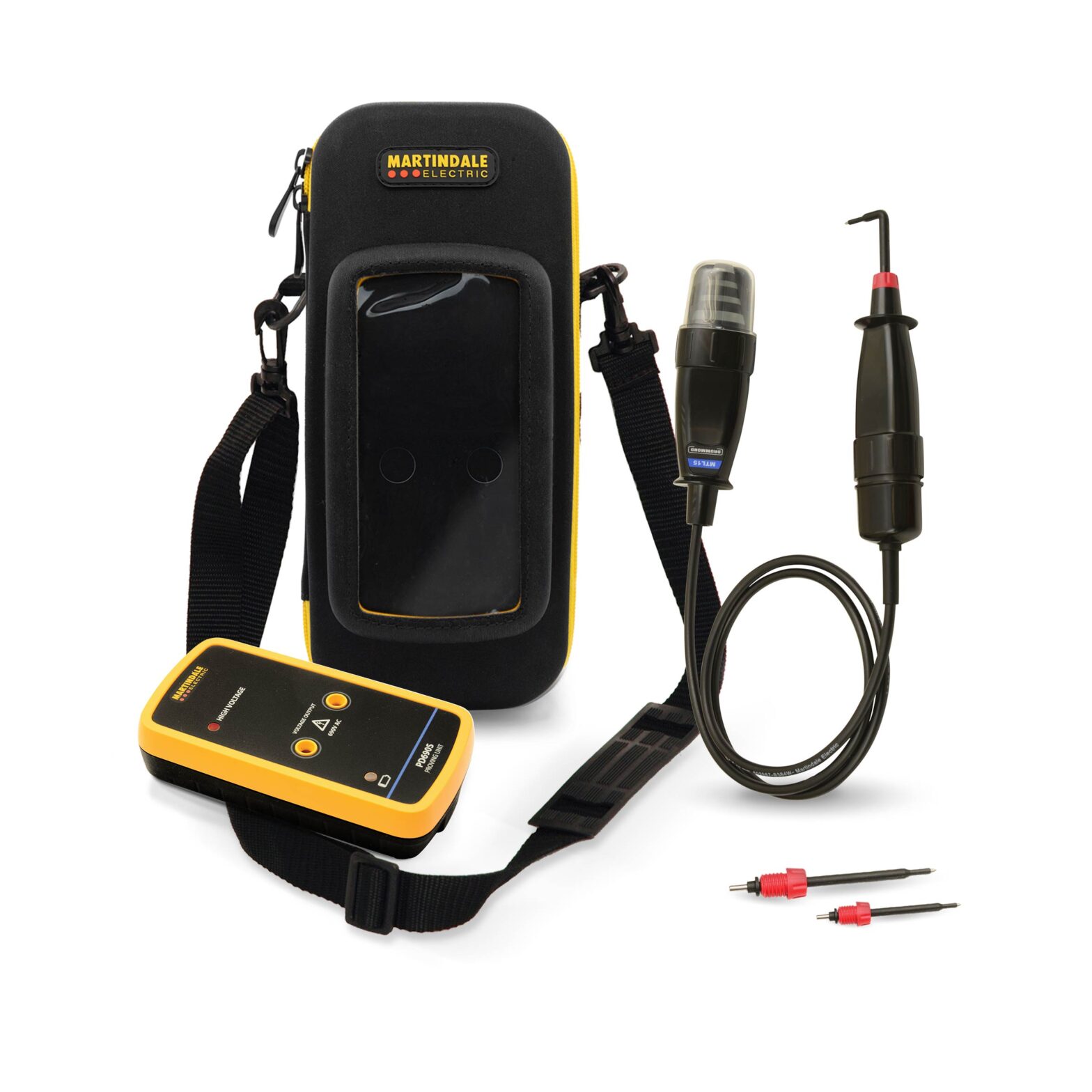

Martindale’s MTL15PD-S contains the Drummond MTL15 test lamp and PD690S proving device supplied with a tailor-made carry case made from heavy denier nylon. It has a clear window for access to test points on the proving unit without the need to remove it from the case.

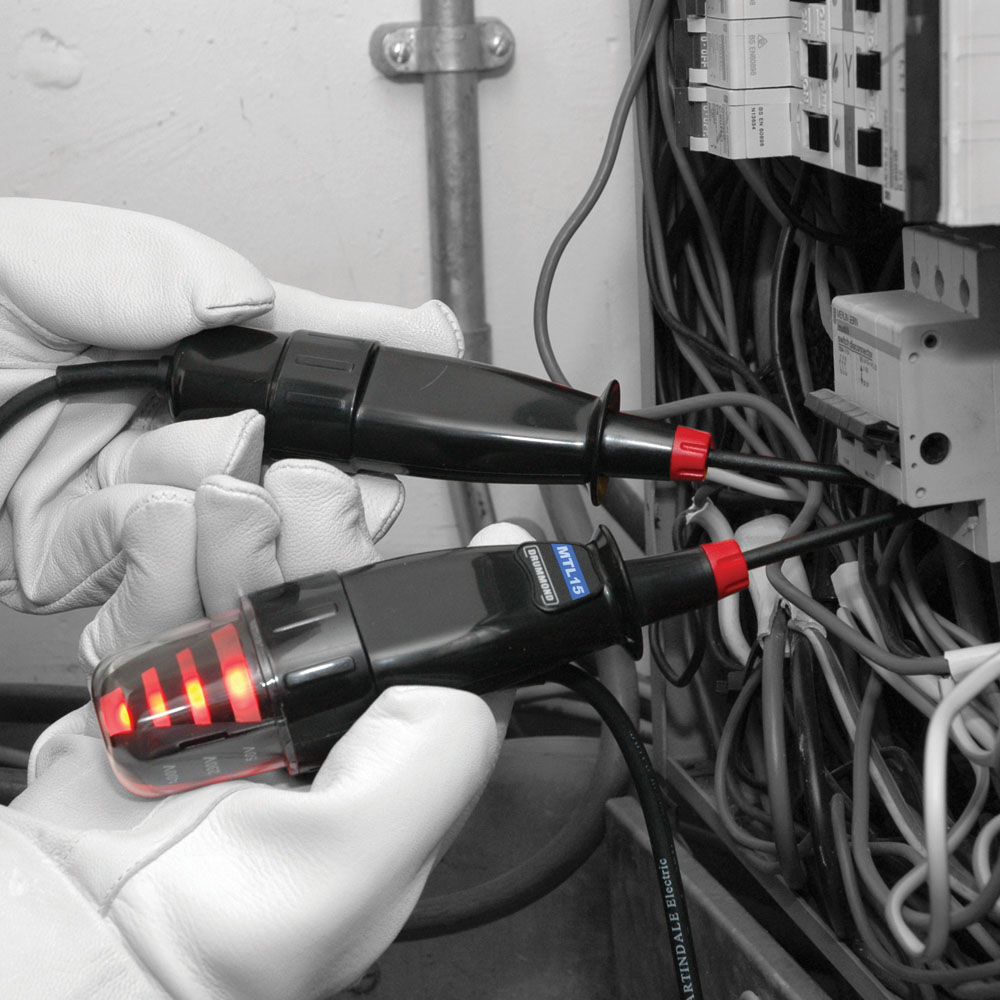

The MTL15 extends the application areas for Drummond test lamps to higher voltage installations. With AC/DC voltage indication thresholds of 50V, 230V, 400V and 690V plus a 1000V CAT IV safety rating, the MTL15 is the ideal solution for proving dead in all installation categories as defined in BS EN 61010.
The PD690S proves the operation of voltage indicators, multimeters and test lamps at 690V AC and is ideal for higher voltage applications:
The kit fully meets the requirements of GS38 and proving dead procedures.
MTL15 robust design with finger shield
Includes 690V proving unit
Includes hard carry case
CAT IV 1000V safety rating
Voltage range:
1000V DC/AC RMS
LED Indication:
± 50, 230, 400V, 690 AC/DC
Range detection:
Automatic
Response time:
<0.1s
Frequency range:
DC, 40 – 65Hz
Test current:
3.5mA at 1000V DC/AC rms
Temprange:
-10°C..+55°C/at max. 85% RH
Proving Unit:
690V - PD690S
Complies with:
BS EN 61243-3 GS38 CAT IV 1000 V Class II double insulation
Warranty
2 Years
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162188763
