Drummond MTL20PD-S Test Lamp and Proving Device

  • Four voltage levels
  • Dual impedance
  • 360-degree viewing
  • Supplied with GS38 and CAT IV 600v Safety rating
  • Straight and Right-Angled Probes

CAT III 1000V CAT IV 600V
EAN: 5036162000256 SKU: DRUMTL20PD-S Categories: , Tags: ,

Description

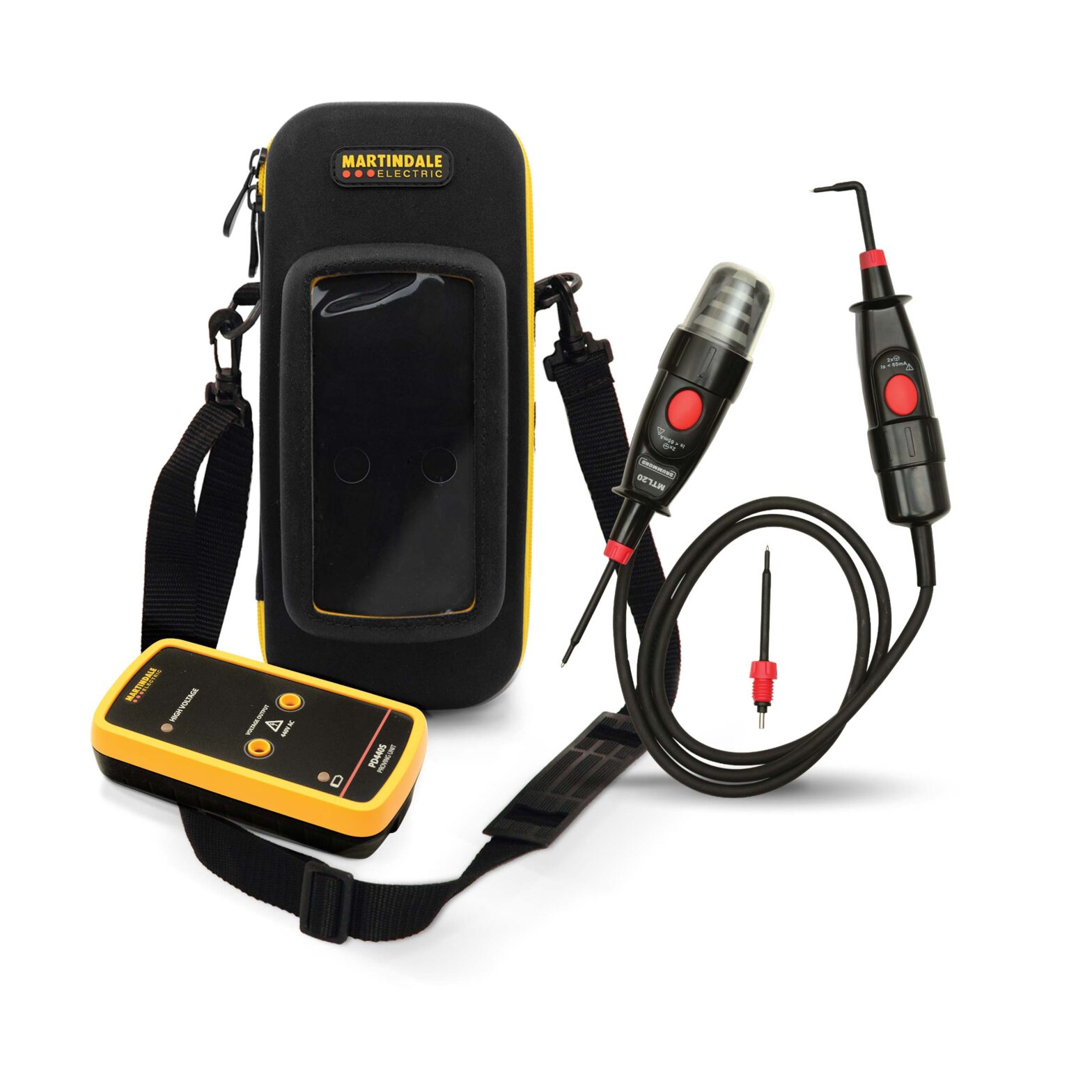

This kit contains the MTL20 voltage indicator and the PD440S proving unit. Supplied in a tailor-made carry case made from heavy denier nylon. It has a clear window for access to test points on the proving unit without the need to remove it from the case.

The Drummond MTL20 is fully GS38 and CAT IV 600v compliant. The super bright LED voltage level indicators will indicate 50, 120, 230 & 400V voltage presence in bright red LED’s.

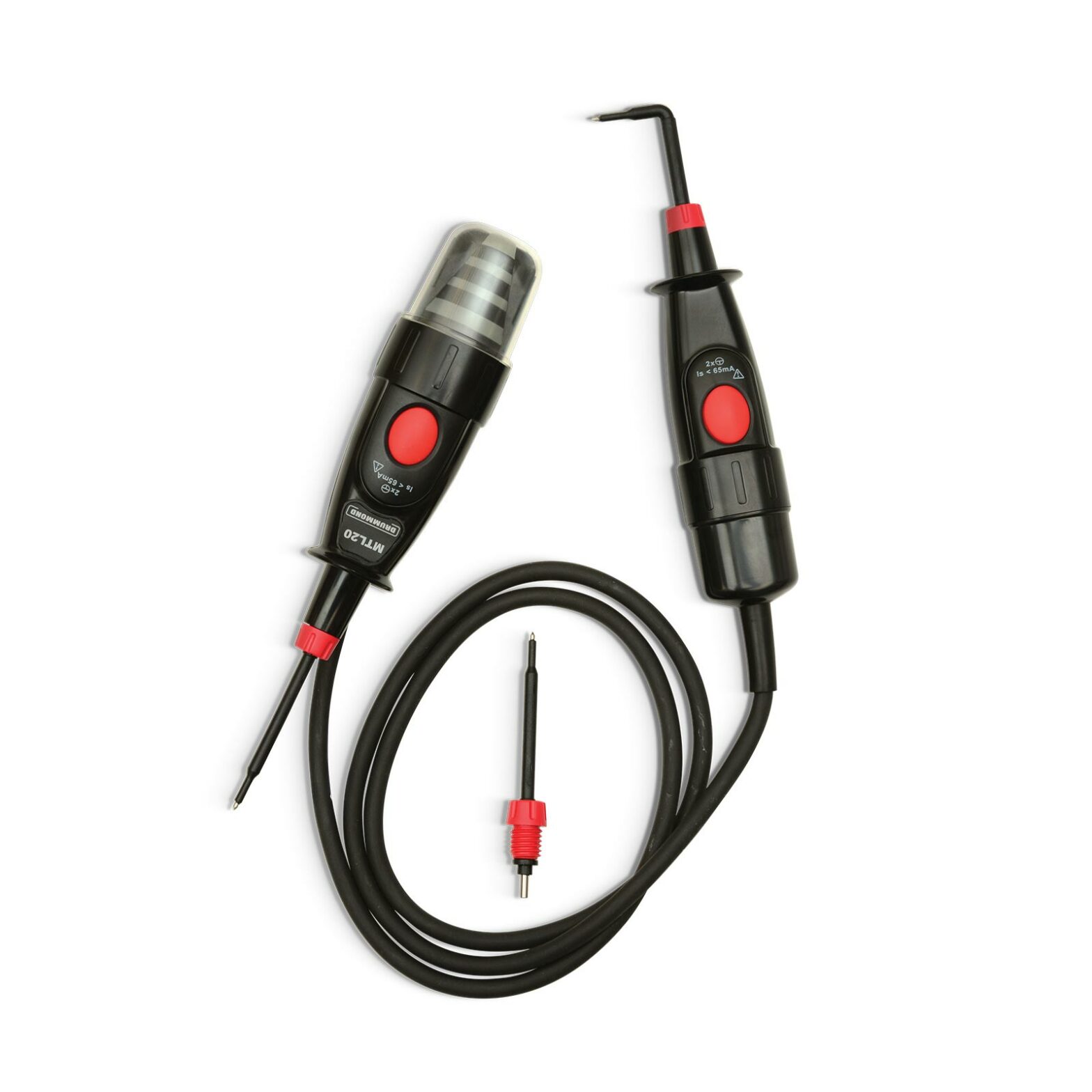

The MTL20 is supplied with both straight and right-angled probes to allow good purchase and stability in some applications and avoiding the risk of a probe slipping in the wrong or dangerous direction.

Where capacitive or phantom voltages, often in long cables running parallel, supplying the network, are present the MTL20 allows the user to discharge these voltages via the large RED buttons located on each probe. Depressing both buttons simultaneously in the presence of such voltages will discharge the voltage using the inbuilt loading of the circuit by the tester. This is confirmed by the extinguishing of all LEDs.

The PD440S supplied in this kit has an output voltage of 440V and is ideal for proving both low and high impedance testers. Over-moulded and tactile this is the next generation of Martindale proving units.

It has long battery life and a low battery indicator and is colour coded for voltage output.

Video

Specifications



The full 3 piece kit includes:
PD440S Proving device
MTL20 Test lamp
TC71 Soft carry case

Datasheet

Download

Manual

Download
