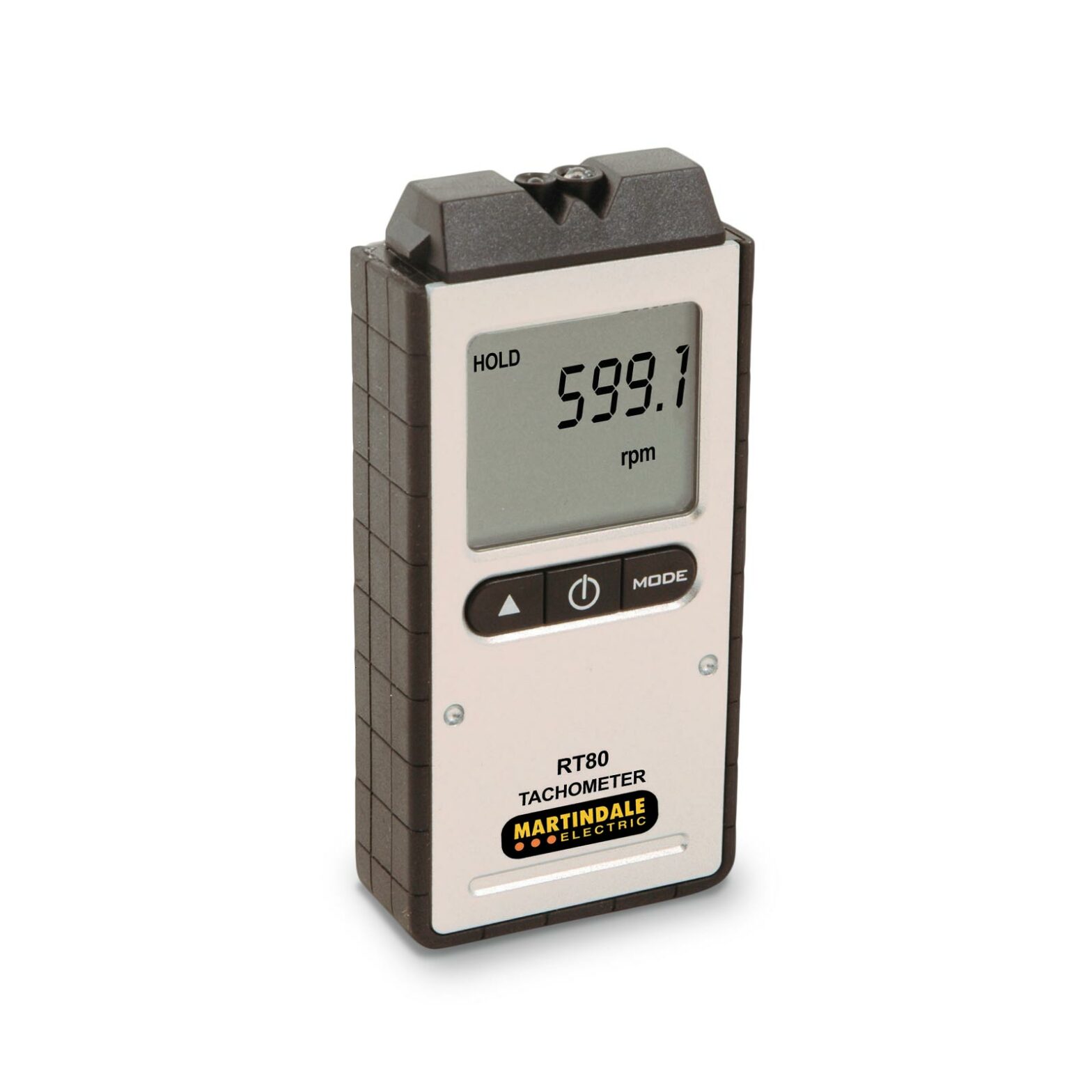

Martindale RT80 Optical Tachometer

  • Ranges:100 to 99999 rpm 1.7 to 1666 rps
  • Display Hold & Min / Max readings
  • Max-Min & Average functions
  • Backlit display
  • Pocket sized
  • Auto power off

SKU: MARRT80 Category:

Description

A non-contact tachometer for applications where direct contact RPM measurements are not possible. The RT80 displays RPM or RPS readings on the LCD A non-contact tachometer suitable for applications where direct contact RPM measurements are not possible. The RT80 displays RPM or RPS readings on the LCD display and has a useful hold function for maximum, minimum and average readings.

The meter is supplied with reflective tape for measuring rotating objects which do not have the reflective surface required for accurate measurement.
The LM82 is supplied with the following accessories:
2 x 1.5V AAA batteries
Protective cover for safe storage
Detachable carry strap
Instructions

The meter is supplied with reflective tape for measuring rotating objects which do not have the reflective surface required for accurate measurement.

Specifications

Measuring range 100.0 to 99999 rpm, 1.7 to 1666 rps
Resolution 0.1 rpm (100.0 to 19999.9 rpm)

0.1 rps (1.7 to 333.3 rps)

1 rpm (20000 to 99999 rpm)

1 rps (334 to 1666 rps)

Accuracy ± 0.02% of rdg + 1 digit
Stated accuracy at 18°C to 28°C <75% RH
Measurement rate per second
Supply 2 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A)
Weight 110g approx. incl batteries
Dimensions 25 x 51 x 133mm
Includes protective cover, batteries, detachable carry strap and manual

Datasheet

Download

Manual

Download

£132.00
