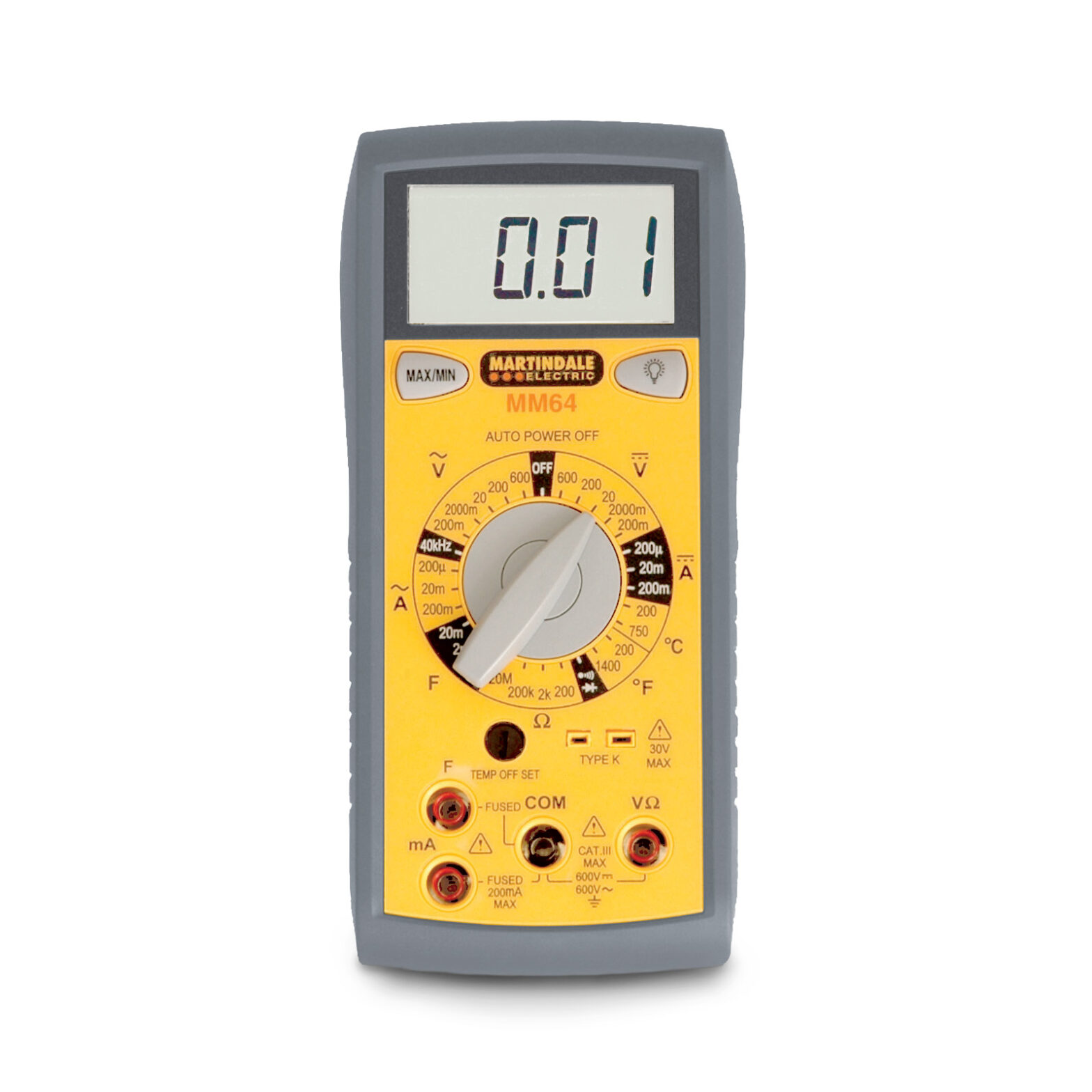

Martindale MM64 Digital Multimeter

  • 600V AC/DC
  • 0.1μA – 200mA
  • 1Hz – 40kHz Frequency
  • 0.1μF – 20mF Capacitance
  • Temperature Measurement
  • Continuity & Diode test

CAT III 600V
EAN: 5036162185915 SKU: MARMM64 Category: Tag:

Description

The digital multimeter is easily the most used test tool in a technician’s toolbox.

The MM64 with its rugged over-moulded case is a manual ranging digital Multimeter and performs all the basic test functions with the added feature of temperature measurement via the K-type thermocouple.

Temperature capability is from -35°C to 750°C.

It can measure AC and DC voltages from 0.1mV to 600V and AC and DC currents from 0.1μA to 200mA.

Resistance measurements are up to 20MΩ, frequency measurements up to 40 kHz and capacitance from 0.01μF to 20mF.

Continuity with buzzer and Diode tests complete this accurate and reliable tester.

Supplied with TL16 leads, spare fuse, K-type thermocouple, battery and manual.

Specifications

Display 3½ digit
Voltage AC 0.1mV-600V (± 1.2% rdg ± 4 dgt)
Voltage DC 0.1mV-600V (± 0.5% rdg ± 1 dgt)
Currrent AC 0.1µA-200mA (± 1.5% rdg ± 4 dgt)
Current DC 0.1µA-200mA (± 1% rdg ± 1 dgt)
Resistance 0.1Ω-20MΩ (± 1% rdg ± 4 dgt)
Frequency 1Hz-40kHz (± 0.1% rdg ± 3 dgt)
Capacitance 0.1µF-20mF (± 4% ± 10 dgt)
Temperature -35°C to 750°C (2 ranges)-30°C to 1400°C (2 ranges)(± 1% rdg ± 1°C)
Dimensions 165 x 78 x 42.5mm
Weight 285g approx
Includes TL16 leads, K-type thermocouple, 1 x spare fuse, 9V battery and manual

Accessories

Comparison

 MM39MM64MM65
AC/DC Voltage
AC/DC Current
Resistance / Continuity
Diode test
Frequency
Capacitance
True RMS
Auto-ranging
Backlight
Overmoulded Holster
OtherMin/Max
Temperature
Safety ratingCAT III 600VCAT III 600VCAT III 600V

Datasheet

Download

Manual

Download

£79.00
