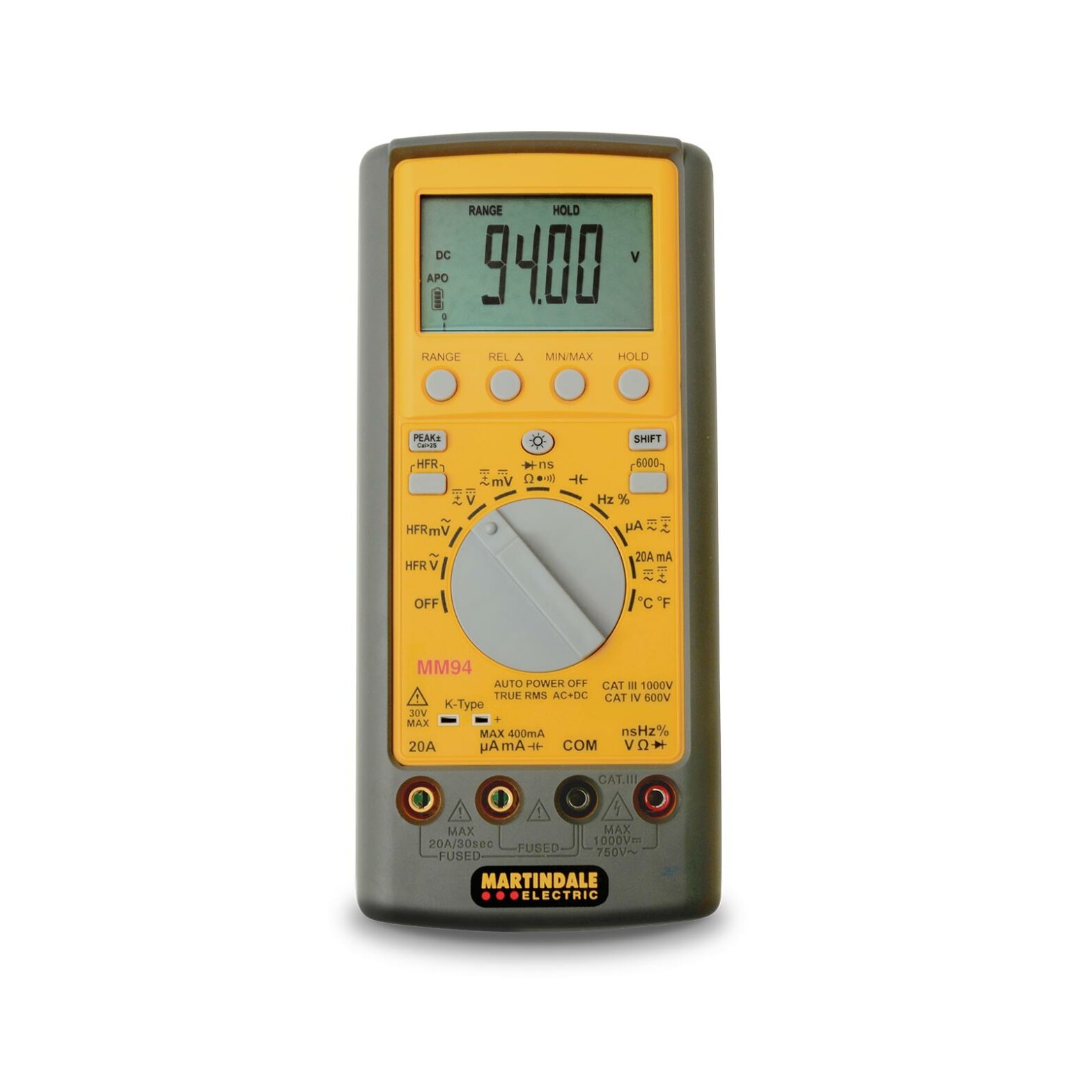

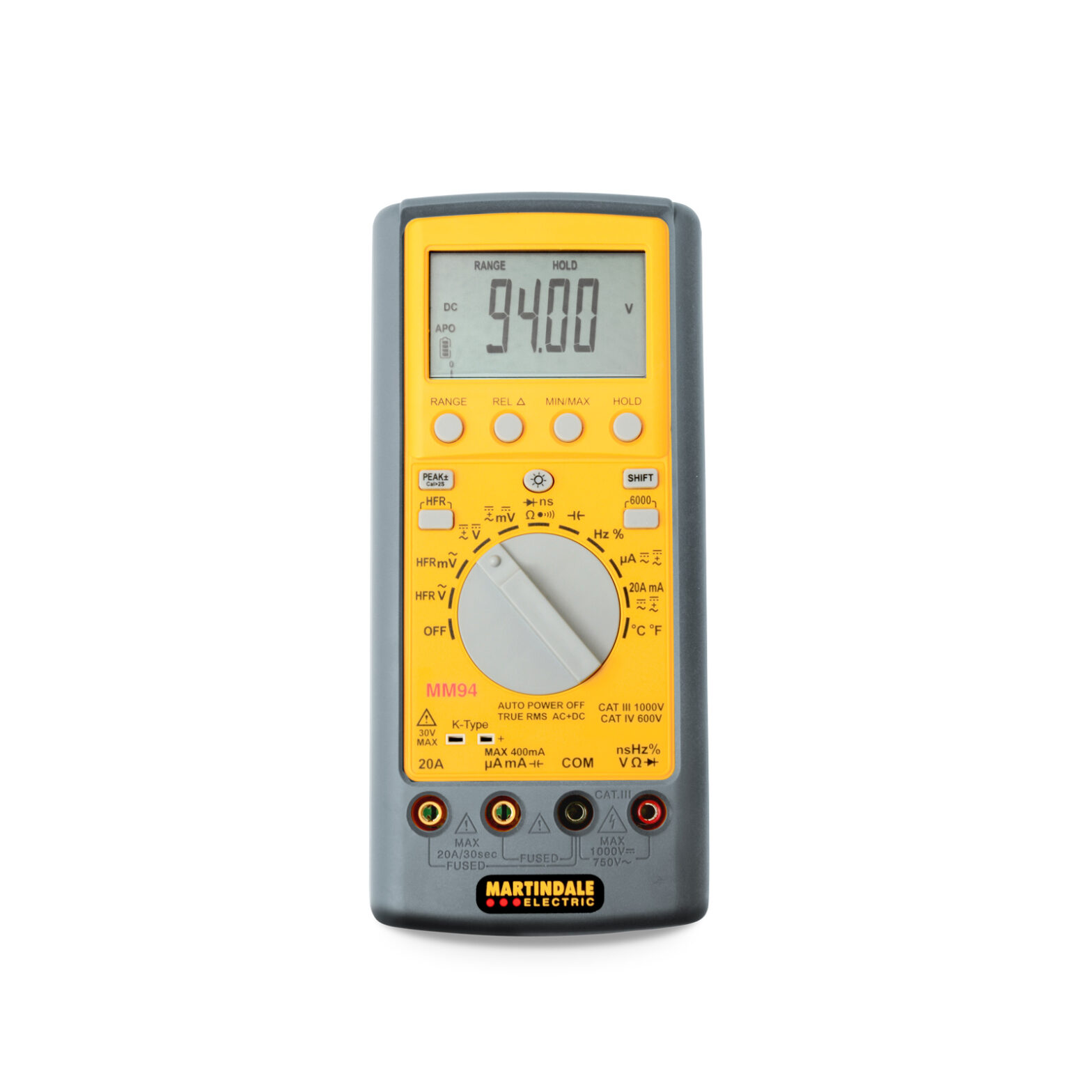

Martindale MM94 True RMS Digital Multimeter

  • Autoranging True RMS readings
  • High resolution 60,000 count
  • 750V AC, 1000V DC
  • 0.01uA – 20A
  • 0.001Hz – 10MHz Frequency
  • 1pF – 6mF Capacitance
  • Continuity & Diode test
  • Temperature Measurement
  • 600V CAT IV Safety rating

CAT III 1000V CAT IV 600V True RMS
EAN: 5036162187438 SKU: MARMM94 Category: Tags: , ,

Description

The MM94 is a high performance True RMS multimeter with a 600V CAT IV safety rating. It has an extended current measurement range up to 20A for short cycle measurements. Measurement capabilities include AC/DC voltage, capacitance, resistance and temperature with the included K Type thermocouple. Features include Min/Max and Peak measurement and a high frequency filter to optimise readings for distorted waveforms plus a relative mode.

The rugged design includes a 60,000 count backlit display with analogue bargraph.

Specifications

Display 4½ digit, 60,000 Count
Voltage AC 0.01mV-750V(± 1% rdg ± 20 dgt)
Voltage DC 0.01mV-1000V (± 0.08% rdg ± 5 dgt)
Current AC 0.01μA-20A*(± 1.5% rdg ± 20 dgt)
Current DC 0.01μA-20A* (± 0.5% rdg ± 10 dgt) *Continuous max 10A
Resistance 0.01Ω-60MΩ(± 0.3% rdg ± 20 dgt)
Continuity <40Ω (audible indication)
Frequency 0.001Hz-10MHz(± 0.1% rdg ± 10 dgt)
Capacitance 1pF- 6mF(± 3.0% rdg ± 10 dgt)
Temperature -50°C to 1300°C(± 1% rdg ± 1°C, 0-400°C)
Features True RMS readings, duty cycle, continuity, diode test, k-type, thermocouple, high frequency filter, conductance
Weight 400g approx
Dimensions 198 x 90 x 44 mm

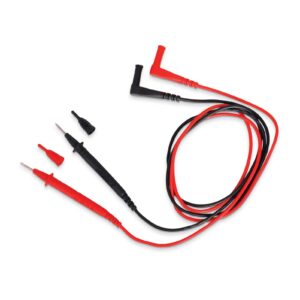

Includes TL16 leads, 1 x spare fuse, 9V battery, manual and 1 x k-type thermocouple

Accessories

Comparison

MM65MM68MM94
AC/DC Voltage✔✔✔
AC/DC Current✔✔✔
Resistance / Continuity✔✔✔
Diode test✔✔✔
Frequency✔✔
Capacitance✔✔
True RMS✔✔
Auto-ranging✔✔✔
Backlight✔✔
Overmoulded Holster✔✔✔
OtherMin/Max
Duty Cycle		Min/Max/Peak
Temperature
Duty Cycle
Low Pass Filter
Safety ratingCAT III 600VCAT III 600VCAT IV 600V

Datasheet

Download

Manual

Download

£218.00
