Martindale MM65 Autoranging Digital Multimeter

  • 600V AC/DC
  • 0.1μA – 10A
  • Continuity & Diode test
  • Autoranging

CAT III 600V
EAN: 5036162185922 SKU: MARMM65 Category: Tag:

Description

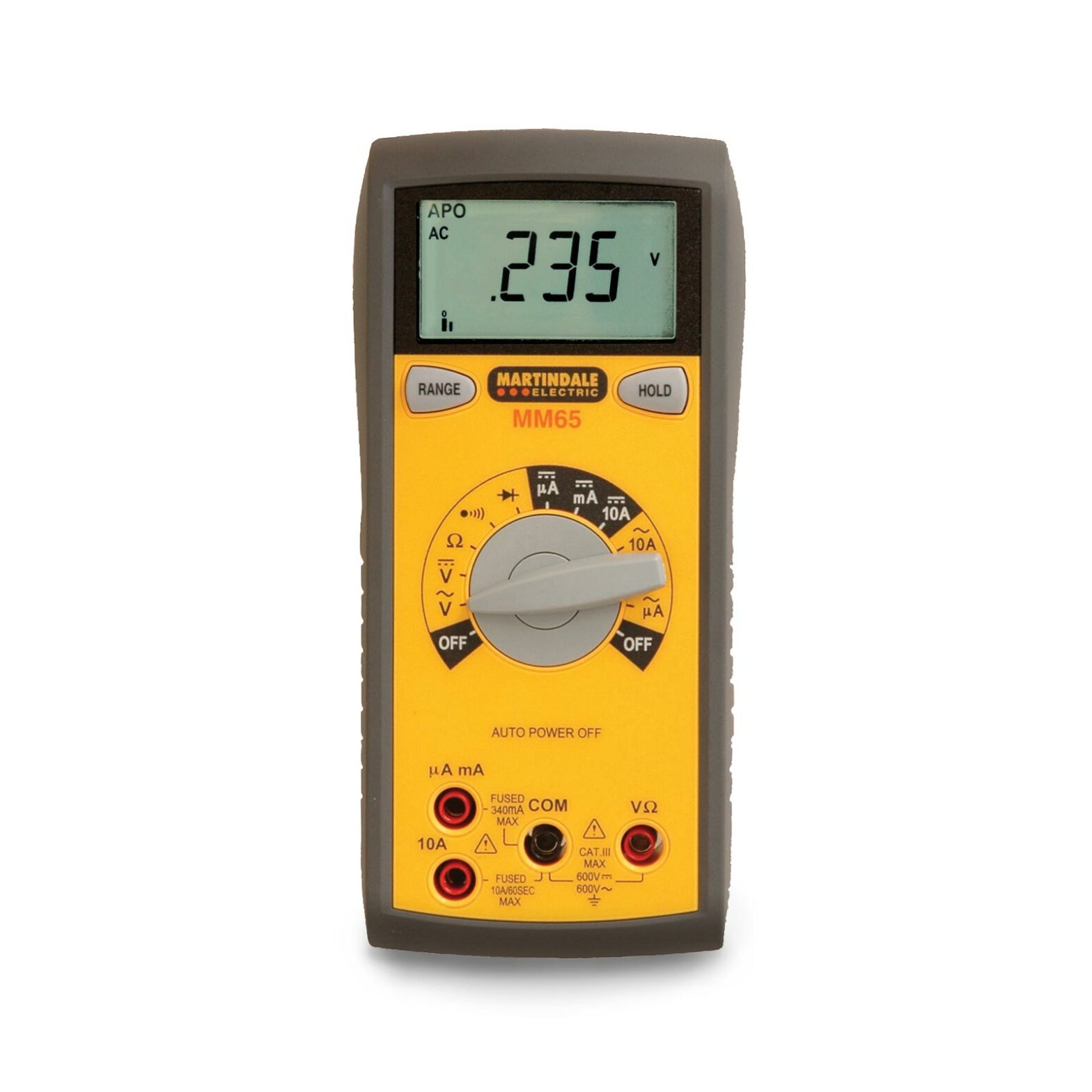

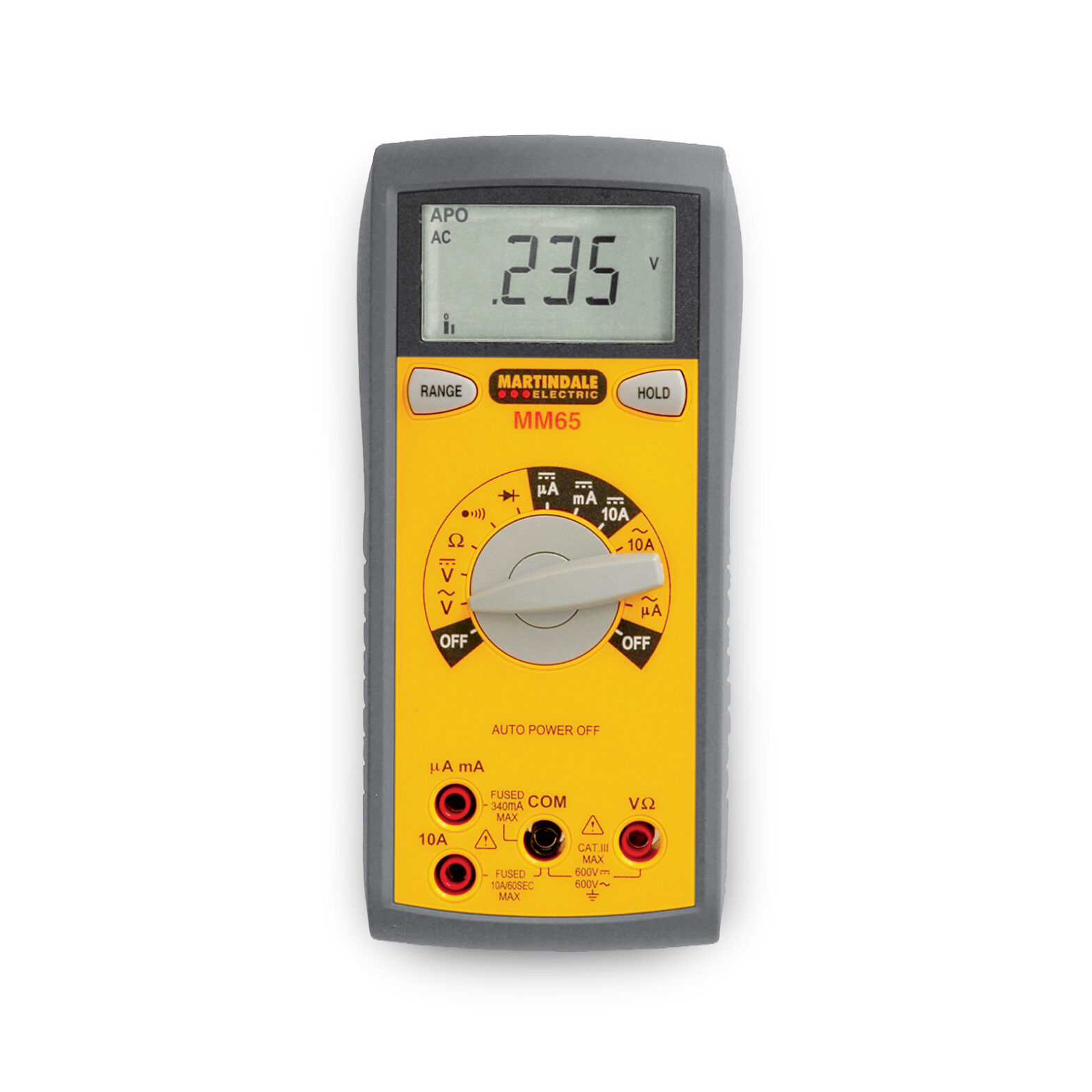

The MM65 is an auto-ranging digital multimeter that measures AC and DC voltages up to 600V, and AC and DC currents of up to 10A. It measures resistance to 34MΩ and has a diode test and an audible continuity test that sounds below 35Ω.

It has a 3¾ digit LCD screen and it will display the results as digital numerical values and on a 34 segment analogue bar graph.

The MM65 also has an auto-power off feature and an on-screen low battery indicator.

The rugged over-moulded case will protect against damage in most typical environments.

Supplied with unfused TL16 leads, spare fuse, battery and manual.

Specifications

Display 3¾ digit
Voltage AC 1mV-600V (± 2% rdg ± 5 dgt)
Voltage DC 0.1mV-600V (± 1% rdg ± 2 dgt)
Current AC 0.1µA-10A (± 2.5% rdg ± 5 dgt)
Current DC 0.1µA-10A (± 2% rdg ± 2 dgt)
Resistance 0.1Ω-34MΩ (± 1.5% rdg ± 4 dgt)
Continuity <35Ω (audible indication)
Features Diode test (3% ± 3 dgt)
Weight 285g approx.
Dimensions 165 x 78 x 42.5mm
Includes TL16 leads,1 x spare fuse, 9V battery and manual

Accessories

Comparison

 MM39MM64MM65
AC/DC Voltage
AC/DC Current
Resistance / Continuity
Diode test
Frequency
Capacitance
True RMS
Auto-ranging
Backlight
Overmoulded Holster
OtherMin/Max
Temperature
Safety ratingCAT III 600VCAT III 600VCAT III 600V

Datasheet

Download

Manual

Download

£89.00
