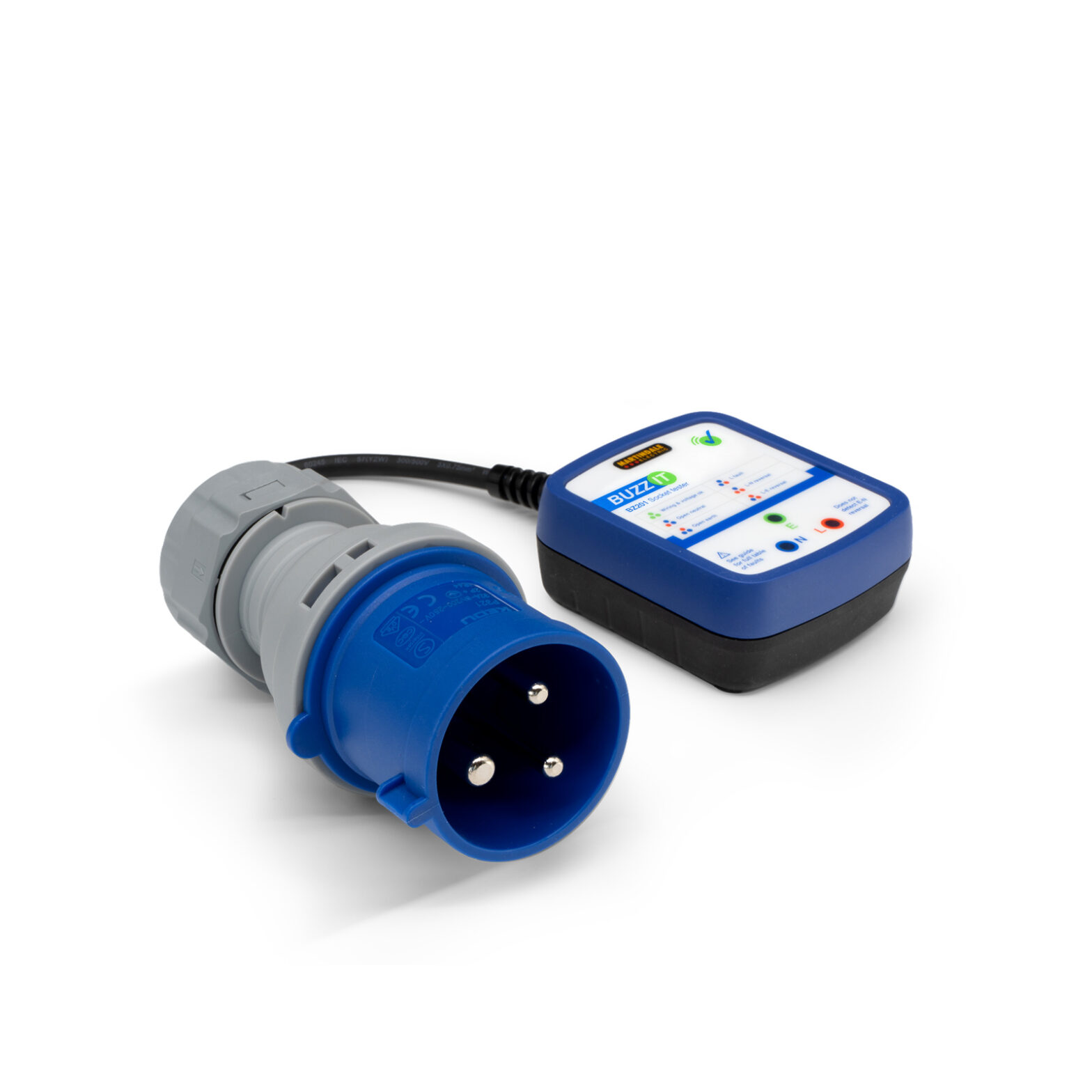

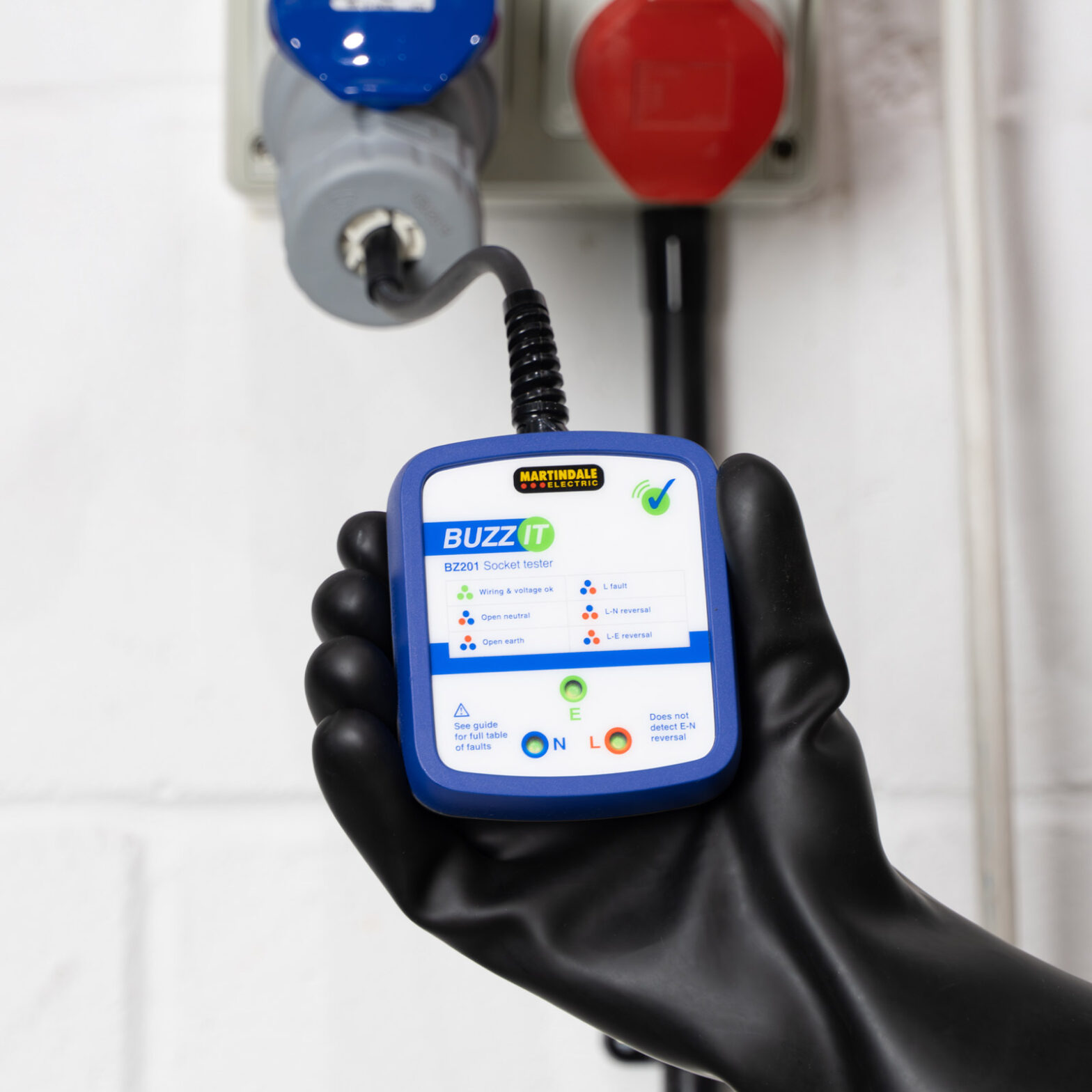

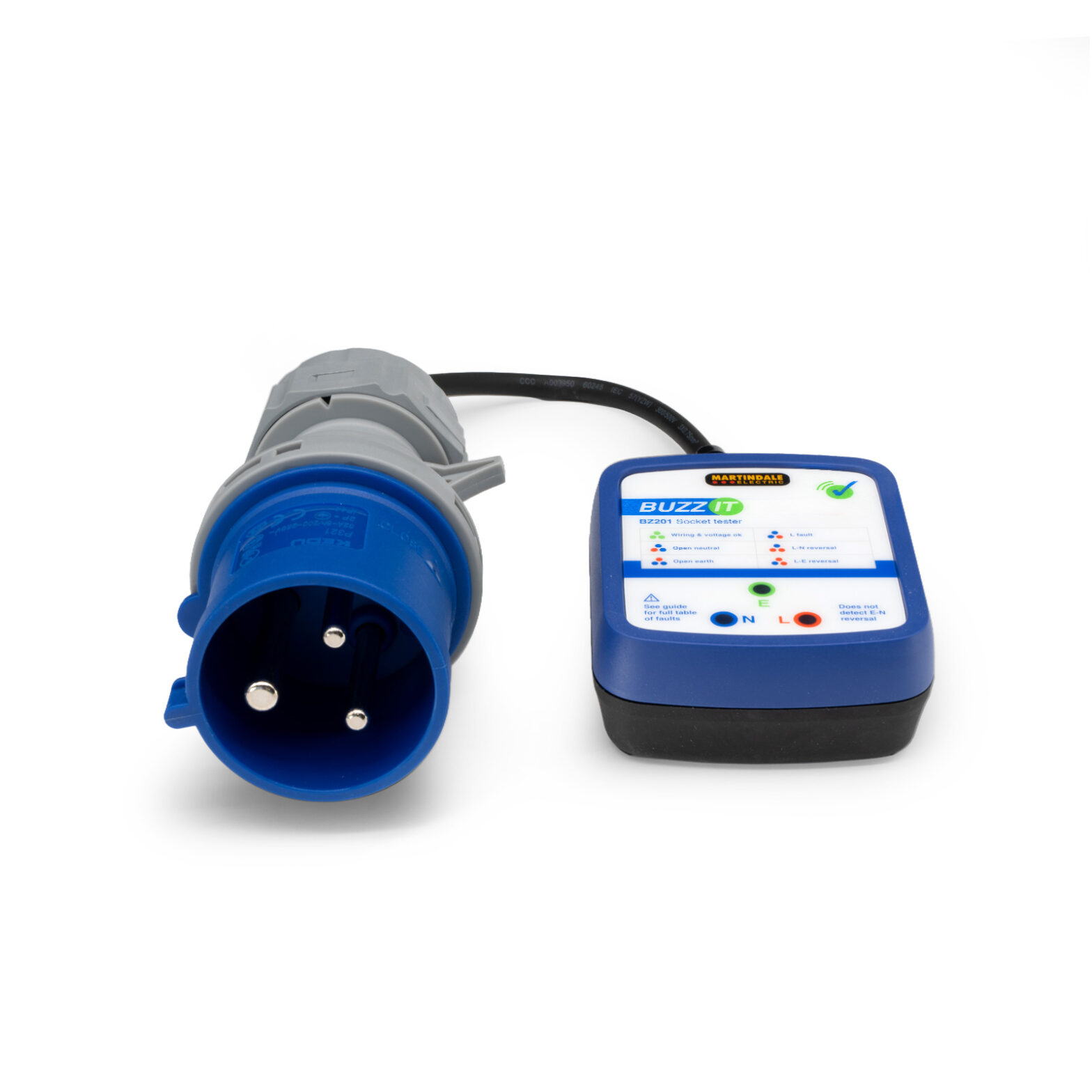

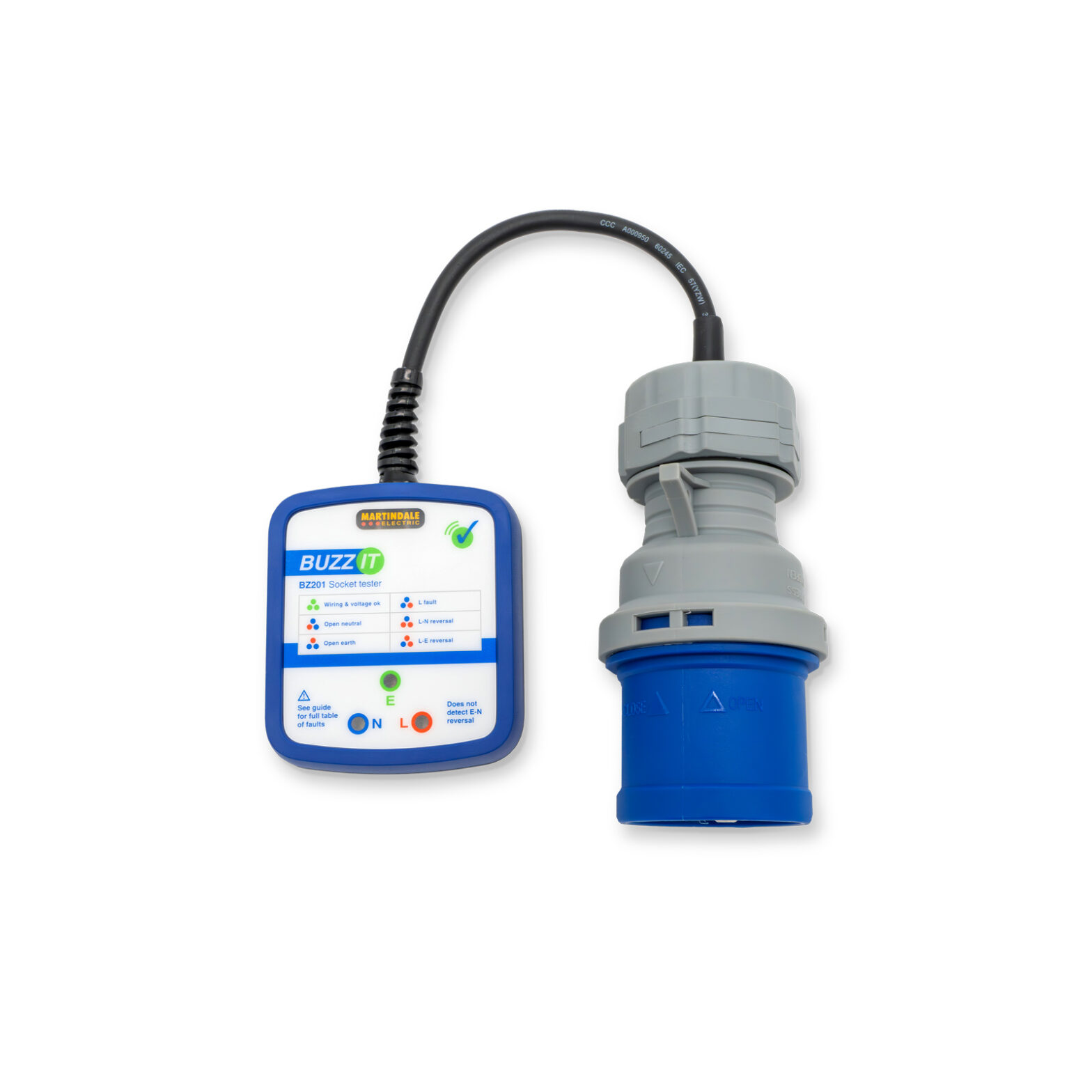

The Martindale BZ201-32 is an industrial version of the classic check plug.
Wiring faults are instantly indicated by three bright LEDs mirroring the layout of the pins in the plug, Up to 28 fault conditions can be identified through the pattern of lit LEDs.
The audible buzzer also confirms if the wiring is correct and is also ideal when checking sockets that are not easily visible or in difficult to access locations, it can also be used as a basic fuse finder. The BZ201 also checks the mains voltage level. The robust ABS moulded housing gives lasting durability and is maintenance free.
The unit is fitted with a 230V 32A plug to BS EN IEC 60309-1
Industrial socket tester
Three bright LEDs with simple fault codes
Audible indication
For use on 230V 32A sockets
Nominal operating voltage
230V AC rms
Operating frequency
50Hz
Power
From socket under test
Power consumption
<2.5W
Overvoltage
CAT III 300V
Operating environment
-10 to 40°C at max. 85% RH
Safety confirms to
BS EN 61010-1, CAT III 300V, Class II, double insulation
Dimensions
91(L) x 80(W) x 38(D)mm
Weight
195g
Warranty
2 Years
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162000478
