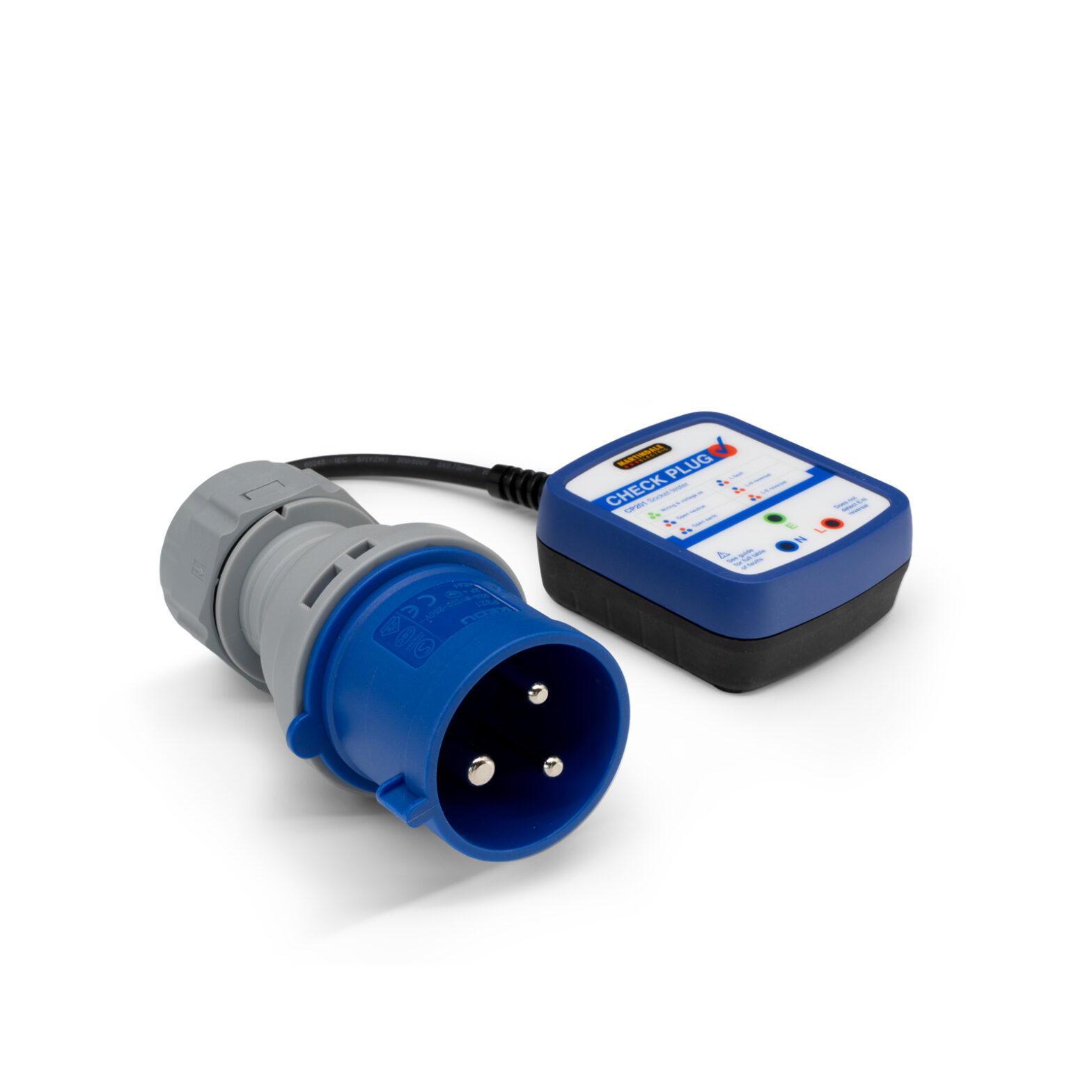

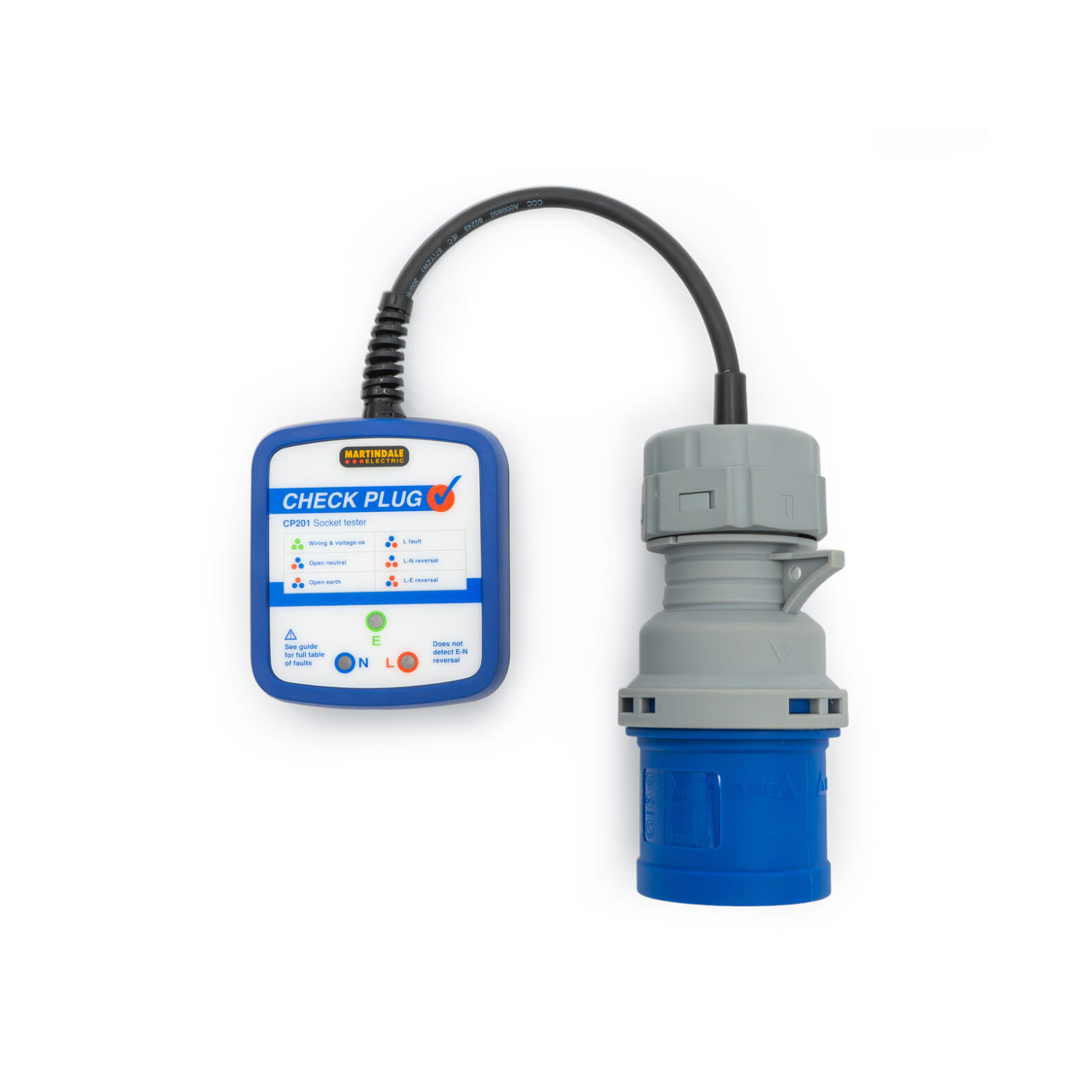

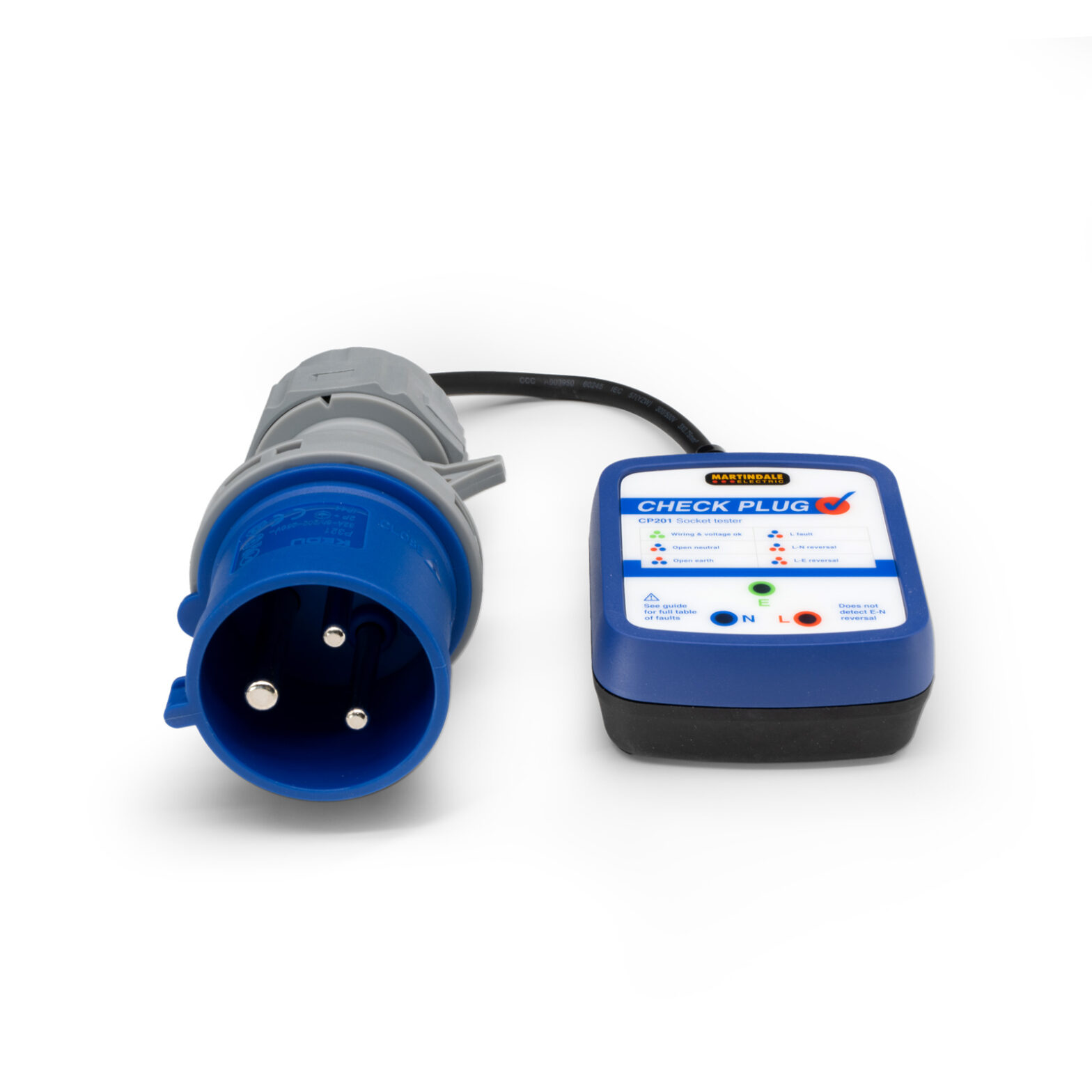

Martindale CP201 230V 32A Industrial Socket Tester

  • Test 230V 32A industrial sockets
  • Bright LEDs indicate wiring status
  • Identifies 28 fault conditions
  • Blue 32A 3 pin plug to BS EN 60309 (BS 4343)

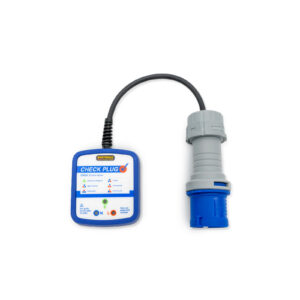

  • Available as 230V 16A version

CAT III 300V
EAN: 5036162187759 SKU: MARCP201-32 Category: Tag:

Description

The Martindale CP201 is an industrial version of the classic check plug, fitted with a 230V 32A plug (BS 4343 / IEC309).

Wiring faults are instantly indicated by one or more of the LEDs failing to illuminate, with the pattern of lit LEDs indicating the type of fault detected. There is a chart on the tester for quick fault identification.

Specifications

Operating voltage 200-250V AC 30-70Hz
Power consumption <1.8W
Overvoltage CAT III/300V
Temperature range -10 to 40°C at max, 60% RH
Supply from mains
Open Earth If earth resistance >50kΩ nom at 230VAC nom
Open Neutral If neutral resistance >50kΩ nom at 230VAC nom
Complies with BS EN 61010-1
Dimensions 65 x 65 x 47mm (check plug body)
Weight 195g approx.
Includes manual
Warning Like all other standard socket testers, these units cannot detect common earth and neutral or earth neutral reversal.

Datasheet

Download

Manual

Download

£62.00
