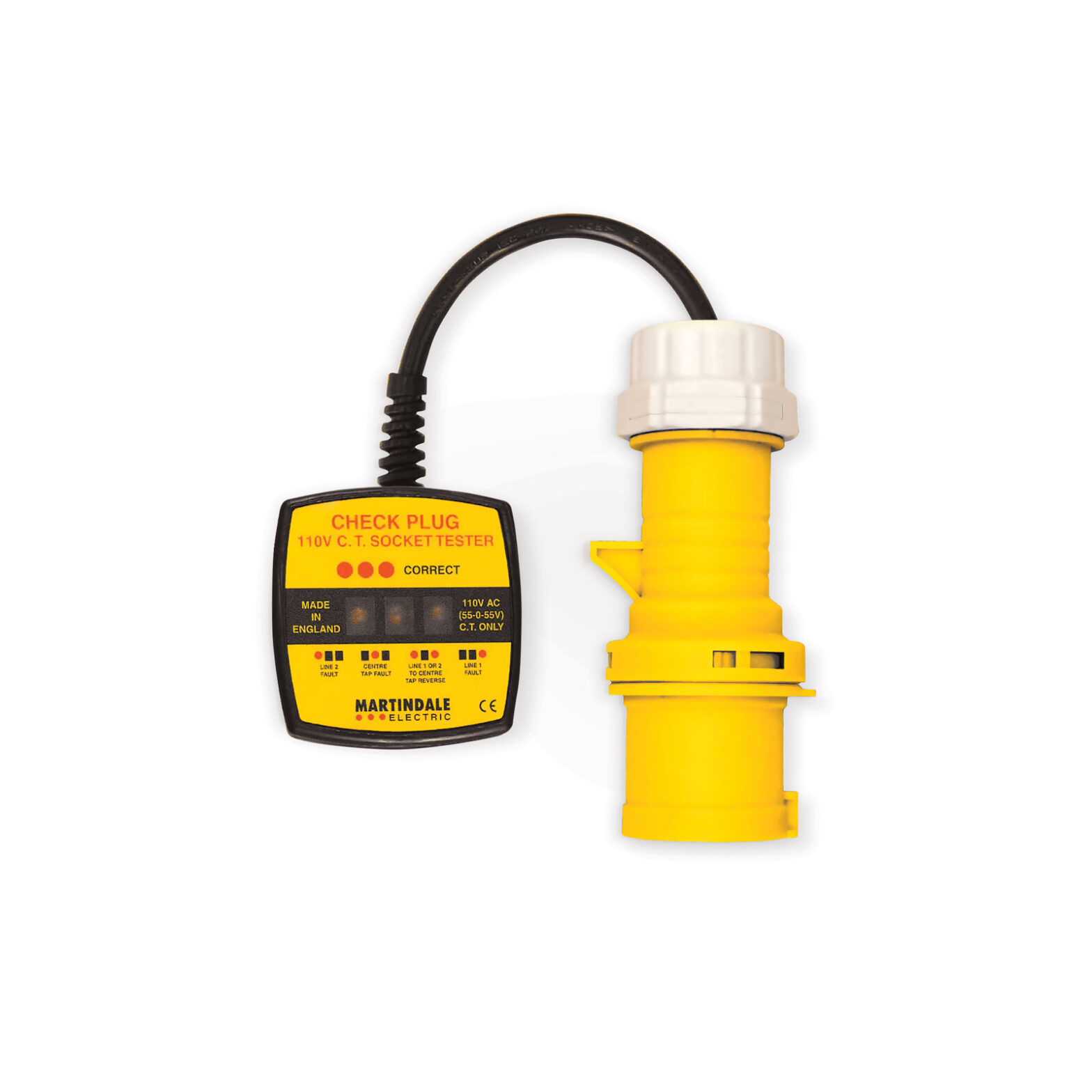

Martindale CP301 110V 16A Industrial Socket Tester

  • 110V centre tapped industrial socket tester for 16A supplies
  • Bright LED indication of wiring status
  • Identifies 7 fault conditions
  • Yellow 16A 3 pin plug to BS EN 60309 (BS 4343)

CAT II 150V
EAN: N/A SKU: MARCP301 Category: Tag:

Description

The Martindale CP301 is an industrial socket tester used for instantly checking sockets on 110V centre tapped circuits.

It is fitted with a yellow 110V 16A CT plug to BS 4343/IEC60309 and provides a similar fail-safe LED indication to the classic check plug.

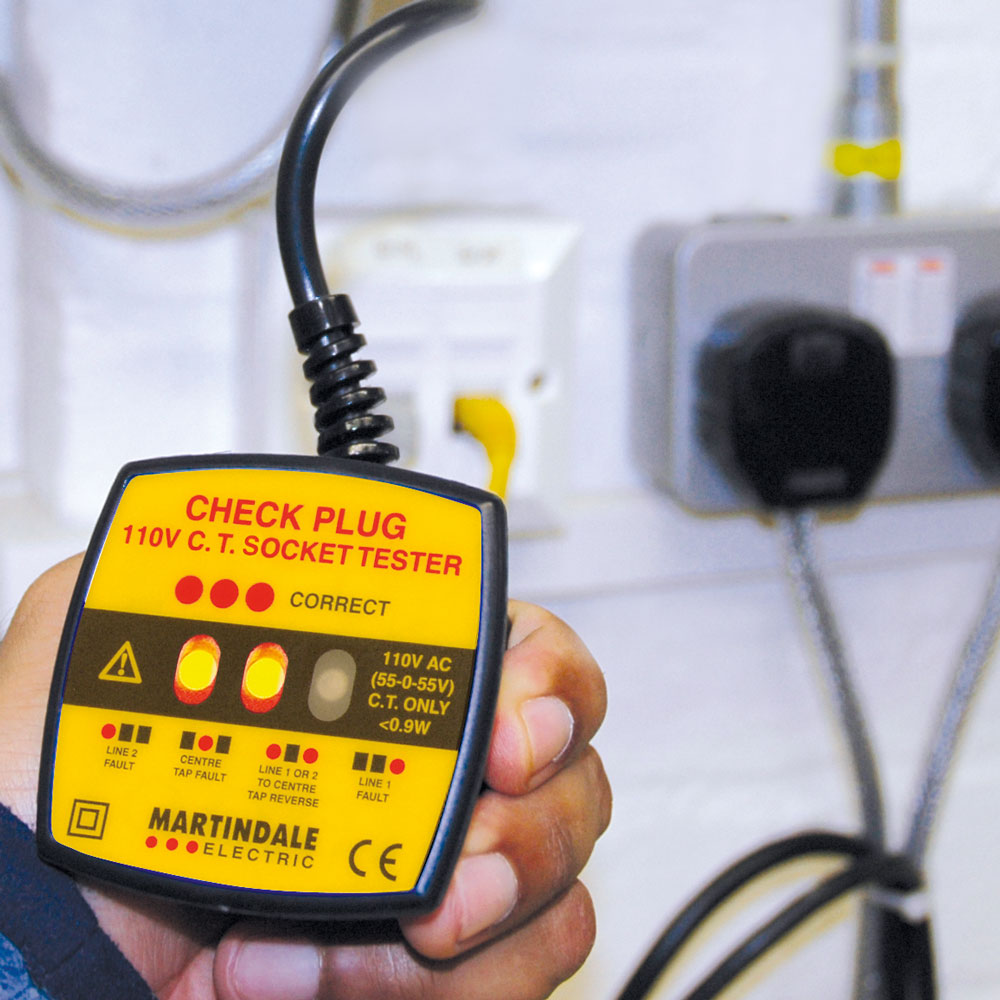

Using bright LEDs to highlight possible fault combinations, the CP301 is invaluable for instantly verifying sockets on industrial or site installations.

There is a look up chart on the tester for fast and simple fault diagnosis.

Specifications

Operating voltage 110V AC (55-0-55V centre tapped only)
Operating current 30mA
Overvoltage CAT II/150V
Temperature range -10 to 40°C at max, 60% RH
Complies with BS EN 61010-1
Dimensions 65 x 65 x 47mm (check plug body)
Weight 195g approx.
Includes manual

Datasheet

Download

Manual

Download

£48.00
