Martindale VT25 Voltage Indicator

  • 12 – 690V AC/DC
  • Single pole phase test 90-690V
  • Phase rotation test 100-690V
  • Continuity – optical and acoustic indication
  • Auto power off
  • White LED torch light

CAT III 1000V CAT IV 600V
SKU: MARVT25 Category: Tags: ,

Description

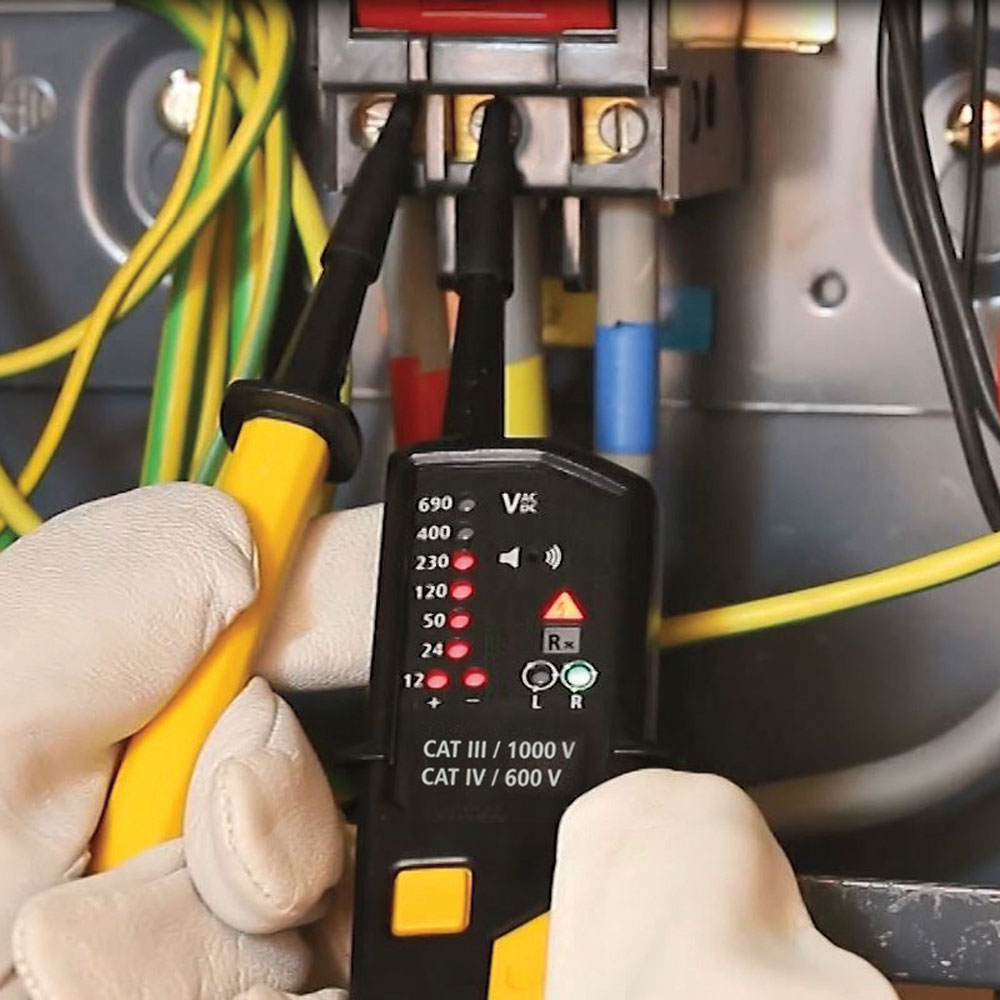

The Martindale VT25 is a tough, compact two pole tester for measuring AC/DC voltages from 12V to 690V. Additional capabilities include continuity and phase rotation testing plus single pole voltage detection.

The AC/DC voltage detection, continuity and phase rotation functions all have bright LED indication. Auto power-off ensures a long battery lifetime.
The voltage indicator conforms to all the latest safety standards and includes removable probe caps for GS38 compliance. Additional safety features include a 1.2m double insulated cable with a black outer and contrasting inner core to give a visual warning of any damage.

A built-in white LED torch makes it easy to use in low light environments.

Key features:

  • AC/DC LED voltage indication 12-690V
  • Continuity – LED & buzzer
  • Single pole phase test 90-690V
  • Phase rotation test 100-690V
  • White LED torch light
  • BS EN61243-3 & GS38 compliance

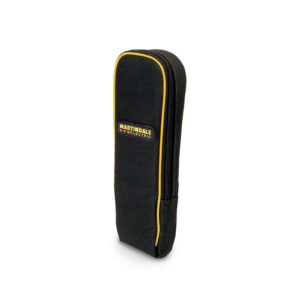

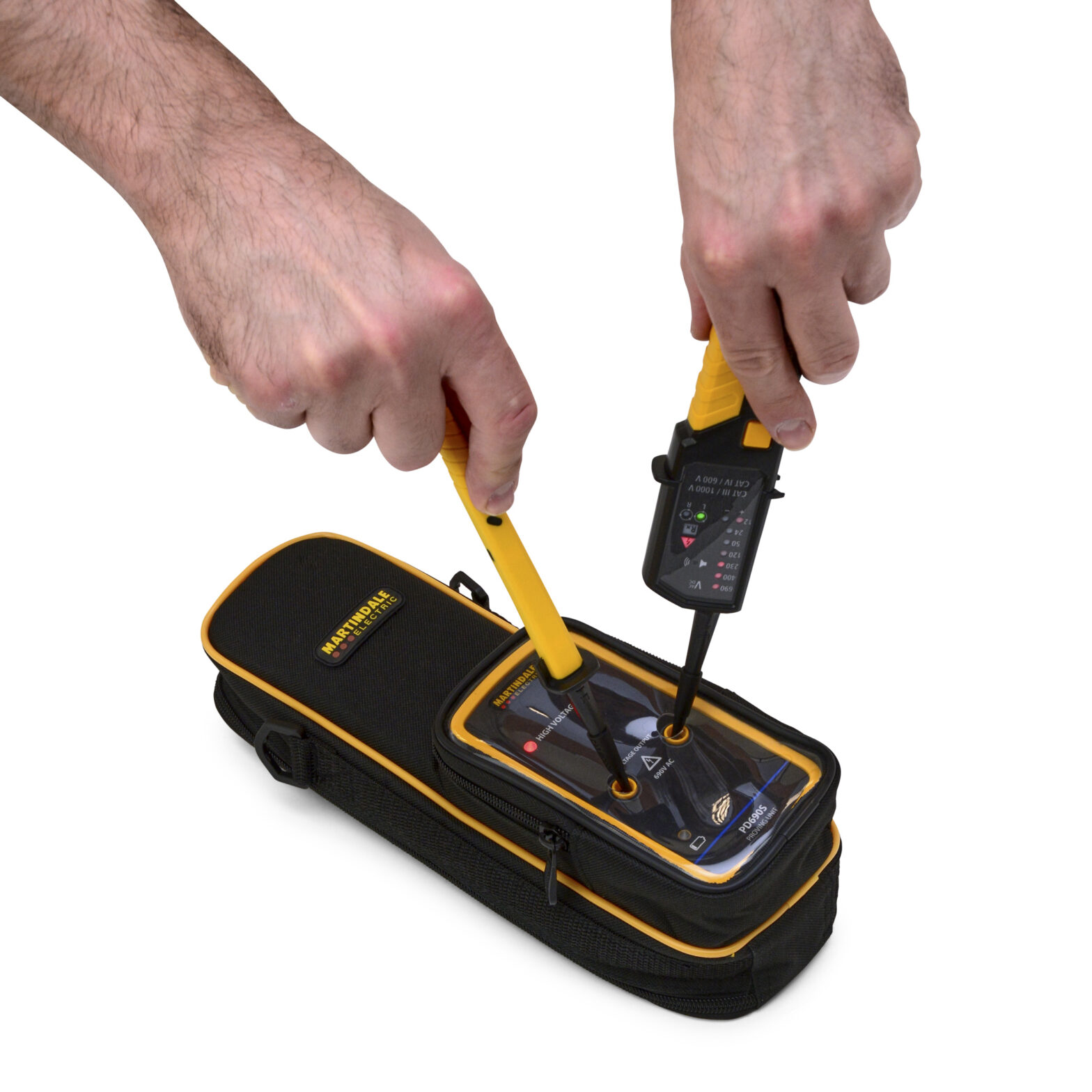

Available accessories include a soft carry case for just the tester, a matched proving unit and a combination carry case for both. The TC70 carry case enables the VT25 to be proved without having to unpack the PD690 and ensures the tester and proving unit are always to hand, making compliance with Electricity at Work Regulations straight forward.

The VT25, PD690 and TC70 carry case are available in a complete kit, the VT25PD.

Specifications

Voltage range 12-690V DC/AC (16-400Hz)
LED indication ± 12, 24, 50, 120, 230, 400, 690V
Single Pole Phase Test 100-690V, 50-60Hz
Phase Rotation Test 120-400V, 50-60Hz
Continuity Range 0-500kΩ
GS38 caps removable
Complies with BS EN 61243-3 2014
Cable length 1.2m
IP rating IP64
Features Auto power off
Torch light White LED
Supply 2 x 1.5V AAA
Weight 130g (with batteries)
Dimensions 205 x 67 x 27mm
Includes battery and manual

Accessories

Comparison

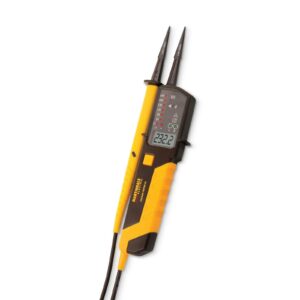

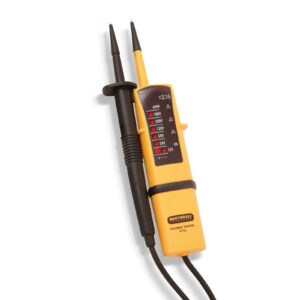

 VT12VT25VT28
LED Voltage Indication12-690V AC/ DC12-690V AC/ DC12-690V AC/ DC
LED + LCD Voltage Indication10V-690V (DC, 16Hz-400Hz)
Continuity (LED + Buzzer)
Phase Rotation
Single Pole Test
LED Torch
PD690 Proving Unit
Combination Carry Case
Safety RatingCAT III 600V
CAT IV 300V
CAT III 1000V
CAT IV 600V
CAT III 1000V
CAT IV 600V
GS38 Compliance

Datasheet

Download

Manual

Download

£56.00
