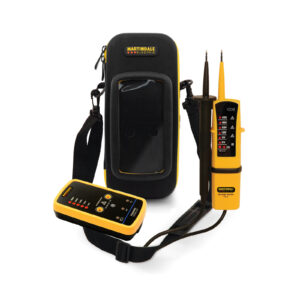

The VT12 is a two-pole voltage indicator and continuity tester with automatic AC / DC detection up to 690V and continuity testing with optical and acoustic indication up to 500k Ohms.
The bright LED indicators provide an immediate display of the voltage range and the VT12 is supplied with probe caps for GS38 compliance.
It is ergonomically designed and durable enough for both industrial and domestic use. Constructed in accordance with the latest safety standards
LED indication
Durable for both industrial & domestic use
GS38 compliant
CAT III 690V, CAT IV 300V safety rating
Voltage range:
12-690V AC/DC
LED indication:
±12, 24, 50, 120, 230, 400, 690V
AC/DC voltage detection:
Automatic
Range detection:
Automatic
Frequency range:
DC, 0-65Hz
Continuity test:
optical/acoustic
Continuity range:
200kΩ
GS 38 caps:
Removable
Complies with:
BS EN 61243-3 2014
Dimension:
205 x 67 x 27mm
Warranty
2 Years
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162185595
| VT12 | VT25 | VT28 | |
|---|---|---|---|
| LED Voltage Indication | 12-690V AC/ DC | 12-690V AC/ DC | 12-690V AC/ DC |
| LED + LCD Voltage Indication | 10V-690V (DC, 16Hz-400Hz) | ||
| Continuity (LED + Buzzer) | ✔ | ✔ | ✔ |
| Phase Rotation | ✔ | ✔ | |
| Single Pole Test | ✔ | ✔ | ✔ |
| LED Torch | ✔ | ✔ | |
| PD690 Proving Unit | |||
| Combination Carry Case | |||
| Safety Rating | CAT III 690V CAT IV 300V | CAT III 1000V CAT IV 600V | CAT III 1000V CAT IV 600V |
| GS38 Compliance | ✔ | ✔ | ✔ |
