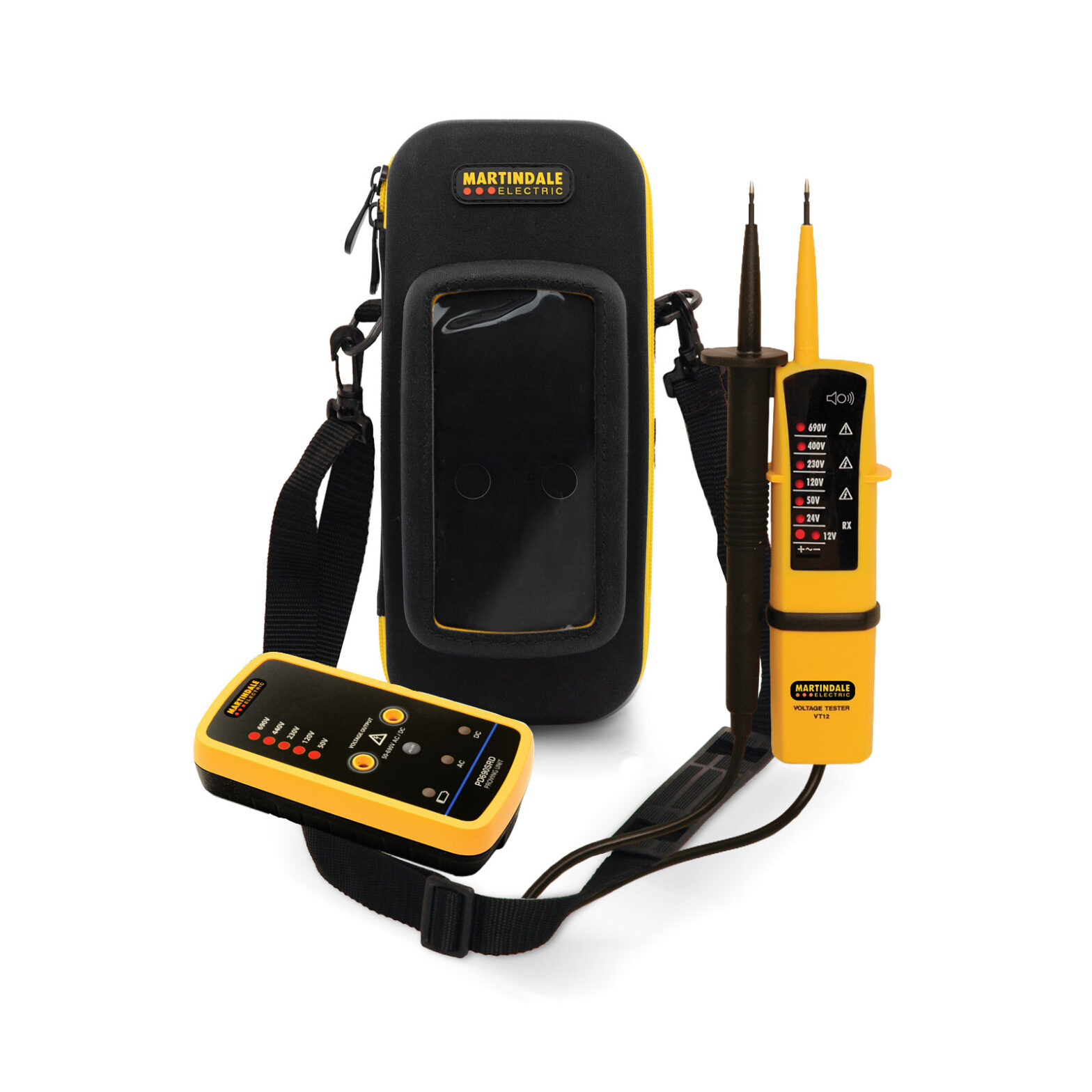

Martindale VT12PD-S Voltage Tester & Proving Unit Kit

  • GS38 compliant
  • Low cost
  • Measures 12-690V
  • Includes Audible Continuity Test
  • Heavy denier carry case

CAT III 690V CAT IV 300V
EAN: 5036162000201 SKU: MARVT12PD-S Category: Tags: ,

Description

The VT12PD-S Voltage Indicator and Proving Unit fully meets the requirements of GS38 and Proving Dead procedures. The tips of the probes on the VT12 are shrouded to meet GS38 standards and can be removed temporarily for access to deep or difficult to reach test points.

The tester will display voltages between 12v and 690v and voltage levels are indicated by bright LED’s. The continuity Test (with buzzer) function makes the VT12 very useful in many diagnostic applications too.

The VT12 should be proved before and after use, using the PD690S which is housed in the tailor-made carry case. Holes in the transparent panel allow access to the test points on the proving unit which means it can always remain in the carry case. A shoulder strap on the carry case offers convenience and protection when not in use.

Comparison

 VT12PD-SVT25PD-SVT28PD-S
LED Voltage Indication12-690V AC/ DC12-690V AC/ DC12-690V AC/ DC
LED + LCD Voltage Indication10V-690V (DC, 16Hz-400Hz)
Continuity (LED + Buzzer)
Phase Rotation
Single Pole Test
LED Torch
Proving UnitPD690SPD690SPD690S
Combination Carry Case
Safety RatingCAT III 690V
CAT IV 300V
CAT III 1000V
CAT IV 600V
CAT III 1000V
CAT IV 600V
GS38 Compliance

Datasheet

Download

£171.00
