Martindale VI-15000 Voltage Indicator

  • Supply powered AC/DC voltage indicator, no batteries required
  • Extended voltage range to 1000V with bright LED indication
  • Safety category CAT IV 1000V
  • GS38 and BS EN61243-3 compliant
  • Heavy duty double insulated leads
  • Polarity Indication

CAT III 1000V CAT IV 1000V
SKU: MARVI15000 Category: Tags: ,

Description

The VI-15000 extends Martindale’s range of industry standard voltage indicators into higher voltage applications.

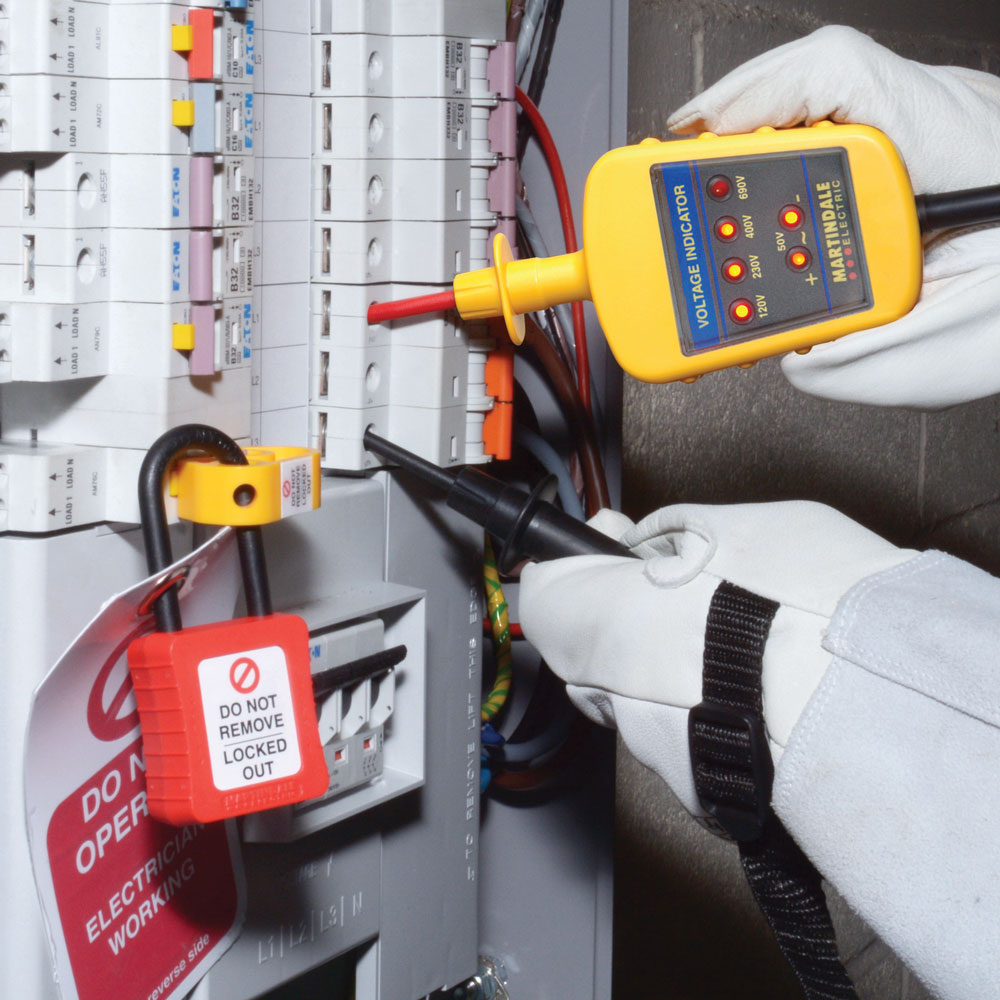

The new VI-15000 has a 1000V CATIV safety rating and LED indication for AC/DC voltages from 50V to 690V and above, ensuring compliance with health and safety recommendations for safe working in all BS EN61010 installation categories. It’s the simplest and most reliable way to ensure circuits have been de-energised and properly isolated prior to maintenance and modifications.

Based on the industry endorsed VI3800, the new CATIV design not only provides improved protection against voltage transients, but also includes a high wattage resistor that will limit the current in the event of damage to the cable in accordance with BS EN61243-3. The protection is built in where it’s needed, in the handheld probe assembly rather than just in the instrument providing superior protection for the user to other testers.

Fully compliant with HSE GS38 regulations, the VI-15000 comes complete with heavy duty two layer double insulated leads with a contrasting inner sheath to easily highlight cable damage. The tester features bright LEDs to clearly identify the voltage present in five levels with thresholds of up to 690V. The indicator, which requires no batteries, will identify both AC and DC sources and show polarity.

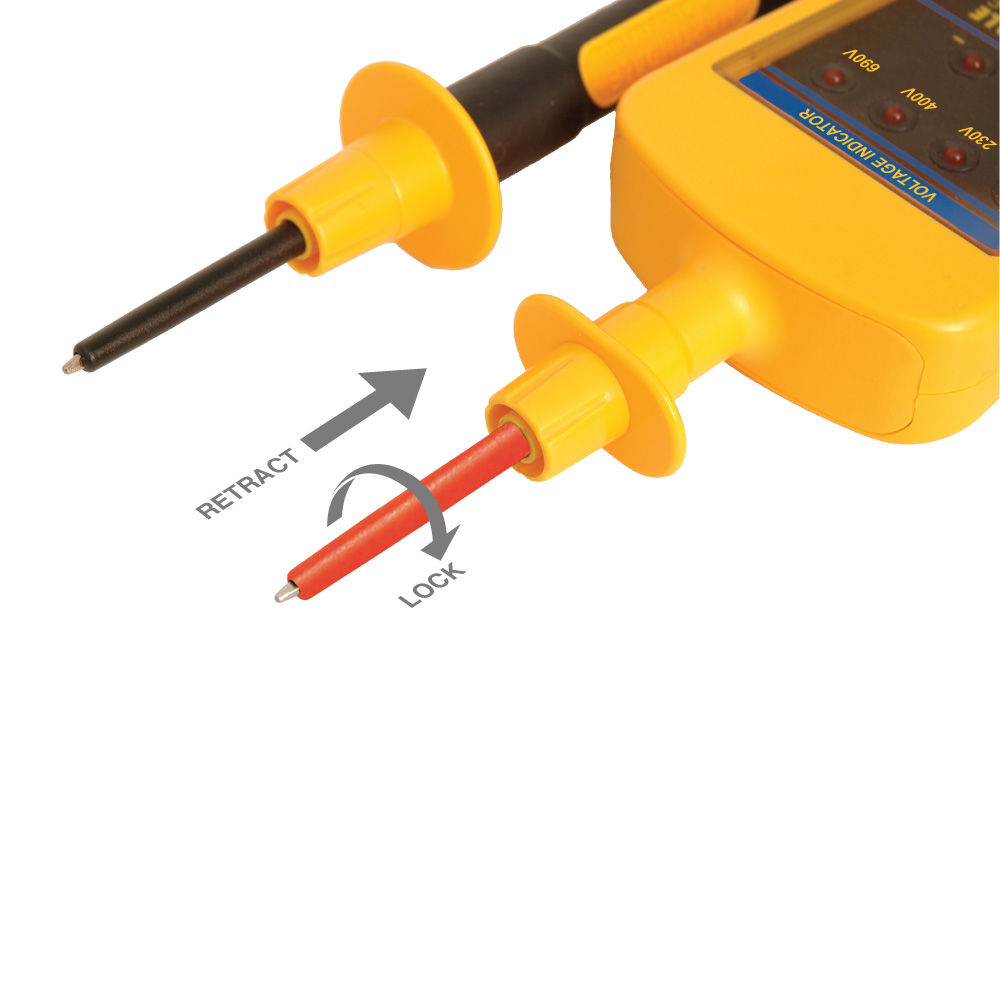

The heavy duty, double insulated cable, large finger guard and a retractable, lockable prod sheath make this the safest, most durable and reliable instrument of its type.

Designed in Martindale’s distinctive yellow casing with a clear blue label, to make it easily distinguishable from the existing lower voltage VI13800, the new VI-15000 is available to purchase on its own or as part of a kit containing everything you need for on-site working. Kits includes a high voltage Martindale proving unit, combination carry case and locking off devices, enabling full compliance with health and safety recommendations for safe working which require voltage indicators to be proved before and after use and the point of isolation to be locked off with a caution notice.



Video

Specifications



Voltage range 50 – 1000V DC/AC rms
LED Indication ± 50, 120, 230, 400, 690 V DC/AC rms
AC/DC voltage detection automatic
Range detection automatic
Response time <0.1s
Frequency range DC, 1 – 400 Hz
Test current <3.5mA at 1000V DC/AC rms
Duty ratio 30s ON/240s OFF
Temperature range -10°C to 55°C ≤ 85% RH
IP rating IP54
Supply from circuit under test
Weight 130g approx
Dimensions 205 x 67 x 27mm
Complies with BS EN 61243-3

GS38

CAT IV 1000 V

Class II double insulation

Accessories

  • Martindale LOKKIT1 Comprehensive Lock Out Kit

    Includes 7 different locking devices for simple fitting to MCBs, RCBOs and fuse holders.

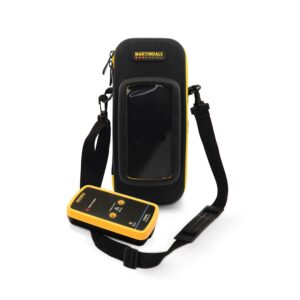

  • Martindale PD690 700V AC Proving Unit

    • Safely and simply proves the operation of voltage indicators and test lamps
    • Essential for implementing effective safe isolation procedures
    • 700V industry leading proving unit for all low and high impedance testers
    • Long battery life time with low battery indicator
    • Optional in-car & mains power supplies available
  • Martindale TC69 VIPD Soft Carry Case

    Combination soft carry case for the Martindale VT12, VI13800, VI-15000 and the PD440 or PD690.
    265 x 100 x 100mm.

Comparison

 VI-13800VI-15000
Self Powered
AC/DC Voltage Indication
Polarity Indication
50/100/200/400V Thresholds
50/120/230/400/690V Thresholds
Non Fused Protection
Retractable Probe Shrouds
SafetyCAT IV 600VCAT IV 1000V
