Martindale VIPD150-S Voltage Indicator & Proving Device Kit

  • 50V – 1000V AC/DC
  • Polarity & Voltage indication 50V
  • Heavy duty double insulated cable with contrasting inner core to reveal any damage
  • Bright LED AC/DC voltage and polarity indication
  • GS38 and BS EN61243-3 compliant
  • 690V industry leading proving unit for all low and high impedance testers

CAT III 1000V CAT IV 1000V
EAN: 5036162000140 SKU: MARVIPD150-S Category: Tags: ,

Description

Nothing is more dangerous than trusting a defective voltage indicator to test for a dead circuit. Safe electrical work requires the use of a voltage indicator that has been proved with a proving device before and after use.

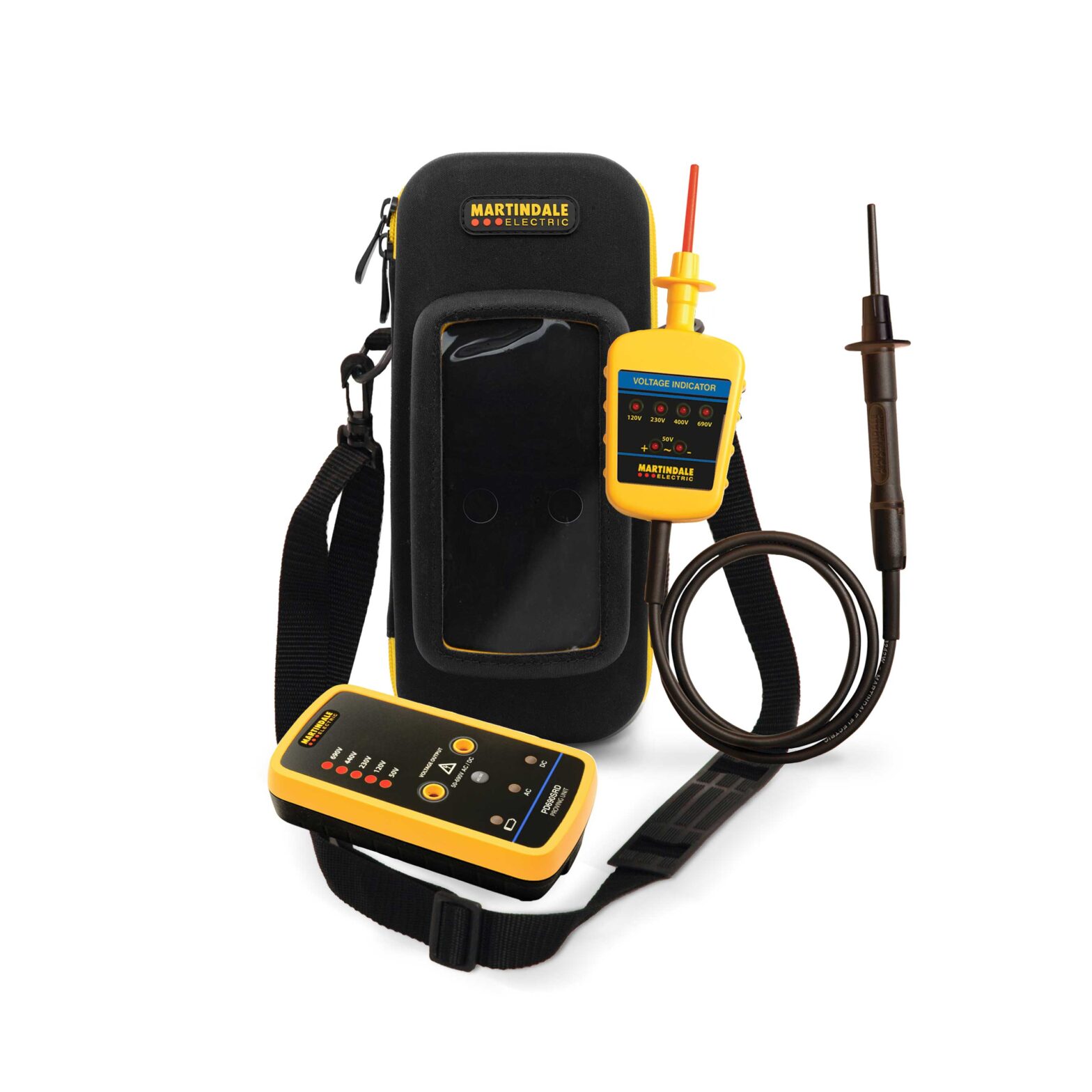

The Martindale VIPD150-S contains the VI-15000 voltage indicator and the PD690S proving device, enabling you to comply with health and safety recommendations for safe working.

The VI15000 has a 1000V CAT IV safety rating and LED indication for AC/DC voltages from 50V to 690V and above, ensuring compliance with health and safety recommendations for safe working in all BS EN61010 installation categories. It’s the simplest and most reliable way to ensure circuits have been de-energised and properly isolated prior to maintenance and modifications.

Based on the industry endorsed VI-13800, the new CAT IV design not only provides improved protection against voltage transients, but also includes a high wattage resistor that will limit the current in the event of damage to the cable in accordance with BS EN61243-3. The protection is built in where it’s needed, in the handheld probe assembly rather than just in the instrument providing superior protection for the user to other testers.

The heavy duty, double insulated cable, large finger guard and a retractable, lockable prod sheath make this the safest, most durable and reliable instrument of its type. The new design complies with the requirements of the latest edition of GS38, Edition 4 2015.

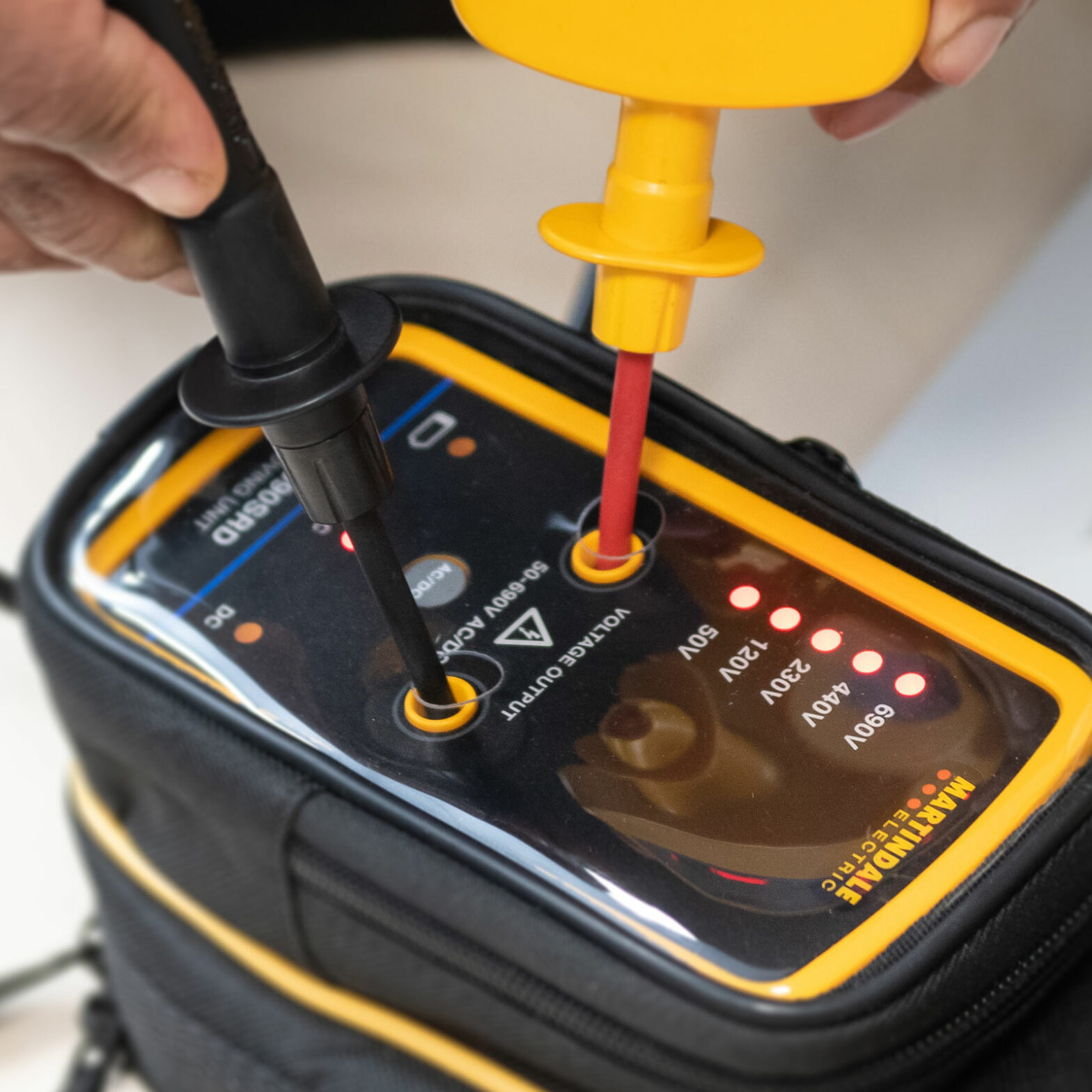

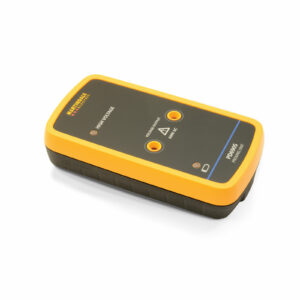

The PD690S proving device produces 700V AC/DC to enable voltage indicators and other devices with ranges up to 700V to be checked. The kit is supplied with a combination carry case for both VI and PD products to ensure the proving unit is always to hand. For convenience and to save time, the proving unit can be used without having to remove it from the case.



Video

Specifications

The full 3 piece kit includes:
PD690S Proving device
VI-15000 Voltage indicator
TC71 Soft carry case

Accessories

Comparison

 VIPD150-SVIPLOK150-SVIPDLOKPRO150-S
VI-15000 Voltage Indicator
PD690S Proving Unit
TC69 Combination Carry Case

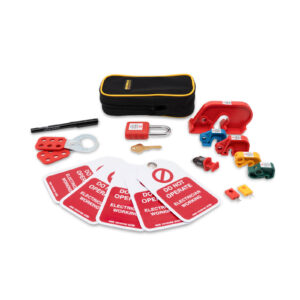

LOKKIT1 12 Piece Kit
LOKKITPRO 17 Piece Kit

Datasheet

Download

Manual

Download

£206.00
