Drummond SMKIT20 smart meter installation kit

  • Enables safe working practices during installation
  • CAT IV rated
  • Drummond MTL20 dual impedance test lamp
  • Proving device & high resolution non-contact voltage indicator
  • Single pole tester for use with PPE
  • Buzz-it for socket wiring test
  • Combination carry case

EAN: 5036162187643 SKU: MARSMKIT20 Category:

Description

The complete solution to enable safe working practices during the installation of Smart Meters. The SMKITs contain all the test tools needed to ensure safe isolation procedures can be implemented during the installation process.

The comprehensive kits include, a Buzz-It check plug for checking the wiring on 13A sockets (SMKIT10 & SMKIT20 only), a non-contact voltage indicator with probe tip for identifying phase and neutral lines and a single pole contact voltage tester suitable for use when wearing protective gloves and gauntlets. For CAT IV supply side safe isolation testing there is a Drummond test lamp with proving unit. A soft carry case is included for the whole kit.

The latest Drummond Test Lamps use high intensity LEDs to display discrete voltage levels over a 360 degree viewing angle, even in bright sunlight, making them the most reliable solution for identifying hazardous voltages. The MTL20 included in SMKIT20 has the additional benefit of a dual impedance function. The low impedance is useful for meter testing during the installation process and differentiating between potentially harmless phantom voltages and hazardous live voltages.

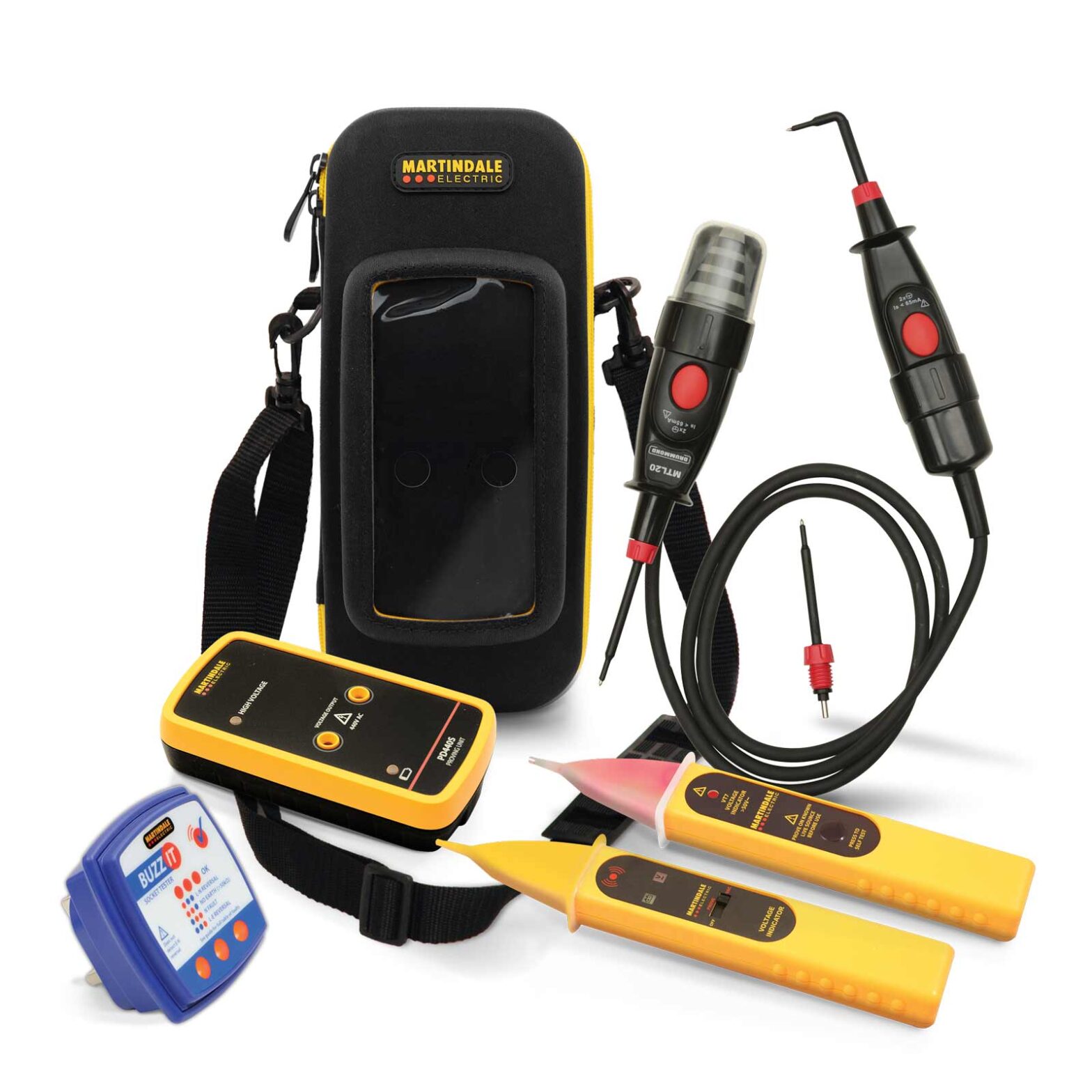

SMKIT20 includes:

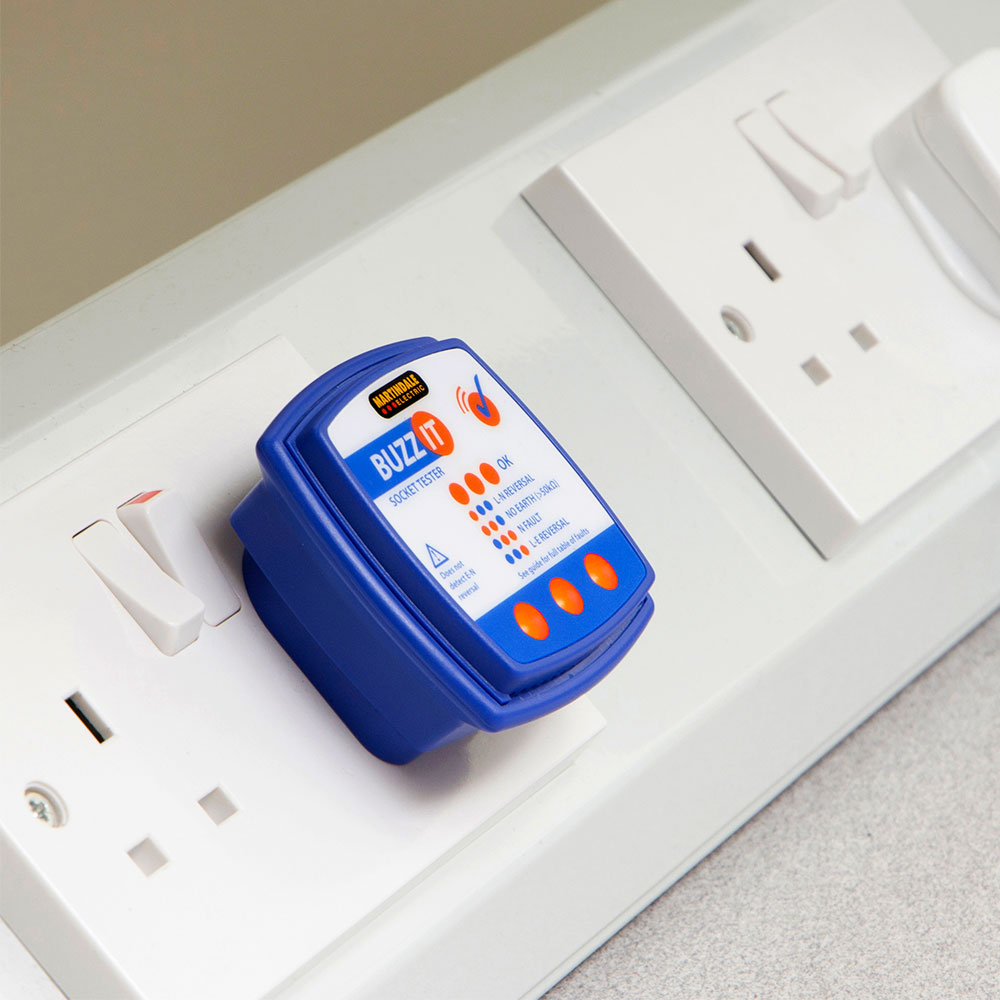

1 x BZ101 – Buzz-It Check Plug with Sounder for UK 13A Sockets (SMKIT10 only)
1 x TEK101 – Non-contact voltage indicator with built in proving device
1 x VT7 – Single Pole Contact Voltage Tester suitable for use when wearing PPE
1 x MTL20 – Drummond AC/DC Dual Impedance Test Lamp CAT IV 600V
1 x PD440 – Proving Device
1 x TC70 – Combination soft carry case

Smart meter installations kits available from Martindale
SMKIT5 supplied with Drummond MTL10 (excludes Buzz-It BZ101)
SMKIT10 supplied with Drummond MTL10 and Buzz-It BZ101
SMKIT20 supplied with Drummond MTL20 and Buzz-It BZ101

Datasheet

Download

£283.00
