Drummond SMKIT10 smart meter installation kit

  • Enables safe working practices during installation
  • CAT IV rated
  • Includes Drummond MTL10 test lamp, proving device & voltage indicator
  • Single pole tester for use with PPE
  • Buzz-it for socket wiring test
  • Combination carry case

SKU: MARSMKIT10 Category:

Description

The complete solution to enable safe working practices during the installation of Smart Meters. The SMKITs contain all the test tools needed to ensure safe isolation procedures can be implemented during the installation process.

The comprehensive kits include, a Buzz-It check plug for checking the wiring on 13A sockets (SMKIT10 only), a non-contact voltage indicator with probe tip for identifying phase and neutral lines and a single pole contact voltage tester suitable for use when wearing protective gloves and gauntlets. For CAT IV supply side safe isolation testing there is a Drummond MTL10 test lamp with proving device. A soft carry case is included for the whole kit.

The latest Drummond Test Lamps use high intensity LEDs to display discrete voltage levels over a 360 degree viewing angle, even in bright sunlight, making them the most reliable solution for identifying hazardous voltages.

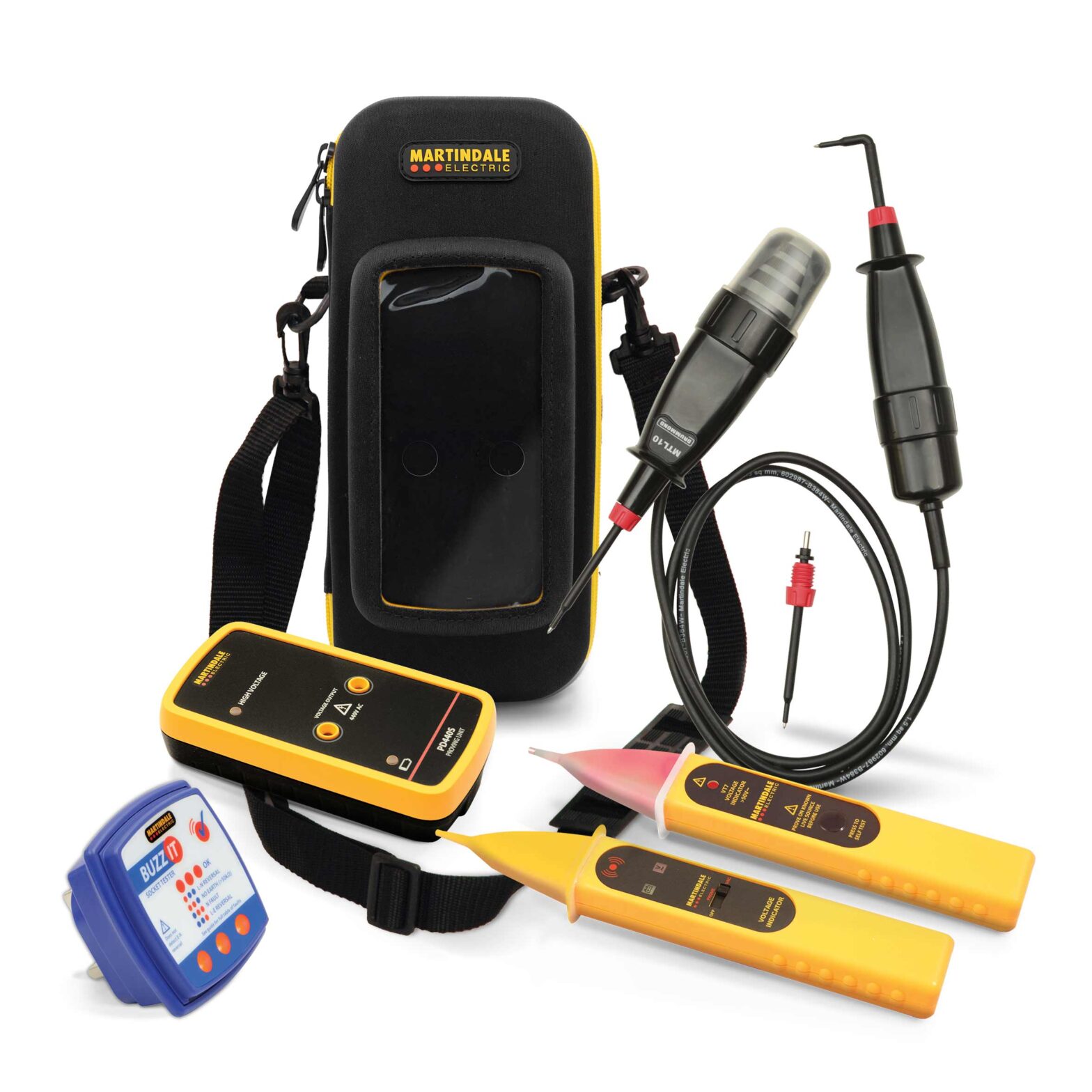

SMKIT10 includes:
1 x BZ101 – Buzz-It Check Plug with Sounder for UK 13A Sockets (SMKIT10 only)
1 x TEK101 – Non-contact voltage indicator with built in proving device
1 x VT7 – Single Pole Contact Voltage Tester suitable for use when wearing PPE

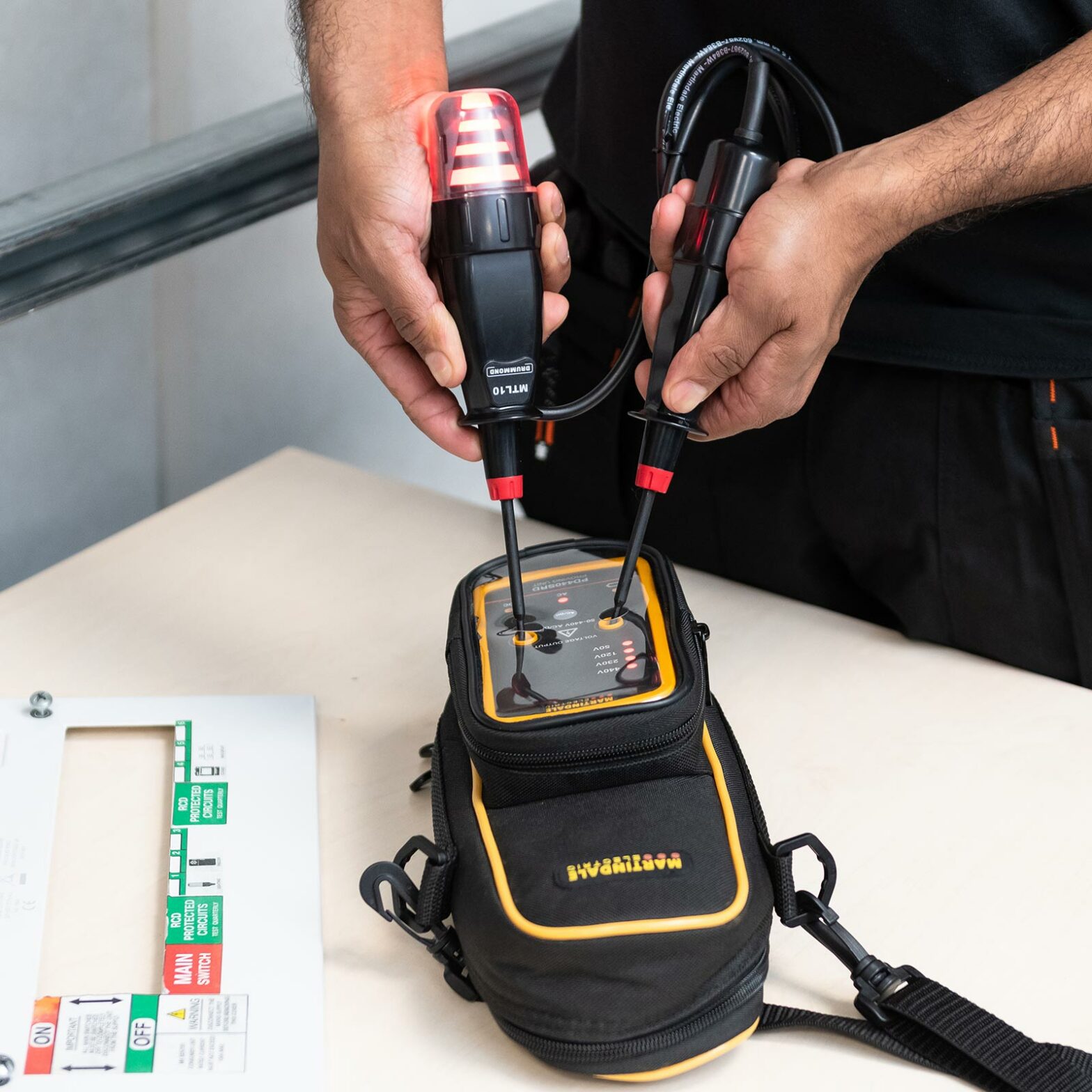

1 x MTL10 – Drummond AC/DC Test Lamp CAT IV 600V
1 x PD440 – Proving Device
1 x TC70 – Combination soft carry case

Smart meter installations kits available from Martindale

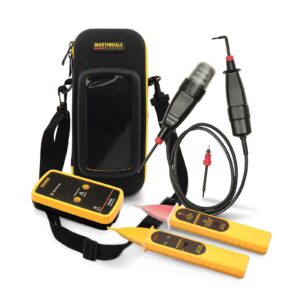

SMKIT5 supplied with Drummond MTL10 (excludes Buzz-It BZ101)
SMKIT10 supplied with Drummond MTL10 and Buzz-It BZ101
SMKIT20 supplied with Drummond MTL20 and Buzz-It BZ101

Datasheet

Download

£258.00
