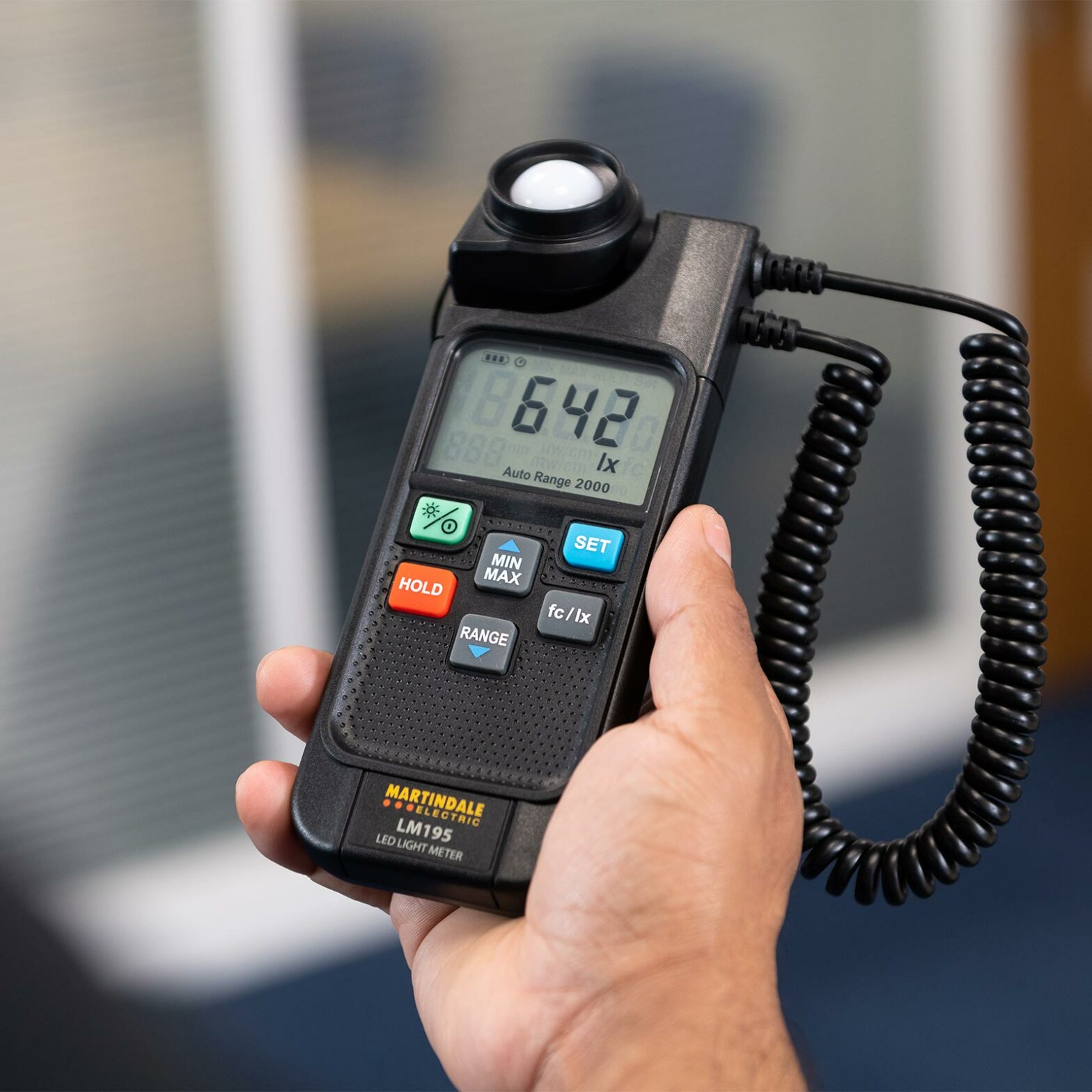

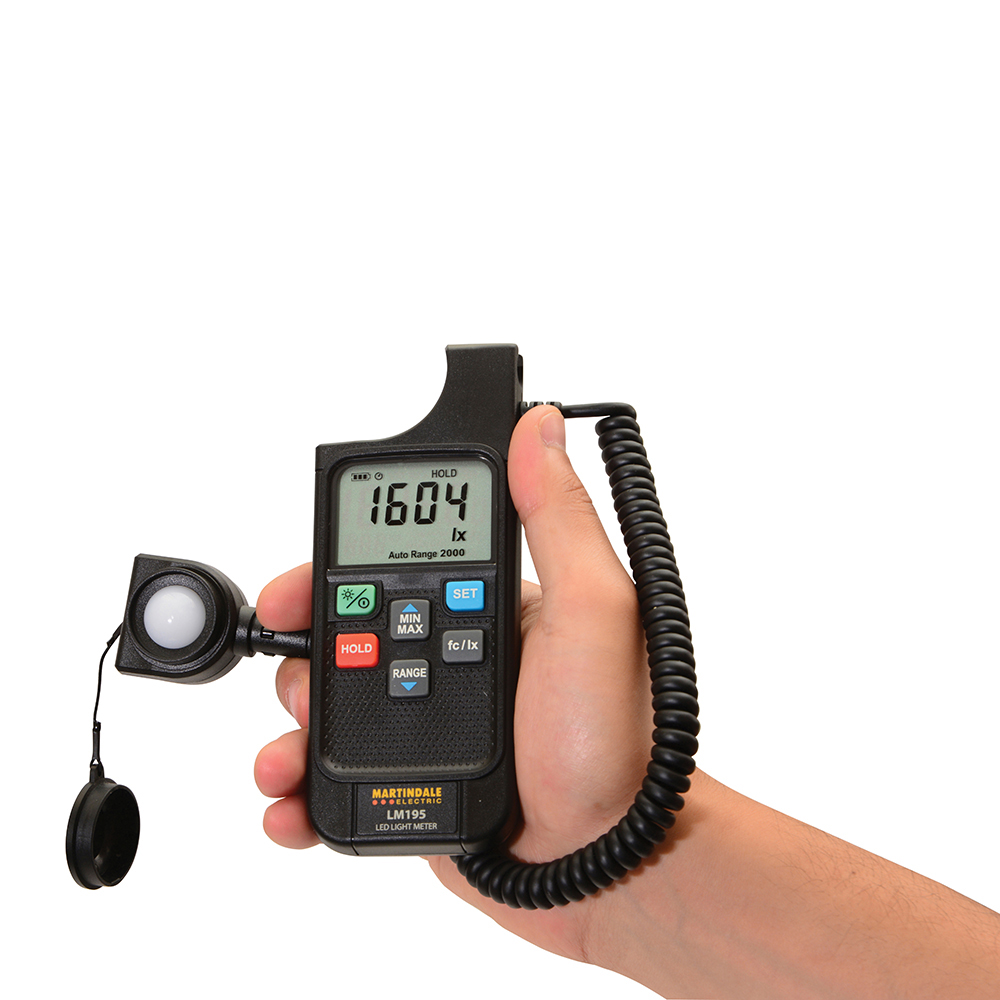

Martindale LM195 LED Light Meter

  • Built-in correction factors for LED, incandescent & fluorescent lighting
  • Auto and manual ranging to 200,000 lux, 20,000 fc
  • Resolution to 0.1 lux
  • CIE photopic standard
  • Hold, Min and Max functions
  • Auto power off & low battery indication
  • LCD display with backlight

EAN: 5036162187889 SKU: MARLM195 Category:

Description

The LM195 is a high quality general purpose light meter designed for use with the latest LED lighting systems. The built-in correction factors make it easy to take reliable measurements with both conventional and LED lighting.

It is ideally suited to ensuring that industrial, office and commercial building lighting achieves the required levels for a healthy working environment. The new light meter can be used for commissioning new installations and checking the performance existing lighting. It provides readings up to 200,000 lux with a maximum resolution of 0.1 lux in the 200 lux range. The tough design makes it suitable for all working areas and the intuitive layout with detachable light sensor makes it easy to take accurate and reliable measurements in all types of application.

The LM195 has all the features of the LM192 Light Meter with the added benefit of the built-in correction factors for LED, incandescent and fluorescent lighting making it suitable for all types of installation.



Specifications

Range 0.0 to 99.9/1999/19990/199900 lx

0.00 to 19.99/199.9/1999/19990 fc

Resolution 0.1lx, 0.01fc
Accuracy ± 3% rdg ± 5 dgt (Standard A light source)
Spectral response CIE photopic
Preset Light Source Weighting 5 x LED settings

2 x Fluorescent settings

1 x Incandescent setting

Measurement rate 2/second
Supply 2 x 1.5V AA alkaline batteries (IEC LR6, NEDA 15A)
Dimensions 169 x 63 x 37mm
Weight 185g including batteries

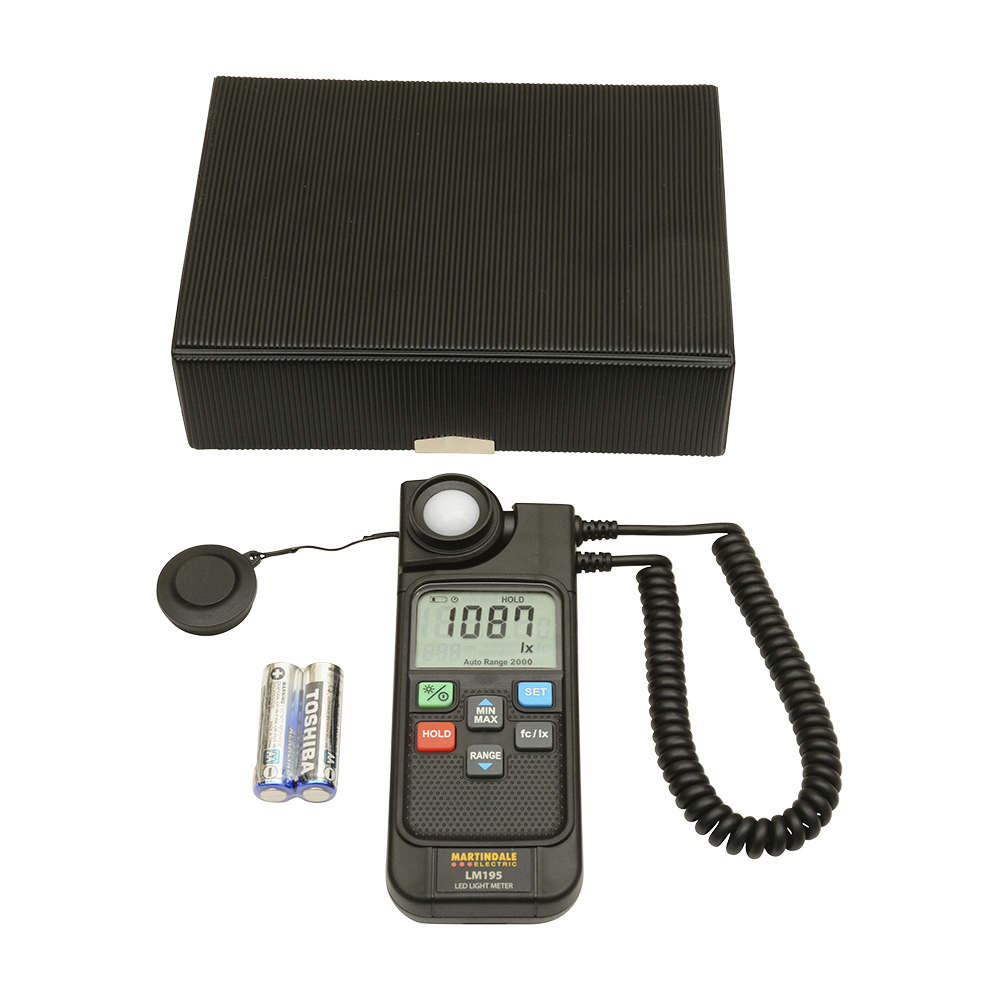

Includes case, batteries and manual

Datasheet

Download

Manual

Download

£234.00
