Martindale HPAT400 Pass/Fail PAT Tester

  • Compact design with backlit display
  • Easy one button testing
  • Automatic Class I, Class II & power lead tests
  • Simple PASS/FAIL indication only
  • 200mA earth bond test – I.T. Safe
  • 250V / 500V insulation test

Free VC
EAN: 5036162188244 SKU: MARHPAT400 Category: Tag:

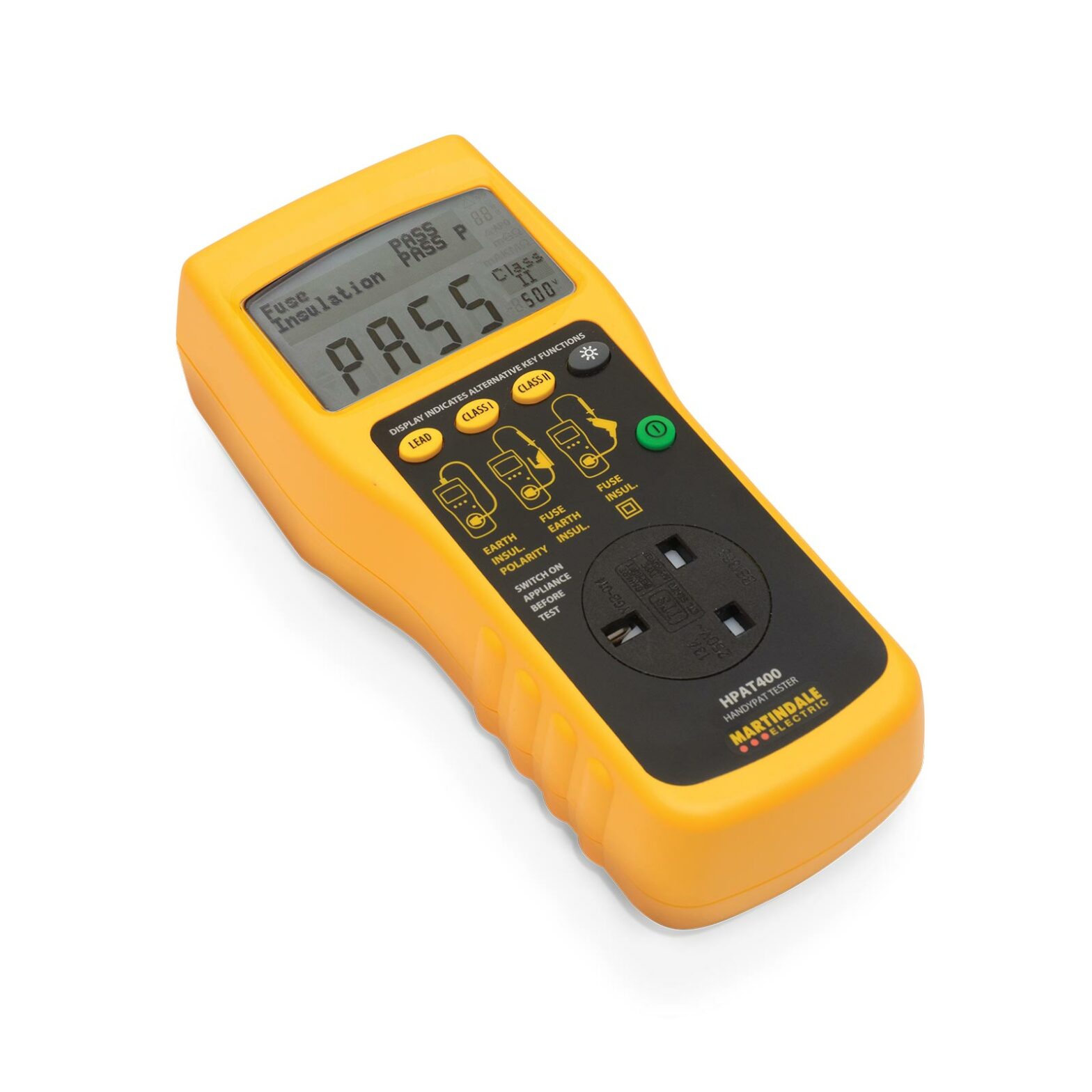

The HPAT400 HandyPAT is an easy to use battery powered, hand-held PAT tester with simple one-button test selection. Its lightweight portable design makes it ideal for testing in all locations whether under a desk or testing a wall mounted monitor.

As well as performing a 500V insulation test, our latest feature now included with the HPAT400 is the ability for users to swap between different test voltages of 250V and 500V. This is especially helpful when testing appliances with surge protected circuits, such as sensitive IT equipment at 250V.

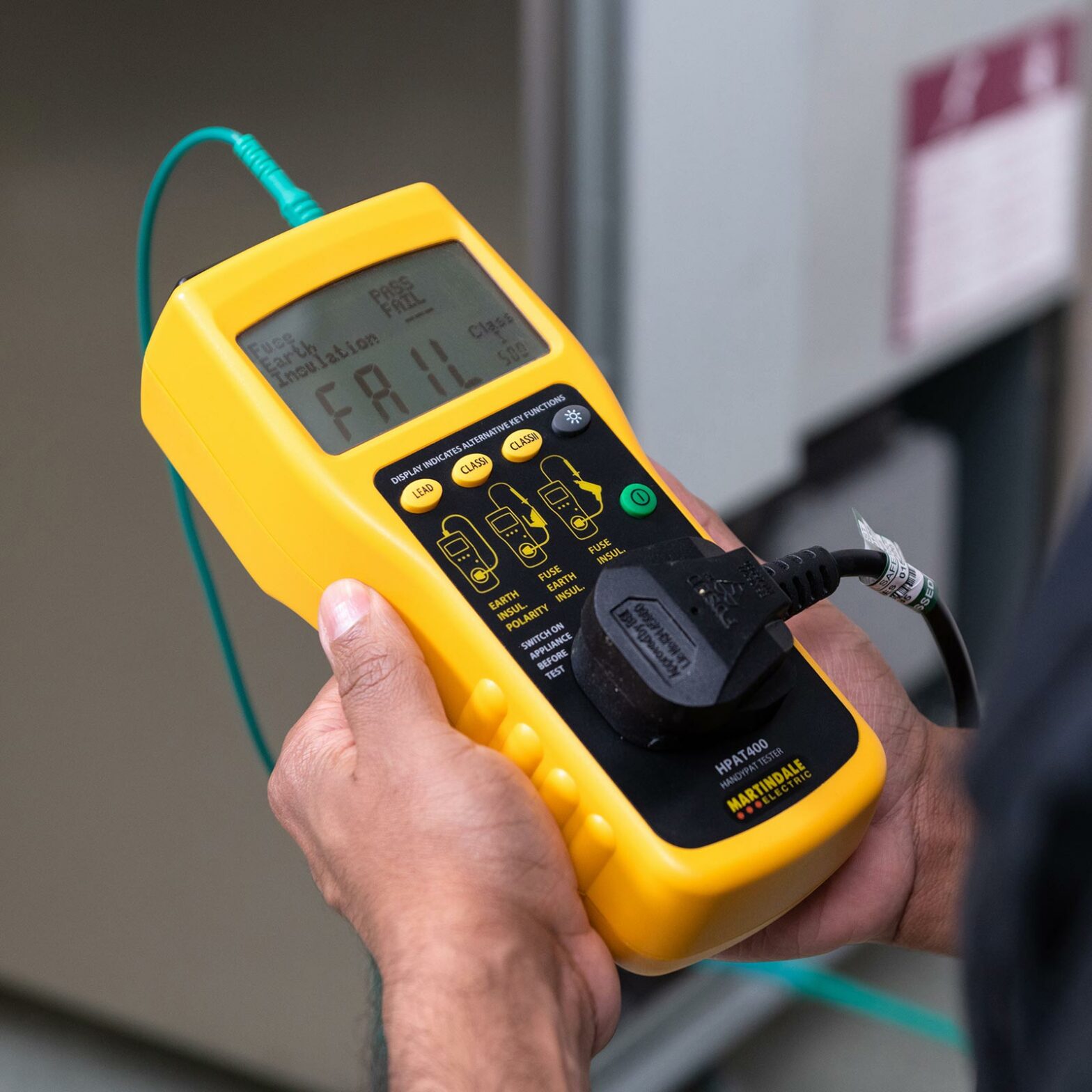

A single button press activates either a full Class I, Class II or lead test without any further interaction required by the user, unless a failure is encountered.
The display has clear PASS/FAIL indicators but does not display test values. Simple connection diagrams are permanently shown on the case body making it easy to start testing straight away.

The HPAT400 delivery contents include an extension lead adaptor, an earth bond probe with clip, 6xAA alkaline batteries and a “TEST & GO” carry case with separate pocket for accessories.

  • Compact portable design with backlit display
  • Easy one button testing
  • Automatic Class I, Class II & power lead tests
  • Clear and simple PASS/FAIL indication
  • IT safe 200mA earth bond test



Default pass level Lead: ≥ 1.0 MΩ

Class I: ≥ 1.0 MΩ

Class II: ≥ 2.0 MΩ

Fuse test Voltage: 4V DC (open circuit)

Current: 200mA DC (short circuit)

Pass level: >2mA

Overload protection 300V AC/DC
Complies with BS EN 61010
Temperature range -10 to 40°C
Supply 6 x 1.2V AA alkaline batteries
Dimensions 90 x 210 x 54mm
Weight 700g (inc batteries & leads)
Includes TC57 carry case, alkaline batteries, EX332 IEC lead, TL67 earth bond probe and manual


See all PAT accessories


Class I /II Test
Lead Test
Pass/Fail Indication
Test Values Displayed
Selectable Limits
Test ModeAutoAutoAuto/Manual
Run TestSimulated
Earth Continuity Test Current200mA200mA200mA
Insulation Test Voltage250/500V250/500V250/500V
110V AppliancesWith accessoryWith accessoryWith accessory
Memory200 results for on-screen recall
SupplyAlkaline batteriesRechargeableRechargeable
