Martindale HPAT600/2 Advanced Rechargeable PAT Tester
- Information
- Key spec
- Comparison
- Accessories

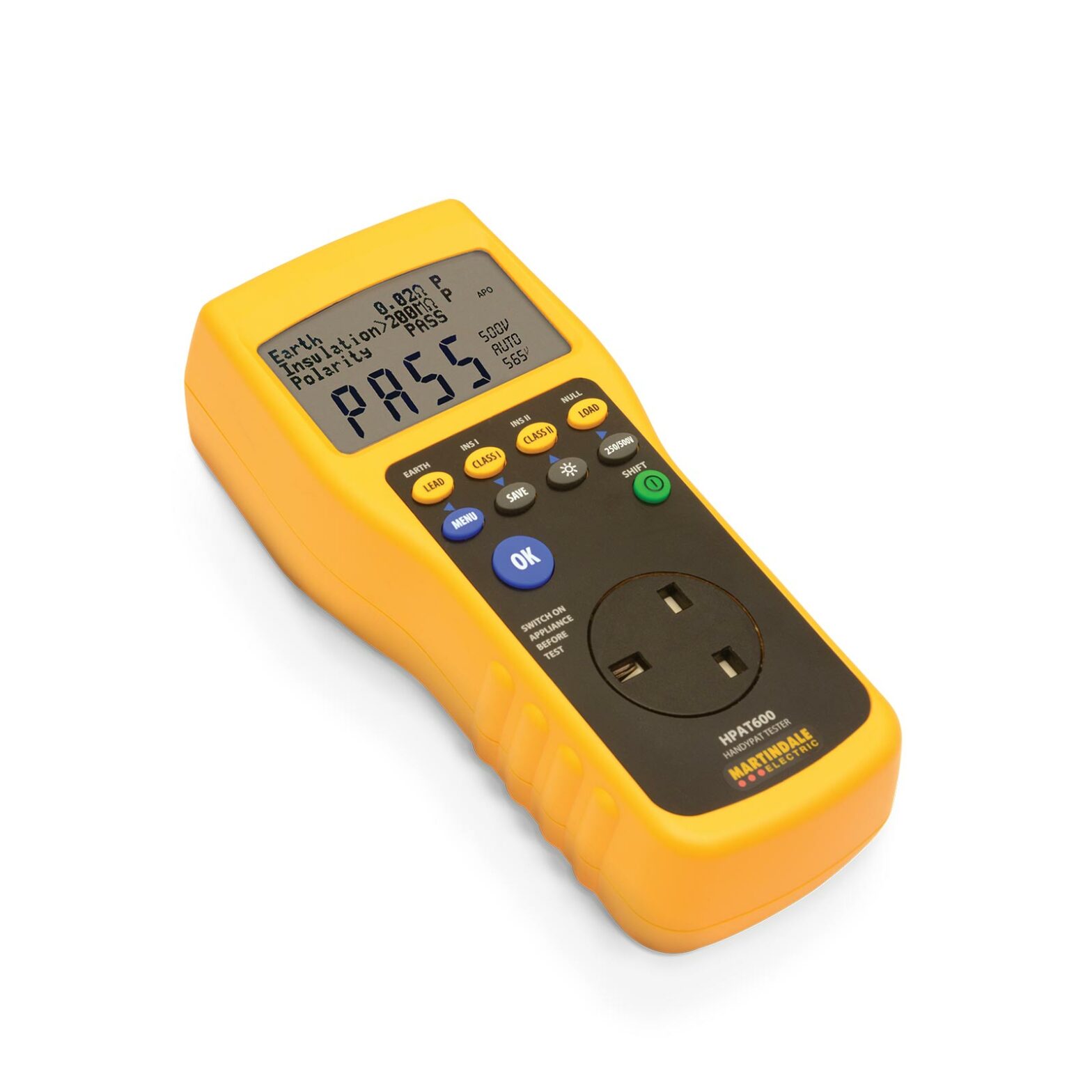

The HPAT600 HandyPAT is an easy-to-use battery-powered, hand-held PAT tester that is ideal for testing all types of portable appliances. For convenience, the tester is supplied with rechargeable batteries plus mains and in-car charger.
A fast automatic one-button test sequence can be used, or a simple-to-operate manual mode is useful for diagnostics and can be used for testing both 230V and 110V appliances.
In automatic mode, the HPAT600 will routinely run through a selected test sequence without any further user interaction. In manual mode, a connection diagram is shown on the display and each step of a test requires user confirmation.
Pass levels can also be adjusted to test appliances with long power cords or extension leads. The HPAT600 stores test data for up to 200 appliances for on-screen recall. This function is not for downloading to a PC.
HPAT600 delivery contents include an extension lead adaptor, an earth bond probe with clip, a mains charger, 6xAA rechargeable batteries and a “Test & Go” carry case and charging accessories
Light and extremely portable.
Compact design
Class I, Class II & power lead tests
Memory with on-screen recall
Rechargeable, mains or in-car
Earth continuity
Test current: 200mA DC Range: 0-19.99Ω Resolution: 0.01Ω Accuracy: ± (5% rdg + 2 dgt) Default pass level: Class I ≤ 0.1Ω, Lead ≤ 0.1Ω User selectable pass levels: 0.1Ω to 0.9Ω in 0.1 steps
Default pass level
Lead: ≥ 1.0 MΩ Class I: ≥ 1.0 MΩ Class II: ≥ 2.0 MΩ
User selectable pass level
0.3MΩ to 1MΩ in 0.1MΩ steps 1MΩ to 10MΩ in 1MΩ steps
Simulated load test
Voltage: 4V DC (open circuit) Current: 200mA DC (short circuit)
Temperature range
-10 to 40°C
Overload protection
300V AC/DC
Dimensions
90 x 210 x 54mm
Weight
700g (inc batteries & leads)
Complies with
BS EN 61010
Includes
TC57 carry case, PSUHPAT230 mains charger, rechargeable batteries, EX332 IEC lead, TL67 earth bond probe, PSUHPAT12 in-car charger, earth null adaptor and manual
Warranty
2 Years
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162188268
| HPAT400 | HPAT500/2 | HPAT600/2 | |
|---|---|---|---|
| Class I /II Test | ✔ | ✔ | ✔ |
| Lead Test | ✔ | ✔ | ✔ |
| Pass/Fail Indication | ✔ | ✔ | ✔ |
| Test Values Displayed | ✔ | ✔ | |
| Selectable Limits | ✔ | ||
| Test Mode | Auto | Auto | Auto/Manual |
| Run Test | Simulated | ||
| Earth Continuity Test Current | 200mA | 200mA | 200mA |
| Insulation Test Voltage | 250/500V | 250/500V | 250/500V |
| 110V Appliances | With accessory | With accessory | With accessory |
| Memory | 200 results for on-screen recall | ||
| Supply | Alkaline batteries | Rechargeable | Rechargeable |
FAQs
- What is the difference between the HP600 and HPAT500?
-
The main differences are the HPAT600 has selectable limits, manual test mode and the ability to store results.
- How do I Null the Earth bond Lead Martindale HPAT600 PAT Tester?
-
To null the test probe lead resistance press SHIFT and NULL (LOAD) to display the NULL screen. Select Null or Abort.
- How do I Null the Earth Bond Lead Martindale HPAT500 PAT Tester?
-
Connect the test lead probe to the EARTH pin on the front panel 13amp test socket. Hold down the Class One and Class Two buttons while powering up the device.
The NU symbol on the right of the display will light up. Within 5 seconds – Press the LEAD button to initiate the calibration.
- Do Martindale supply all the accessories needed for commercial PAT testing?
-
Martindale supply a full range of labels, certificate pads, registers and accessories via our distribution network.
- How can I get basic training on PAT testing?
-
Martindale offer a comprehensive 1 day course at our Watford Office taught in accordance with the IET Code of practice.
- There is a wide range of Martindale PAT testers what are the main differences?
-
There are three ranges of Martindale PATs – the general use HPAT Series range of three handheld testers, the EPAT series are suitable for 110V and 240V appliances ideal for workshop appliance testing, and, finally, the MPAT series, which includes additional functions including the ability to download results.
