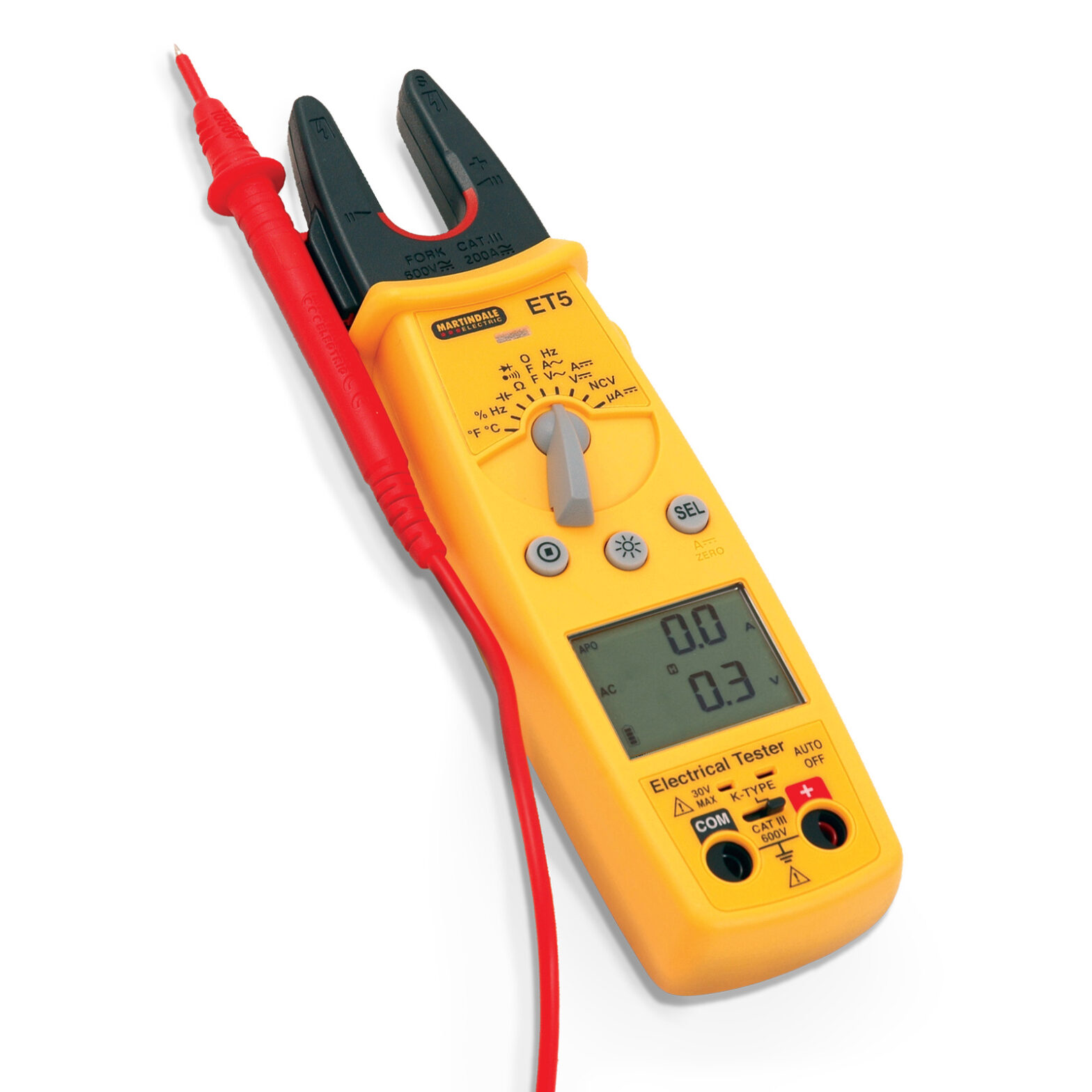

Martindale ET5 200A AC/DC Electrical Tester

  • AC/DC voltage up to 600V
  • AC/DC Current up to 200A
  • Continuity (with buzzer < 30 Ω)
  • Frequency measurement 30Hz – 400Hz
  • Temperature -35°C – 500°C
  • Carry case with belt loop

CAT III 600V
EAN: 5036162186363 SKU: MARET5 Category: Tag:

Description

The ET5 is a very compact electrical tester that measures AC/DC voltage, resistance, AC/DC current and also Temperature. Continuity with a buzzer is also included.

The DC current measurement capability typically increases the cost of many testers, making the ET5 great value.

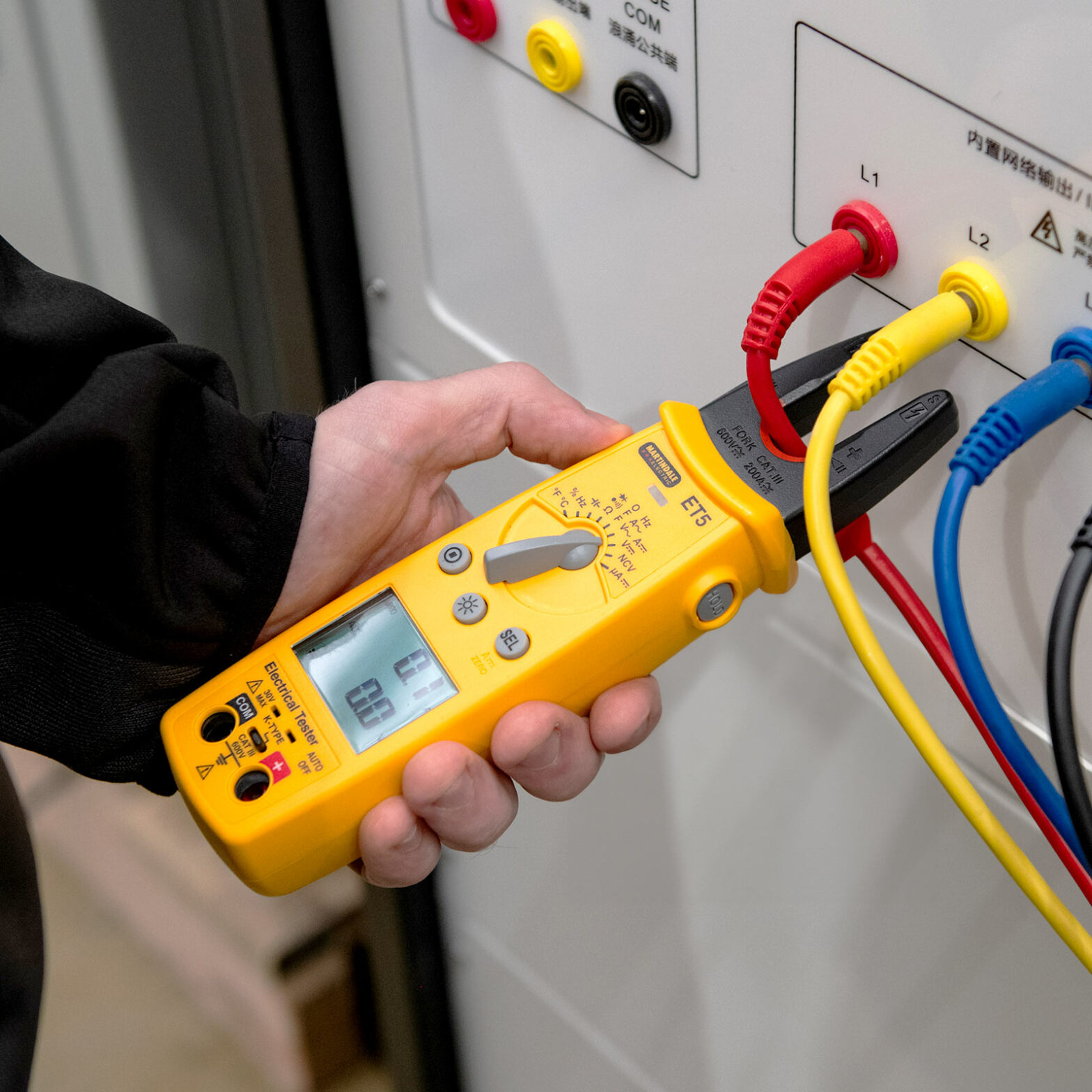

It can also measure frequency, continuity and will take simultaneous measurement of current/voltage and frequency/voltage by employing the open jaw clamp and test probes simultaneously.

Temperature is measured using the K-type thermocouple (included).

This electrical tester can be used as a non-contact voltage indicator using the inbuilt sensor in the left tip of the open jaw clamp and has auto-ranging, display hold and auto power-off functions. The ET5 also measures capacitance and duty cycle.

The right tip of the jaw has a forward-facing LED light to illuminate the local working area.

The ET4 is supplied with TL17 test leads, a soft carry case with belt loop, 9V battery and manual.

Specifications



Current AC: 0.1A-200.0A, Accuracy: ±(2.0% of rdg + 10 dgt)

DC: 0.1A-200.0A, Accuracy: ± (2.0% of rdg + 5 dgt)

Voltage AC: 0.1mV-600V, Accuracy: ± (1.2% of rdg + 5 dgt)

DC: 0.1mV-600V, Accuracy: ± (0.5% of rdg + 2 dgt)

Resistance 0.1 Ω-50MΩ, ± (1% of rdg + 5 dgt)
Frequency 30Hz-400Hz, ± (0.1% of rdg + 5 dgt)
Continuity Buzzer at<30Ω
Diode Test 1mV-2V
NCV indicator 70V- 600V
Supply 9V PP3 Alkaline
Weight 200g (incl battery)
Dimensions 202 x 51 x 44 mm
Temperature -35°C-500°C
Accuracy ± 2% rdg ± 3°C
Duty Cycle 5% – 95%
Capacitance 1nF – 5mF± (3% of rdg + 5 dgt)
Includes TL17 leads, K-type thermocouple (ET5), 9V battery, case and manual

Accessories

Comparison

 ET4ET5CM57
AC Current
DC Current
AC/DC Volts
Ohms
Frequency
Capacitance
Non-contact Voltage Detector
Auto ranging
Max Conductor Size15mm Ø15mm Ø25mm Ø
35*15mm
True RMS
Min Max
Backlight
Auto Power Off
OtherTorchTorch
Temperature
SafetyCAT III 600VCAT III 600VCAT III 600V

Datasheet

Download

Manual

Download

£166.00
