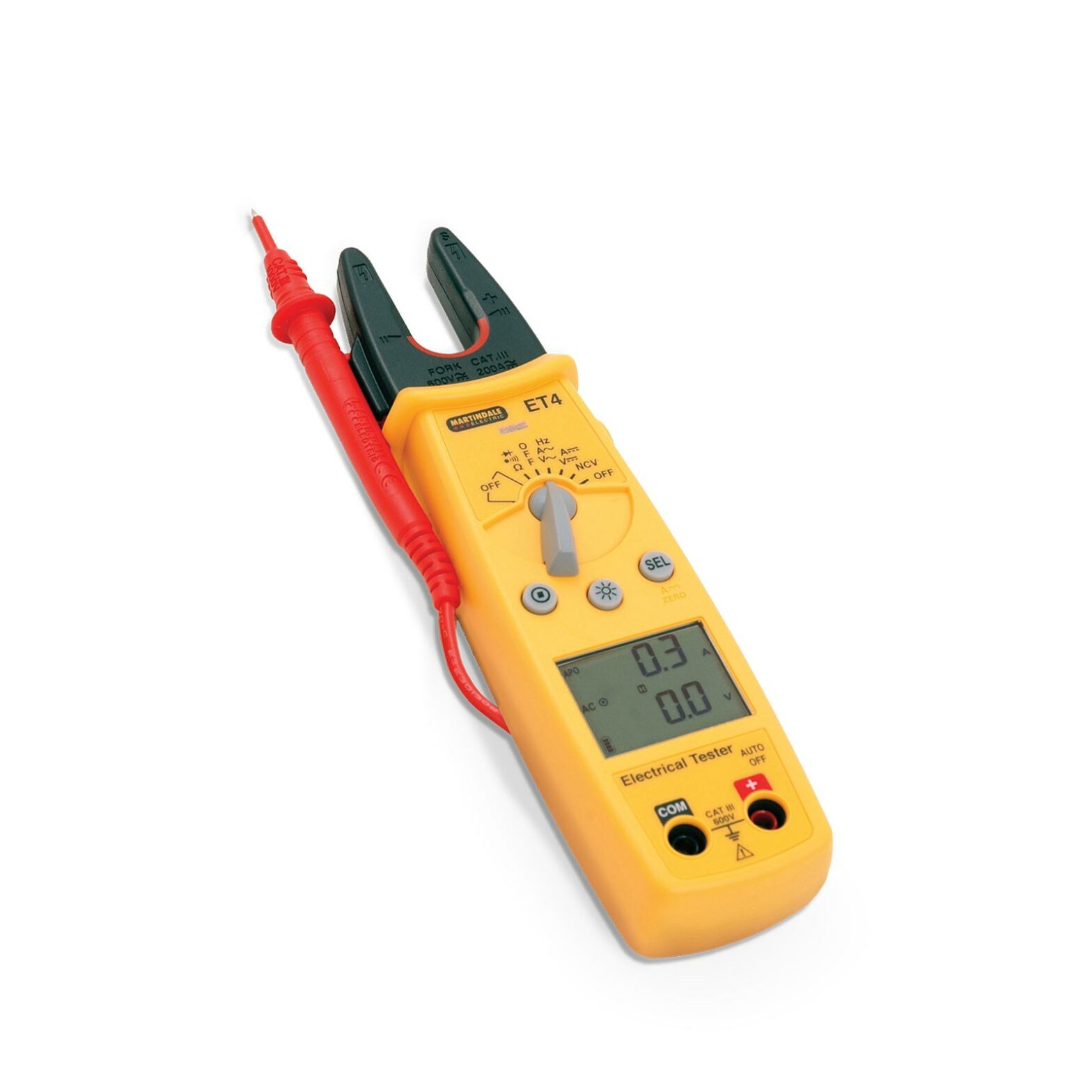

Martindale ET4 Electrical Tester 200A AC/DC

  • AC/DC voltage up to 600V
  • AC/DC Current up to 200A
  • Continuity (with buzzer < 30 Ω)
  • Frequency measurement 30Hz- 400Hz
  • Carry case with belt loop

CAT III 600V
EAN: 5036162186356 SKU: MARET4 Category: Tag:

Description

The ET4 is a very compact electrical tester that measures AC/DC voltage, resistance and AC/DC current. Continuity with a buzzer is also included.

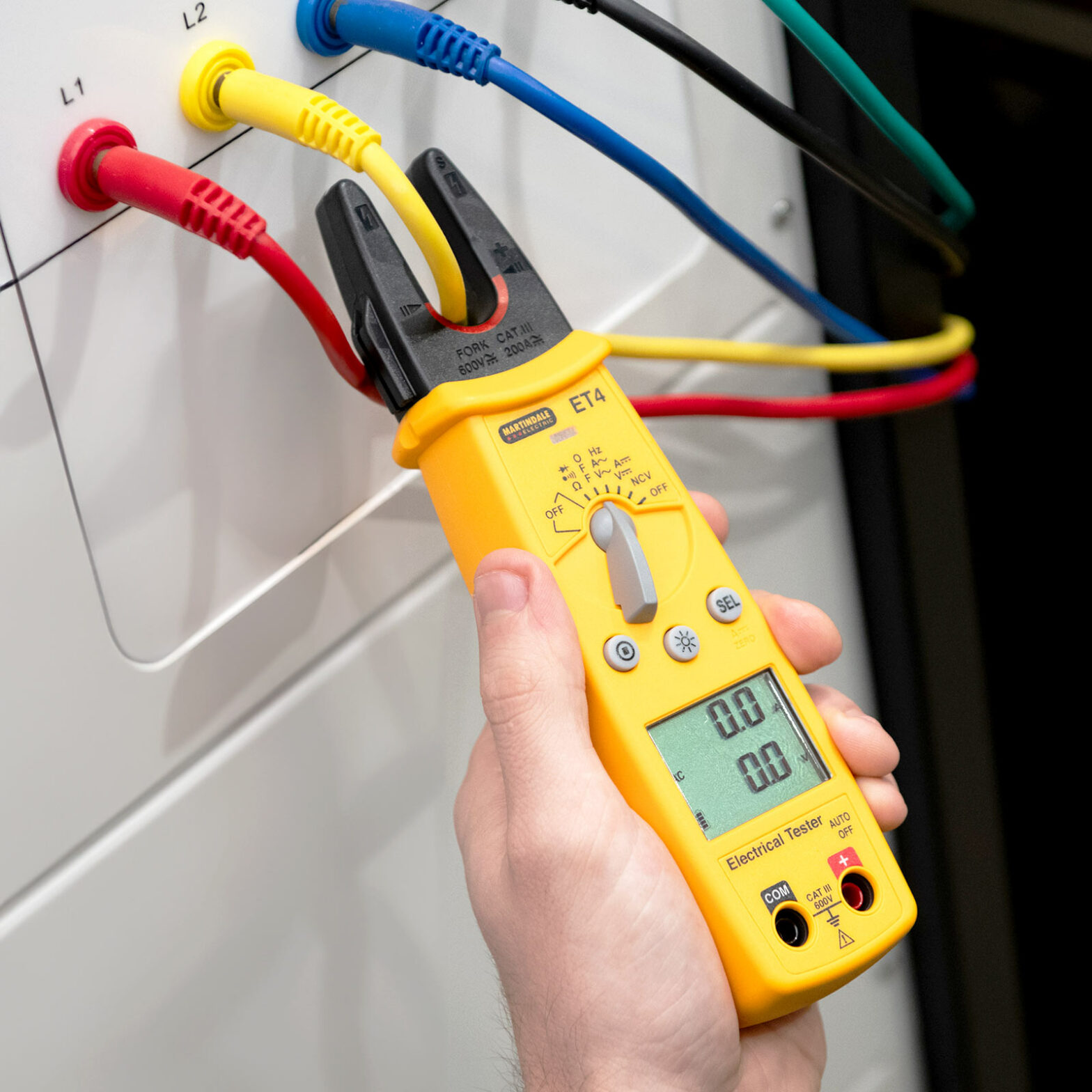

It can also measure frequency and continuity and will take simultaneous measurement of current/voltage and frequency/voltage by employing the open jaw clamp and test probes simultaneously.

This electrical tester can be used as a non-contact voltage indicator using the inbuilt sensor in the left tip of the open jaw clamp and has auto-ranging, display hold and auto power-off functions.

The right tip of the jaw has a forward-facing LED light to illuminate the local working area.

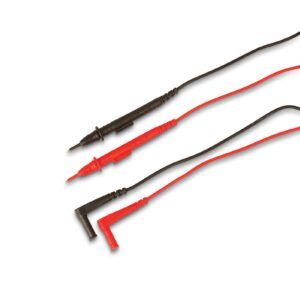

The ET4 is supplied with TL17 test leads, a soft carry case with belt loop, 9V battery and manual.

Specifications



Current AC: 0.1A-200.0A, Accuracy: ±(2.0% of rdg + 10 dgt)

DC: 0.1A-200.0A, Accuracy: ± (2.0% of rdg + 5 dgt)

Voltage AC: 0.1mV-600V, Accuracy: ± (1.2% of rdg + 5 dgt)

DC: 0.1mV-600V, Accuracy: ± (0.5% of rdg + 2 dgt)

Resistance 0.1 Ω-50MΩ, ± (1% of rdg + 5 dgt)
Frequency 30Hz-400Hz, ± (0.1% of rdg + 5 dgt)
Continuity Buzzer at<30Ω
Diode Test 1mV-2V
NCV indicator 70V- 600V
Supply 9V PP3 Alkaline
Weight 200g (incl battery)
Dimensions 202 x 51 x 44 mm
Includes TL17 test leads, 9V battery, case and manual

Accessories

Comparison

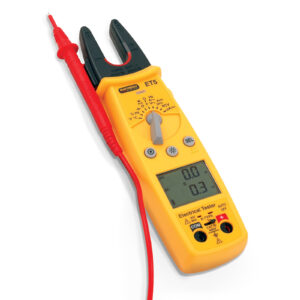

 ET4ET5CM57
AC Current
DC Current
AC/DC Volts
Ohms
Frequency
Capacitance
Non-contact Voltage Detector
Auto ranging
Max Conductor Size15mm Ø15mm Ø25mm Ø
35*15mm
True RMS
Min Max
Backlight
Auto Power Off
OtherTorchTorch
Temperature
SafetyCAT III 600VCAT III 600VCAT III 600V

Datasheet

Download

Manual

Download

£149.00
