Martindale PSI4300 Non Contact Utility Phase Sequence Indicator

  • Non-contact for improved safety and ease of use
  • Works on both insulated and uninsulated conductors
  • Bright LED and buzzer indication of live phases and sequence
  • Positive indication for anti-clockwise rotation
  • High quality colour coded clips

CAT III 1000V CAT IV 600V
SKU: MARPSI4300 Category: Tags: ,

Description

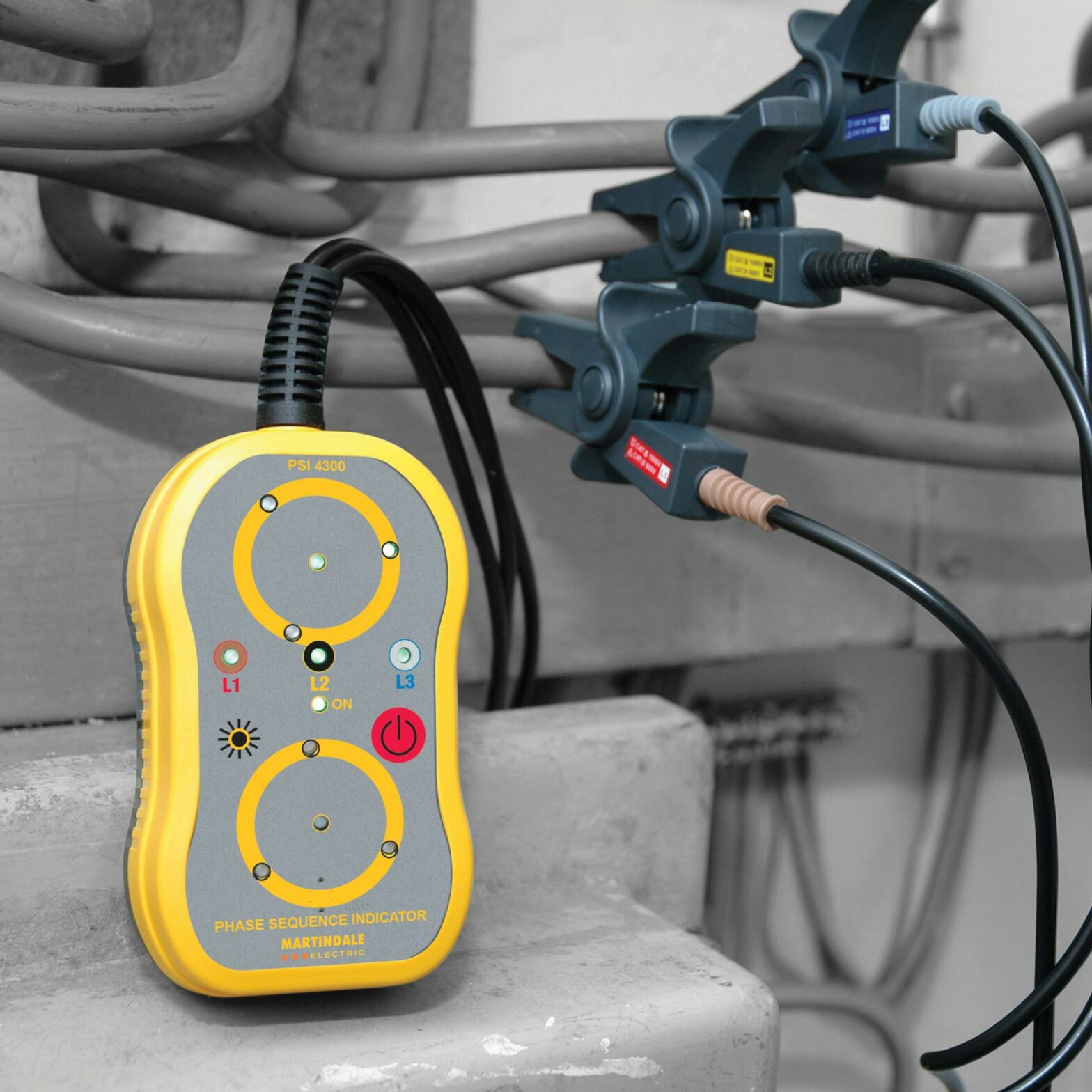

The Martindale PSI4300 is a unique phase rotation indicator that carries out the measurement via inductive crocodile clips. This method increases the safety of the user, whilst the bright green LEDs give a clear primary indication of anti-clockwise phase rotation.

The design of this phase rotation tester allows for use on both insulated or uninsulated conductors, and an “Enhanced Brightness” switch makes indication brighter in strong ambient light. A combination of both rotating LEDs and buzzer tones indicate clockwise or anti-clockwise rotation.

The Martindale PSI4300 is supplied with 4 x AA batteries, soft carry case and instruction manual.

Video

Specifications

Measurement principle is static induction
Input voltage 75V-1000V 3-Phase AC
Frequency range 45-65Hz
Conductor size 2.4mm-30mm diameter
Operating temperature & humidity -10°C to 50°C, Max. 80% RH
Battery current consumption 15mA
Cable length approx. 800mm
Supply 1.5V X 4 (AA or LR6) alkaline batteries
Auto-off After 5 mins of non activity
Low battery warning Power LED flashes below 4.6V DC battery voltage
Safety standard BS EN 61010-1

CAT III 1000V

CAT IV 600V

BS EN 61326-1

Class II Insulation

Weight 370g approx. (incl batteries)
Dimensions 118 x 69 x 38mm
Includes TC54 soft case, batteries and manual

Comparison

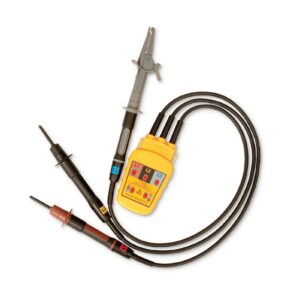

 PC15250PSI4000PSI4300
Self Powered
Non-Contact
Clockwise Indication
Anti-Clockwise Indication
Carry Case
SafetyCAT IV 600VCAT IV 600VCAT IV 600V

Datasheet

Download

Manual

Download

£240.00
