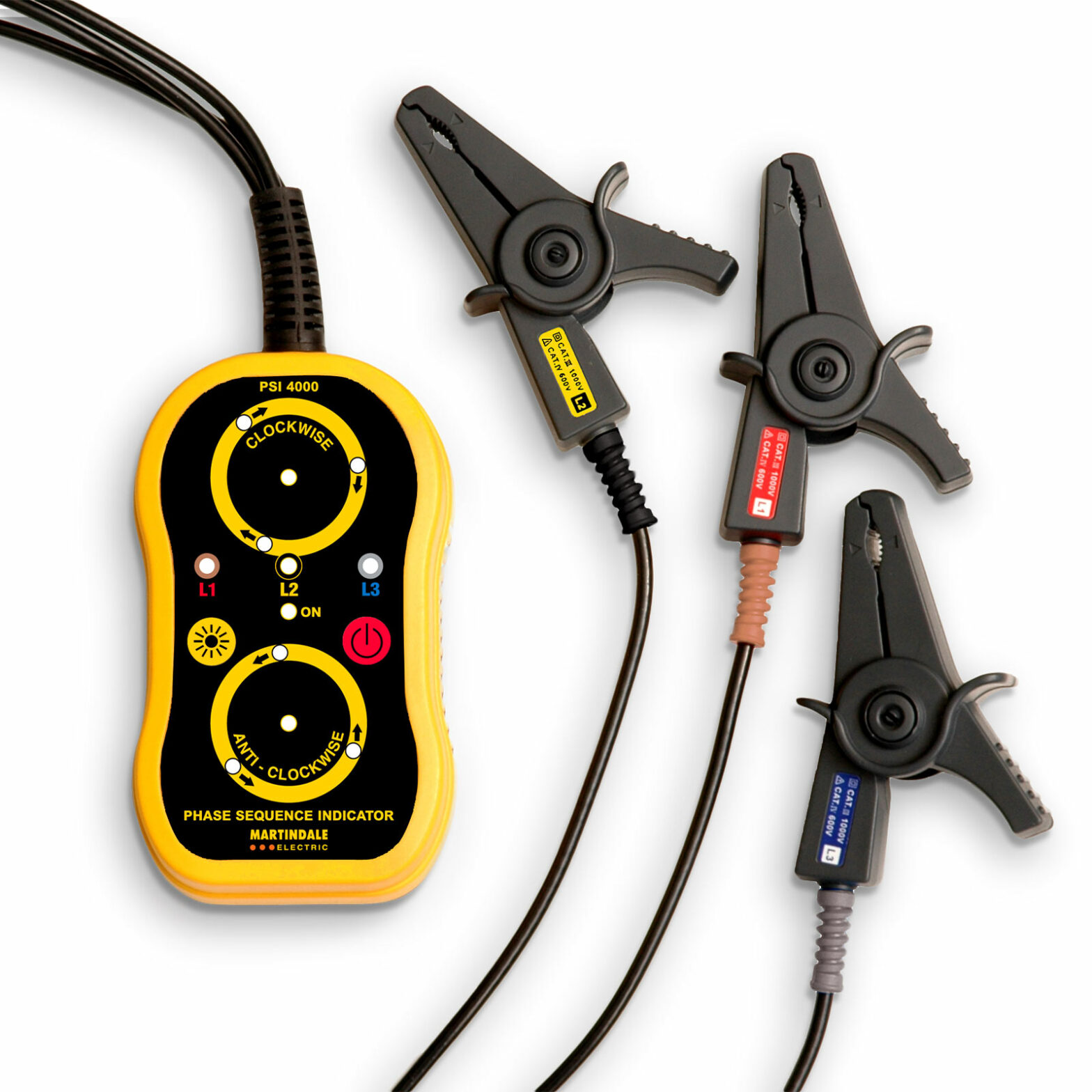

Martindale PSI4000 Non Contact Phase Sequence Indicator

  • Non-contact for improved safety and ease of use
  • Works on both insulated and uninsulated conductors
  • Bright LED and buzzer indication of live phases and sequence
  • Positive indication for clockwise rotation
  • High quality colour coded clips

CAT III 1000V CAT IV 600V
SKU: MARPSI4000 Category: Tags: ,

Description

An unique non-contact phase rotation indicator that carries out measurements via inductive crocodile clips.

The increased safety design of this phase rotation tester allows for use on both insulated and non-insulated conductors with a buzzer and bright LED’s giving clear indication of clockwise or anti-clockwise phase rotation. There is also an Enhanced Brightness switch for clear indication in strong ambient light.

The Martindale PSI4000 is supplied with 4 x AA batteries, soft carry case and manual.

Video

Specifications

Measurement principle is static induction
Input voltage 75V-1000V 3-Phase AC
Frequency range 45-65Hz
Conductor size 2.4mm-30mm diameter
Operating temperature & humidity -10°C to 50°C, Max. 80% RH
Battery current consumption 15mA
Cable length approx. 800mm
Supply 1.5V X 4 (AA or LR6) alkaline batteries
Auto-off After 5 mins of non activity
Low battery warning Power LED flashes below 4.6V DC battery voltage
Safety standard BS EN 61010-1

CAT III 1000V

CAT IV 600V

BS EN 61326-1

Class II Insulation

Weight 370g approx. (incl batteries)
Dimensions 118 x 69 x 38mm
Includes TC54 soft case, batteries and manual

Comparison

 PC15250PSI4000PSI4300
Self Powered
Non-Contact
Clockwise Indication
Anti-Clockwise Indication
Carry Case
SafetyCAT IV 600VCAT IV 600VCAT IV 600V

Datasheet

Download

Manual

Download

£220.00
