Martindale FD500 Analogue Fuse Finder

  • Easy location of fuses and breakers
  • Simple thumbwheel adjustment of sensitivity
  • For use on live circuits
  • Socket to socket tracing
  • Audible and visual indication

EAN: 5036162183140 SKU: MARFD500 Category:

Description

The analogue Martindale Fuse Finder Kit (FD500) finds which fuse or breaker controls a circuit. It also enables tracing from socket to socket on a circuit.

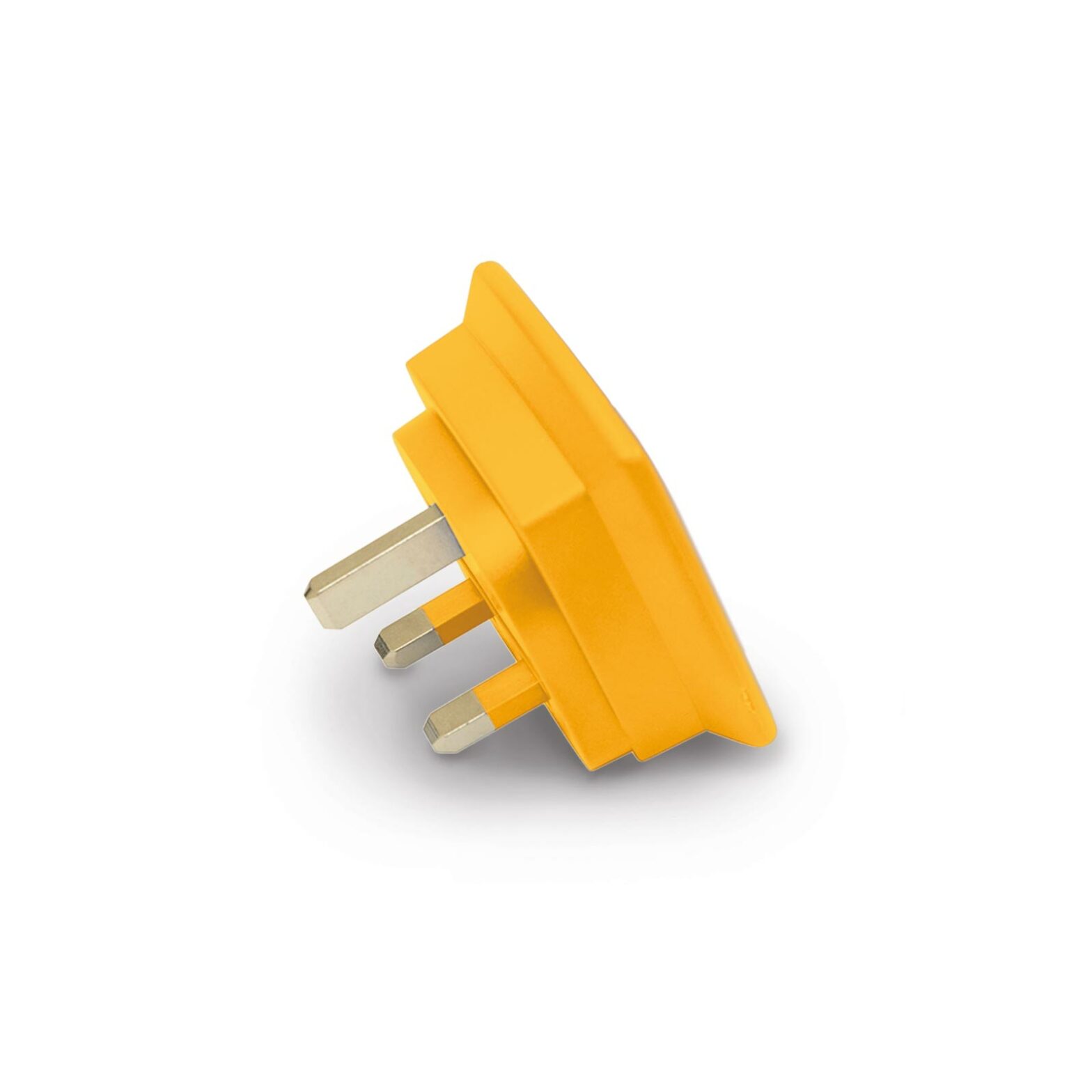

The transmitter (FD500/T) takes its power from the mains and emits a signal which the adjustable sensitivity receiver (FD500/R) can pick up.
This combination can easily distinguish the appropriate circuit, even on a crowded fuse board. Sensitive analogue adjustment by thumb wheel finds the right breaker rapidly.

The FD500 fuse finder kit is supplied with a transmitter, receiver, batteries and instruction manual.

Video

Specifications

FD500 Transmitter
Voltage rating 230V
Frequency range 30-70Hz
Switching frequency 5Hz approx.
Transmission pulse width 1.7µS approx.
Transmission pulse 20A max
Earth leakage Nil
Power consumption 1W approx.
IP rating IP20
Supply from mains
Dimensions 65 x 65 x 50mm
Weight 65g approx.
FD500 Receiver
Tracing depth for fuse assignment 0-10cm approx. depending on local conditions
Sensitivity setting rotary
Temperature range -10°C to 40°C at max 60% RH
IP rating IP20
Supply 9V battery, MN1604/PP3, (included)
Weight 135g approx. incl battery
Dimensions 160 x 55 x 30mm
Complies with EMC standards
FD500 Kit includes FD500/R receiver, FD500/T transmitter, battery

Accessories

Comparison

Fuse findingFD500FD550FD650
From wall sockets
From light fittings & distribution boards
Live or dead fuse finding & cable tracing
Analogue detection
Digital detection
Automode
Multiple transmitter capability
Kit includesFD500/R
FD500/T
FD650/R
FD500/T
FD650/R
FD600/T
Leads

Datasheet

Download

Manual

Download

£89.00
