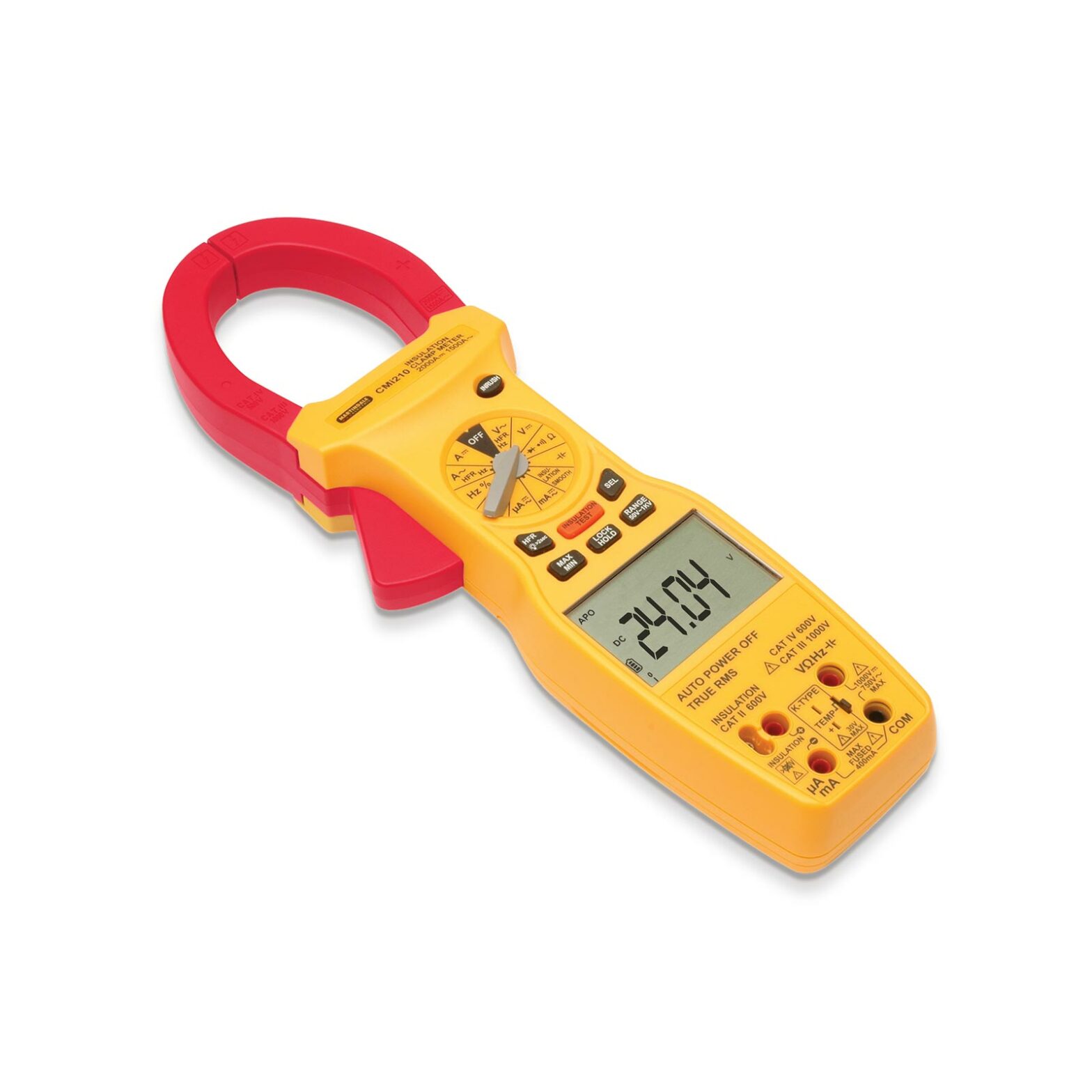

Martindale CMi210 AC/DC TRMS Insulation Clamp Meter

  • Insulation resistance test from 50V to 1000V up to 6GΩ
  • Insulation resistance test to 6GΩ
  • True RMS AC current 1500A
  • DC current to 2000A
  • True RMS voltage to 750V
  • DC voltage to 1000V
  • Continuity with audible indication
  • Duty cycle, resistance, capacitance , frequency, temperature

CAT IV 600V True RMS
SKU: MARCMI210 Category: Tags: ,

Description

A unique insulation clamp meter for the installation, testing and maintenance of domestic and industrial installations. This high specification clamp meter can perform insulation tests to 6G Ohms with 5 test voltages from 50V to 1000V.

The clamp provides True RMS measurement of AC current to 1500A and AC voltage to 750V. It will also measure DC current to 2000A and DC voltage to 1000V. The CMi210 has all the same test functions you would expect to find on a high specification multimeter with the added benefit of temperature measurement.

Specifications

Current AC True RMS 0.1A to 1500A (2 ranges)
Accuracy 2.5% rdg + 10 dgt (≤ 600A) 60Hz
Current DC 0.1A to 2000A (2 ranges)
Accuracy 2.0% + 5 dgt (≤600A)
Voltage AC True RMS 0.001V to 750V, autoranging
Accuracy 1.5% rdg + 8 dgt
Voltage DC 0.001V to 1000V autoranging (5 ranges)
Accuracy 0.5% rdg + 2 dgt
Insulation resistance 300kΩ-6GΩ depending on voltage test
Accuracy 250-1000V 1.5% +5
Capacitance 0.001µF to 6.6mF (4 ranges)
Frequency 0.01Hz to 10MHz (7 ranges)
Resistance ranges 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
Resolution 0.1Ω on 600Ω
Accuracy 1.0% rdg + 5 dgt on 600Ω to 600kΩ
Temperature -50°C to 1300°C (-58°F to 2372°F) K-type probes
Continuity buzz at <40Ω
Maximum conductor 55mm diameter or 70mm x 18mm bus bar
Features Diode test, duty cycle
Dimensions 326 x 108 x 53mm
Weight 720g approx. incl batteries
Includes Batteries, case, TL45 test leads, type K thermocouple and manual

Accessories

Comparison

 CM95CM100CMi210
AC Current
DC Current
AC/DC Volts
Ohms
Frequency
Capacitance
Non-contact Voltage Detector
Auto ranging
Max Conductor Size85mm Ø160mm Ø55mm Ø
70x18mm
True RMS
Min Max
Backlight
Auto Power Off
OtherFlexible
1mA resolution
Flexible
High current to 3000A
50-1000V Insulation Test
Temperature
Low Pass Filter
SafetyCAT IV 600VCAT IV 600VCAT IV 600V

Datasheet

Download

Manual

Download

£329.00
