Martindale CM55 AC Clamp Meter

  • Rugged pocket sized design
  • High accuracy measurement
  • Autoranging 40.00A & 400.0A AC
  • AC/DC voltage to 600V
  • Resistance to 400Ω
  • Continuity test <25Ω
  • Display hold
  • Auto power off & low battery indicator

CAT III 600V True RMS
SKU: MARCM55 Category: Tags: ,

Description

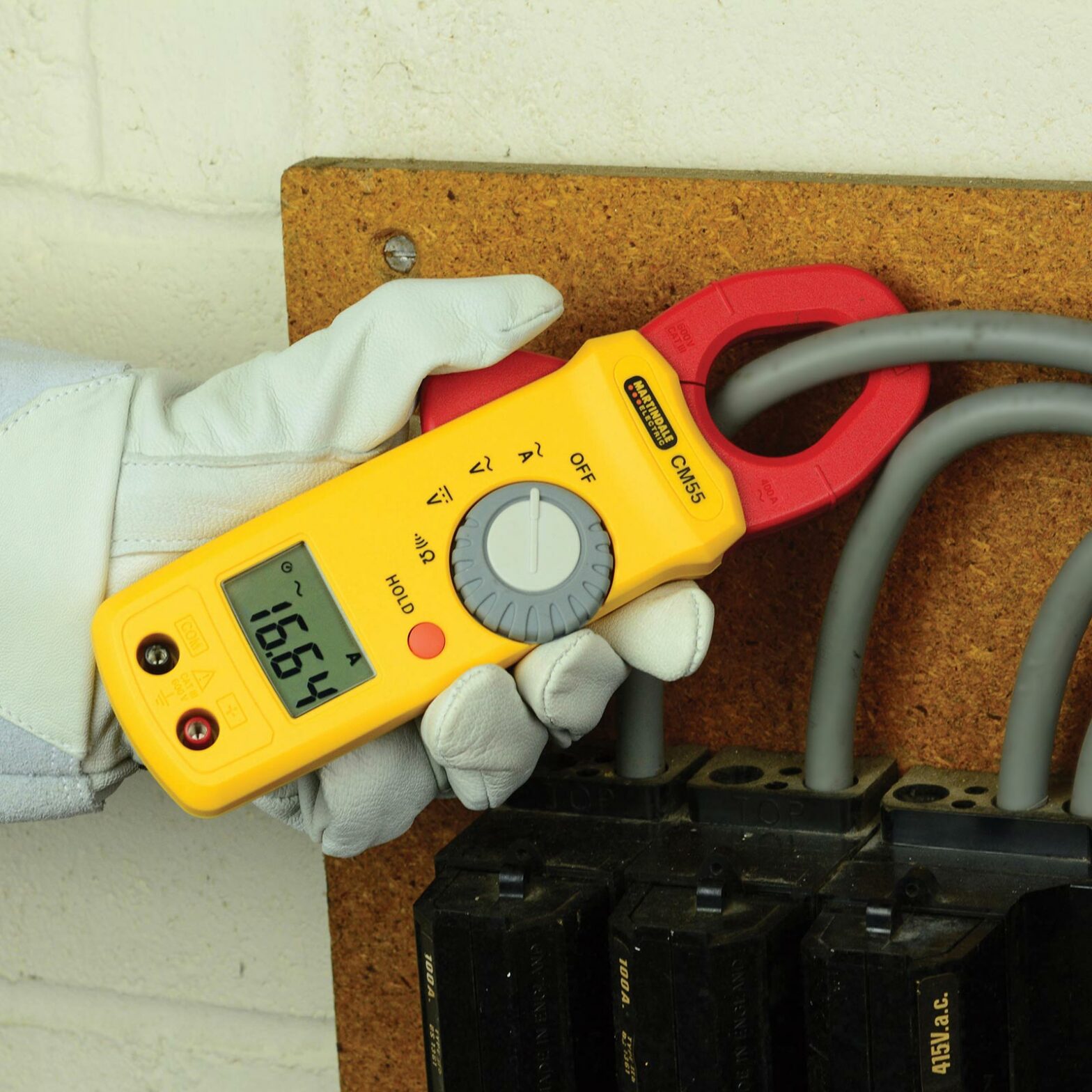

The CM55 is a new pocket sized high performance AC Clamp meter measuring AC current, AC/DC voltage and resistance with continuity test. The compact rugged design enables accurate and reliable current measurement down to 10mA resolution without the need to break into the circuit.

Features include a thumbwheel for single handed operation, auto ranging for ease of use, auto power off, low battery indicator and a hold function useful for when working in areas with restricted access.

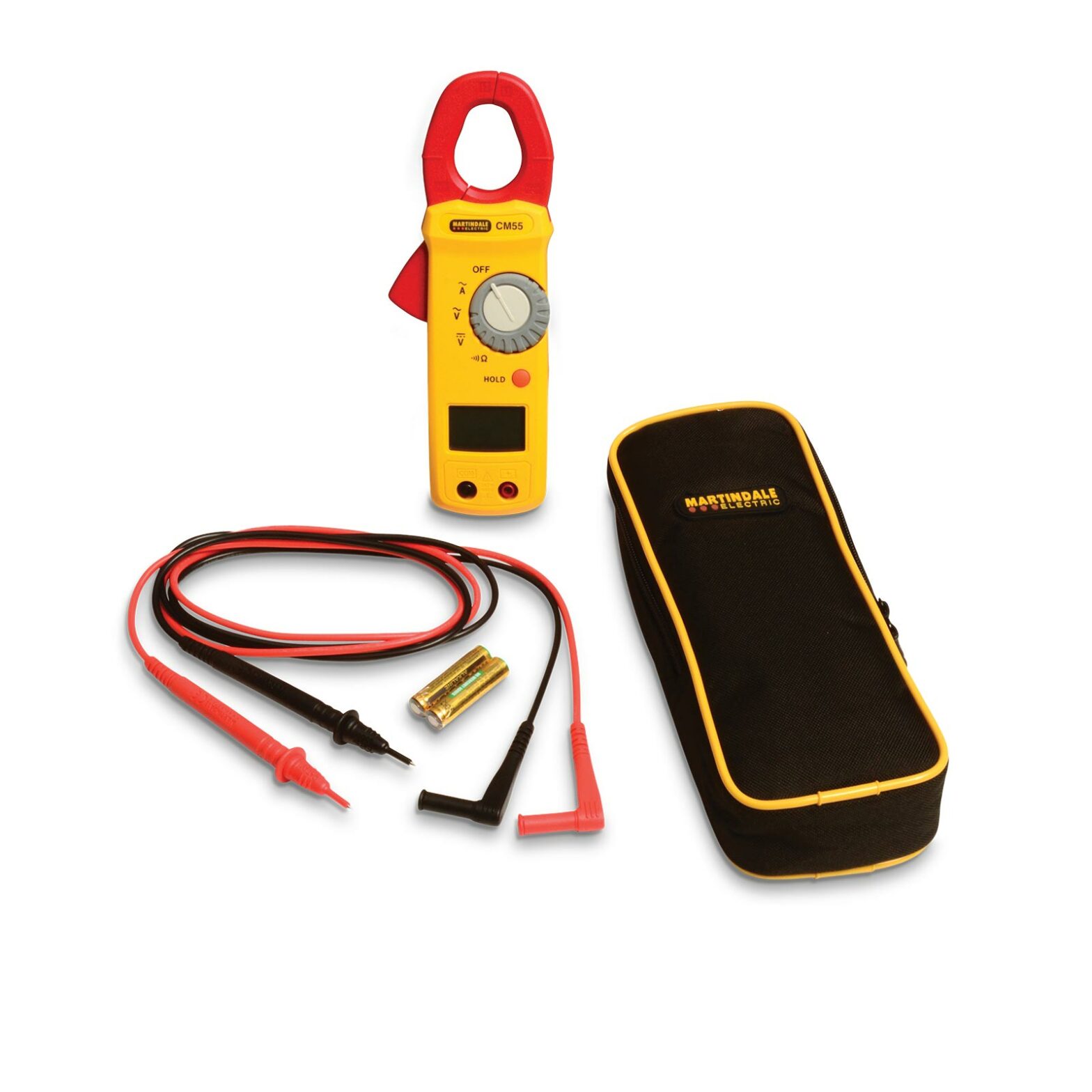

The CM55 is supplied with Martindale TL16 test leads, soft carry case, alkaline batteries and manual. All Martindale clamp meters come with a 2 year warranty.

The CM55 has a CATIII 600V safety rating and is the ideal tool for residential and commercial electricians.

Video

Specifications

Current AC 40.00A/400.0A (50-400Hz)
Accuracy ± 1.9% ± 3 dgt (50-60Hz)
Voltage AC 400.0V/600V (50-400Hz)
Accuracy ± 1.2% ± 3 dgt (50-60Hz)
Voltage DC 400.0V/600V
Accuracy ± 1% ± 3 dgt
Ohms 400Ω
Accuracy ± 1% ± 2 dgt
Continuity buzzer <25Ω
Max conductor 25mmØ
Operating environment 0°C to 40°C, <80% RH
Supply 2 x 1.5V AAA
Weight 260g approx
Dimensions 203 x 75 x 32mm
Includes TL16 leads, case, batteries and manual

Accessories

Comparison

 CM51CM55CM57
AC Current
DC Current
AC/DC Volts
Ohms
Frequency
Capacitance
Non-contact Voltage Detector
Auto ranging
Max Conductor Size27mm Ø25mm Ø
35x15mm
25mm Ø
35x15mm
True RMS
Min Max
Backlight
Auto Power Off
Other
SafetyCAT III 300VCAT III 600VCAT III 600V

Datasheet

Download

Manual

Download
