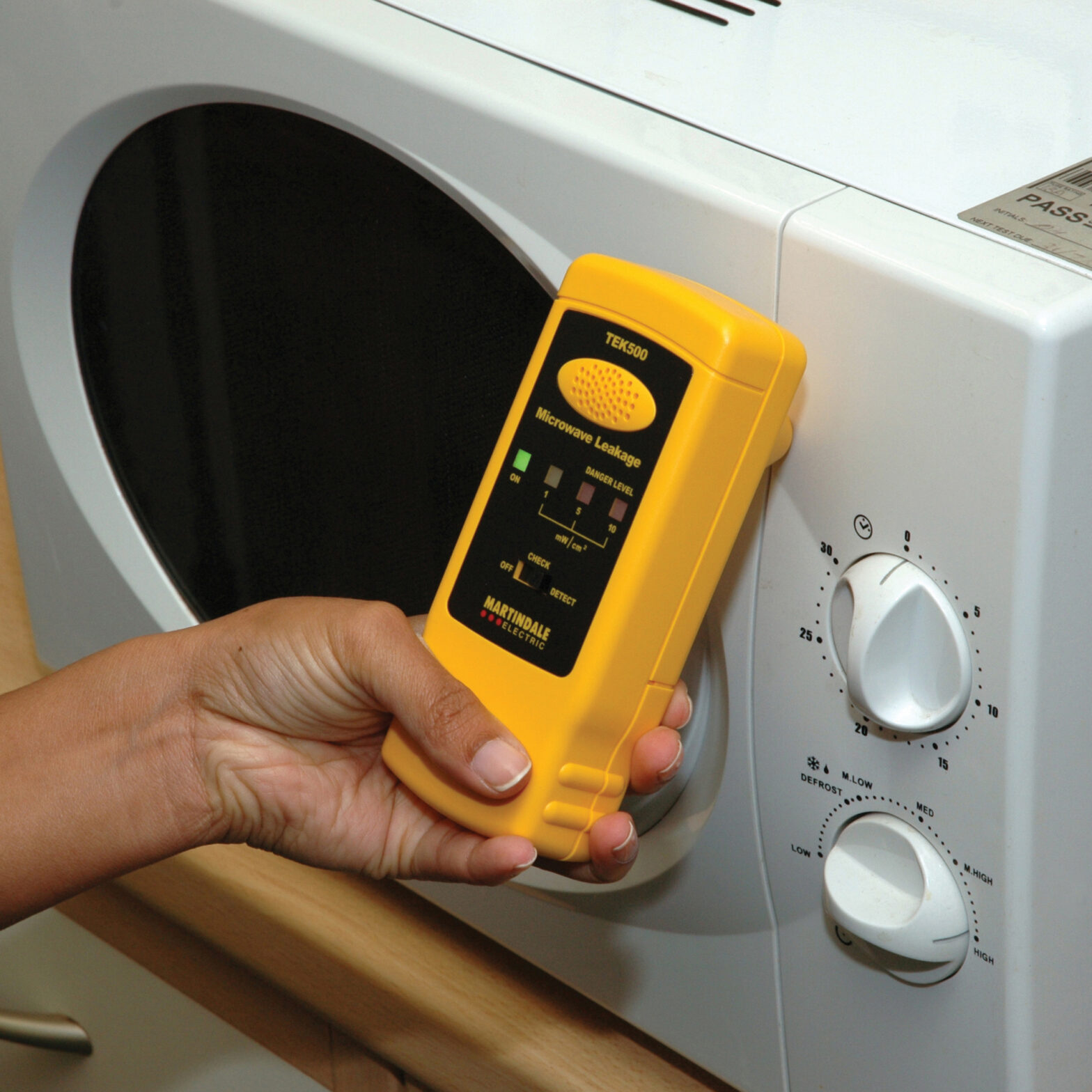

Martindale’s TEK500 is a PASS / FAIL microwave leakage detector for testing both commercial and domestic microwave ovens. The unit is designed to comply with UK & European standards on permitted exposure levels, and it will indicate leakage levels by a simple-to-use traffic light system which illuminates bright LEDs.
The self-test feature simulates a real microwave input in order to ensure the unit is working correctly at all times. The leakage tester will indicate at 1, 5 and 10mW/cm2, in accordance with BS EN5175.
The full test procedure for microwave ovens includes checking that the microwave is heating correctly. The kit includes a second beaker and digital thermometer with simple instructions for checking power output to achieve full compliance with the requirements.

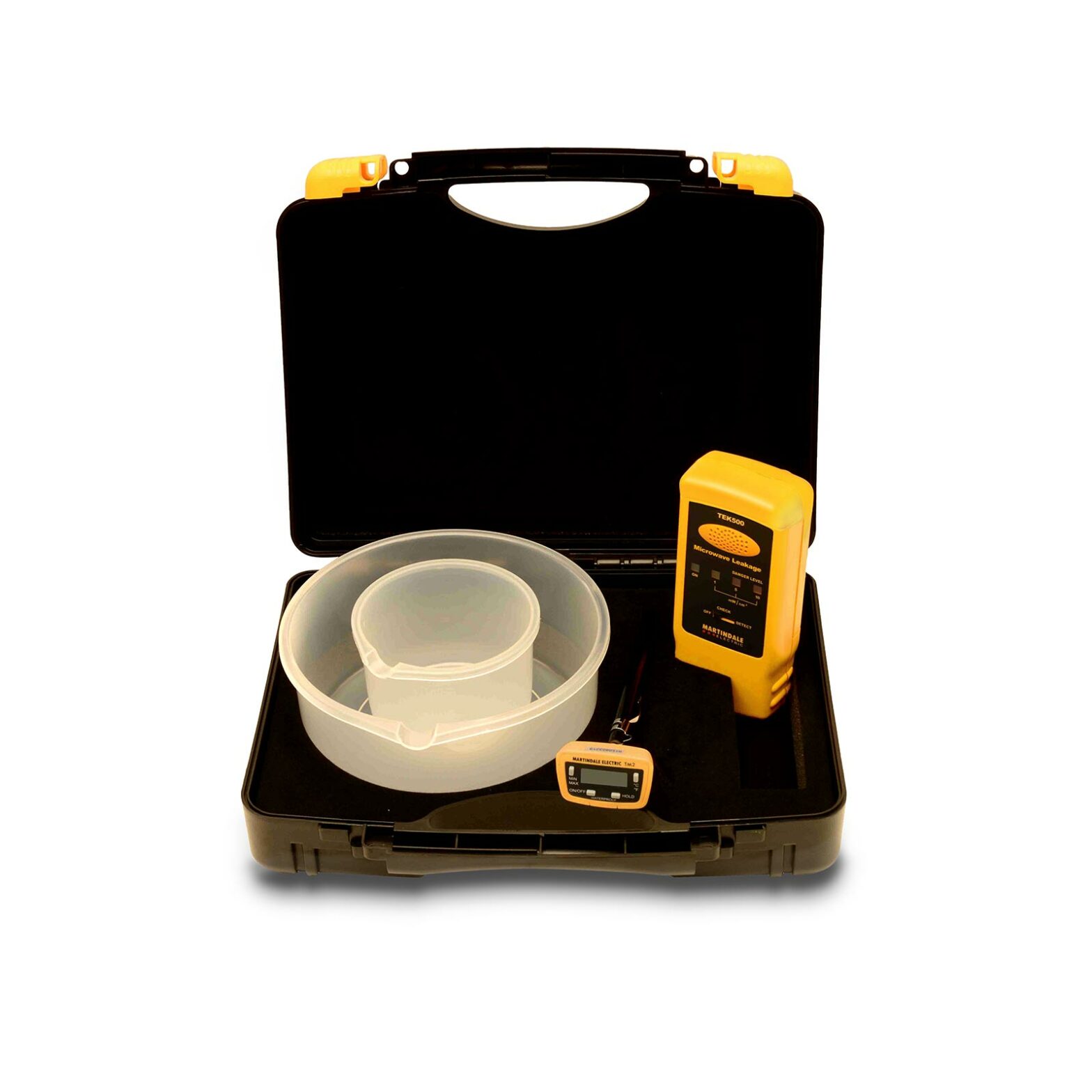

The microwave leakage detector kit is supplied with the leakage detector, two beakers, a digital thermometer, a carry case, an instruction manual and a battery. The manual includes the calculations to apply when measuring the microwave output.
Simple PASS / FAIL leakage detection
Complies with latest standards
Temperature accessories included
Self-test feature
Frequency of operation:
2450MHz ± 25MHz
Threshold Accuracy:
±1dB for planewave of all polarisations
Cardinal points:
>1mW/cm2, >5mW/cm2, >10mW/cm2
Response to step input:
2-3 seconds to reach 90% of steady state indication
Overload capacity:
50mW/cm2
Indicators:
LED (green) – battery OK LED (yellow) – 1mW/cm2 – acceptable microwave leakage below safety limit LEDs (red) at 5 & 10mW/cm2 and audible tone – hazardous microwave leakage above safety limit
Cone spacer:
prescribed test distance of 50mm is achieved when cone tip is in contact with appliance
Operating temperature:
-5°C to 40°C
Complies with:
BS EN 60335-2-25:2002 BS EN 60335-2-90:2002
Supply:
9V alkaline battery, MN1604 or equivalent
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162183218
