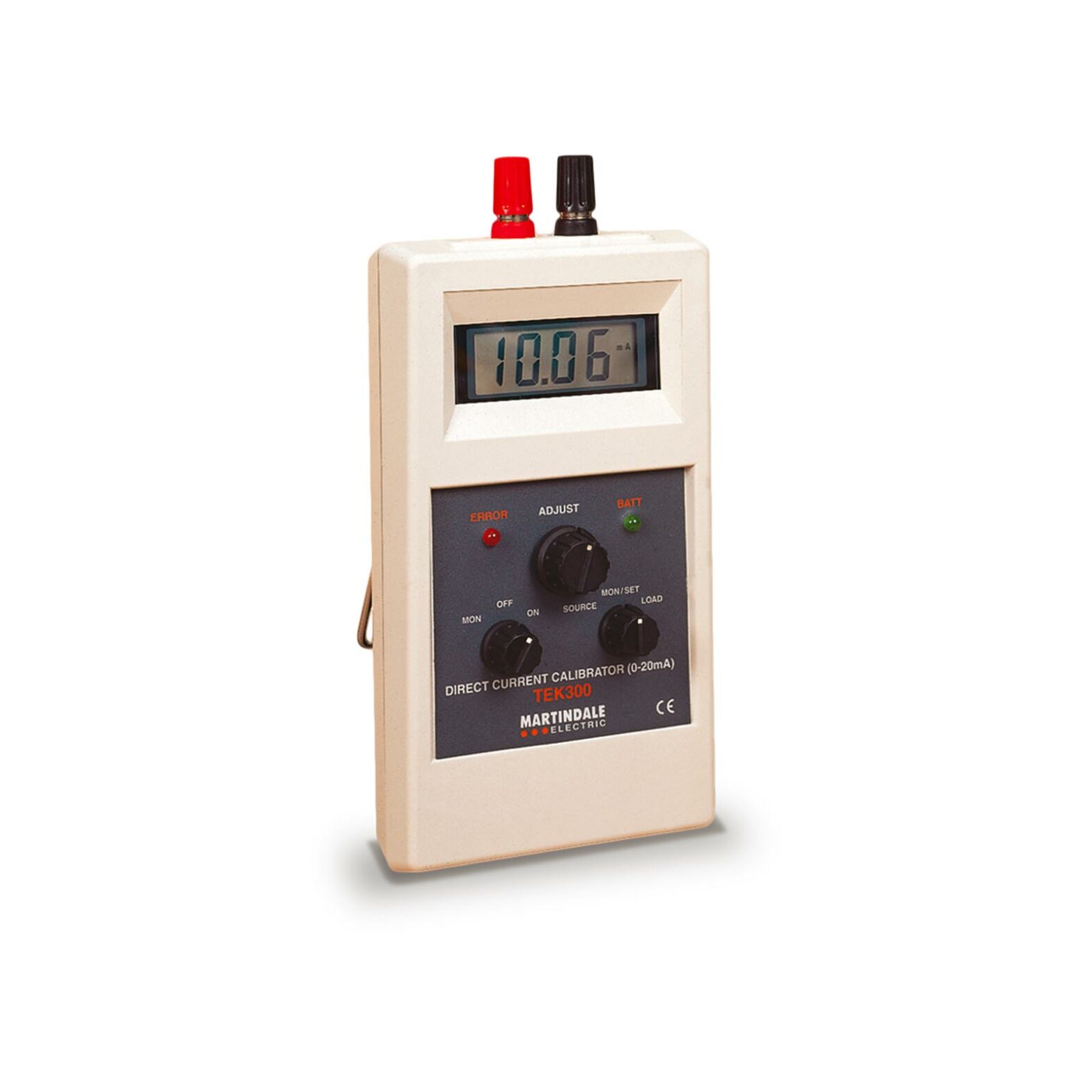

The Martindale TEK300 process control loop calibrator features sink, source and monitor modes for 4 – 20mA (0-20mA), ideal for most process control applications and general-purpose control signal injection.
The handheld unit is fully portable and has a large 3.5-digit LCD display with overload protection for extra safety.
Handheld / portable
Large display
Batteries included
DC/DC converter output:
28.5V (+0.1V)
Current range:
0-20mA F.S. (+0.1%)
Resolution:
10µA
Temperature drift:
150ppm/°C
Linearity:
0.15%
Indicators:
LED (green) – battery OKLED (red) – output error
Output connectors:
4mm terminal posts (19.05mm apart)
Supply:
2 x 9V alkaline batteries, MN1604 or equivalent (included)
Dimensions
180 x 100 x 44mm
Weight:
490g
Full product specification can be found in the product manual or by contacting our team here
