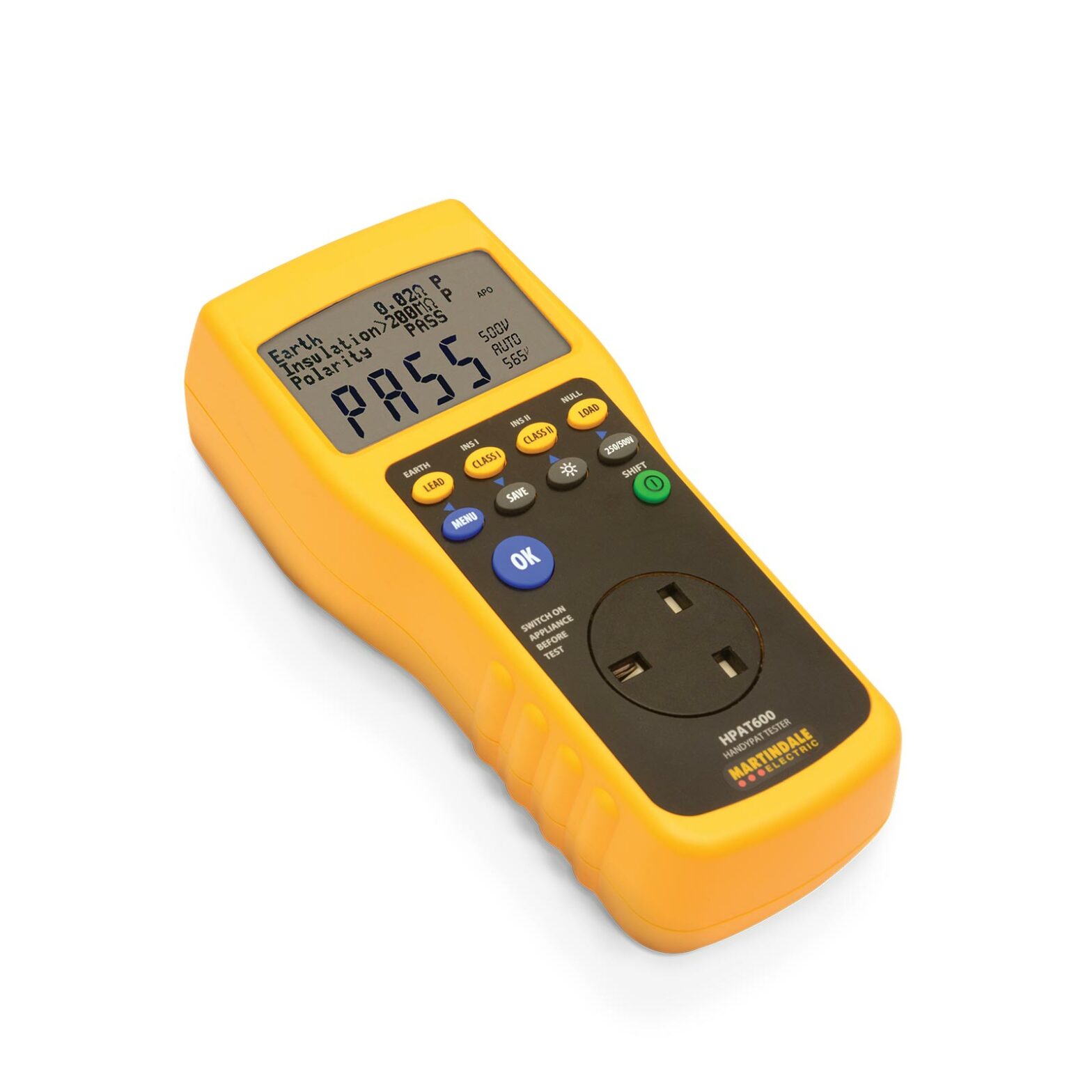

Martindale HPAT600KIT1 Complete PAT Testing Kit
- Information
- Key spec
- Comparison
- Accessories

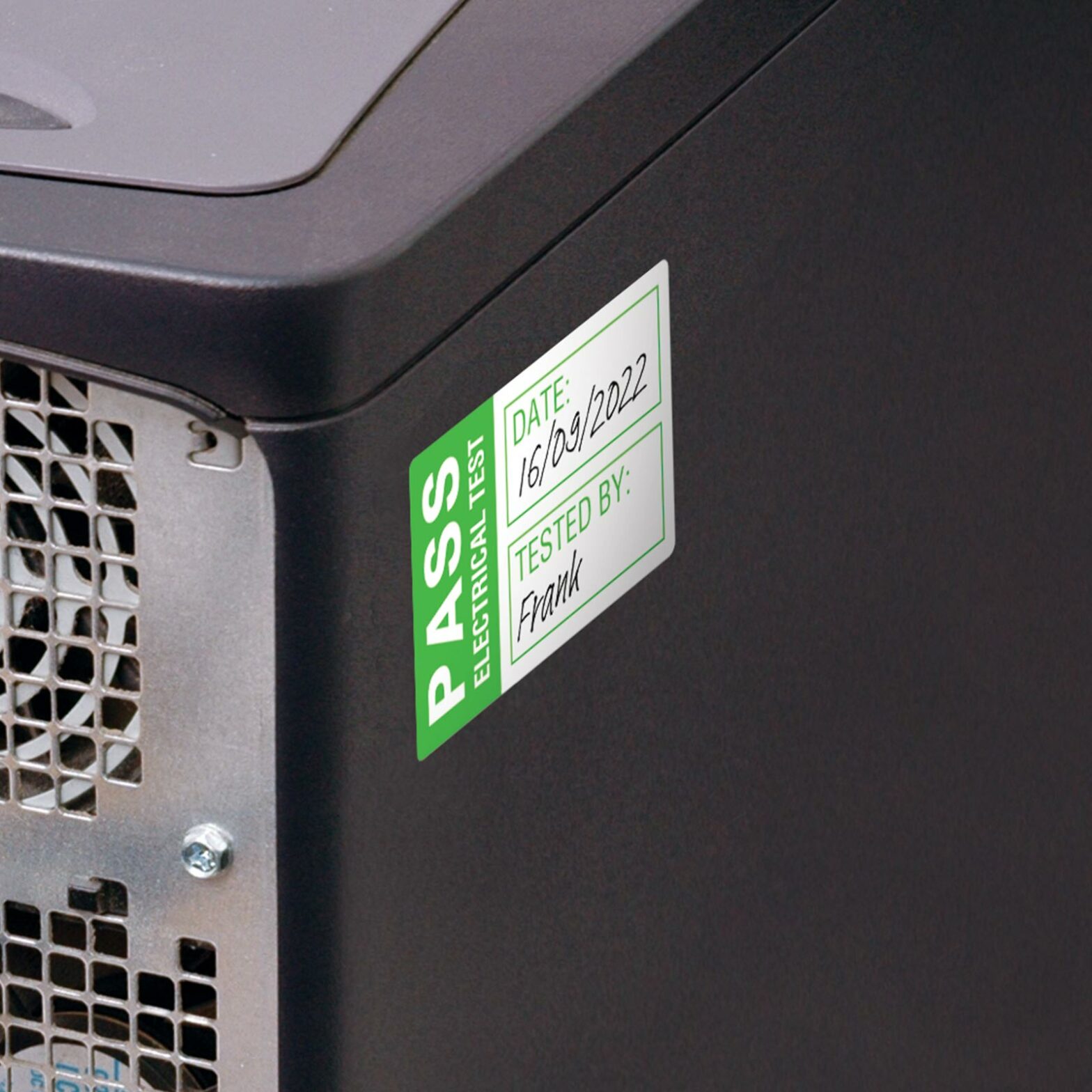

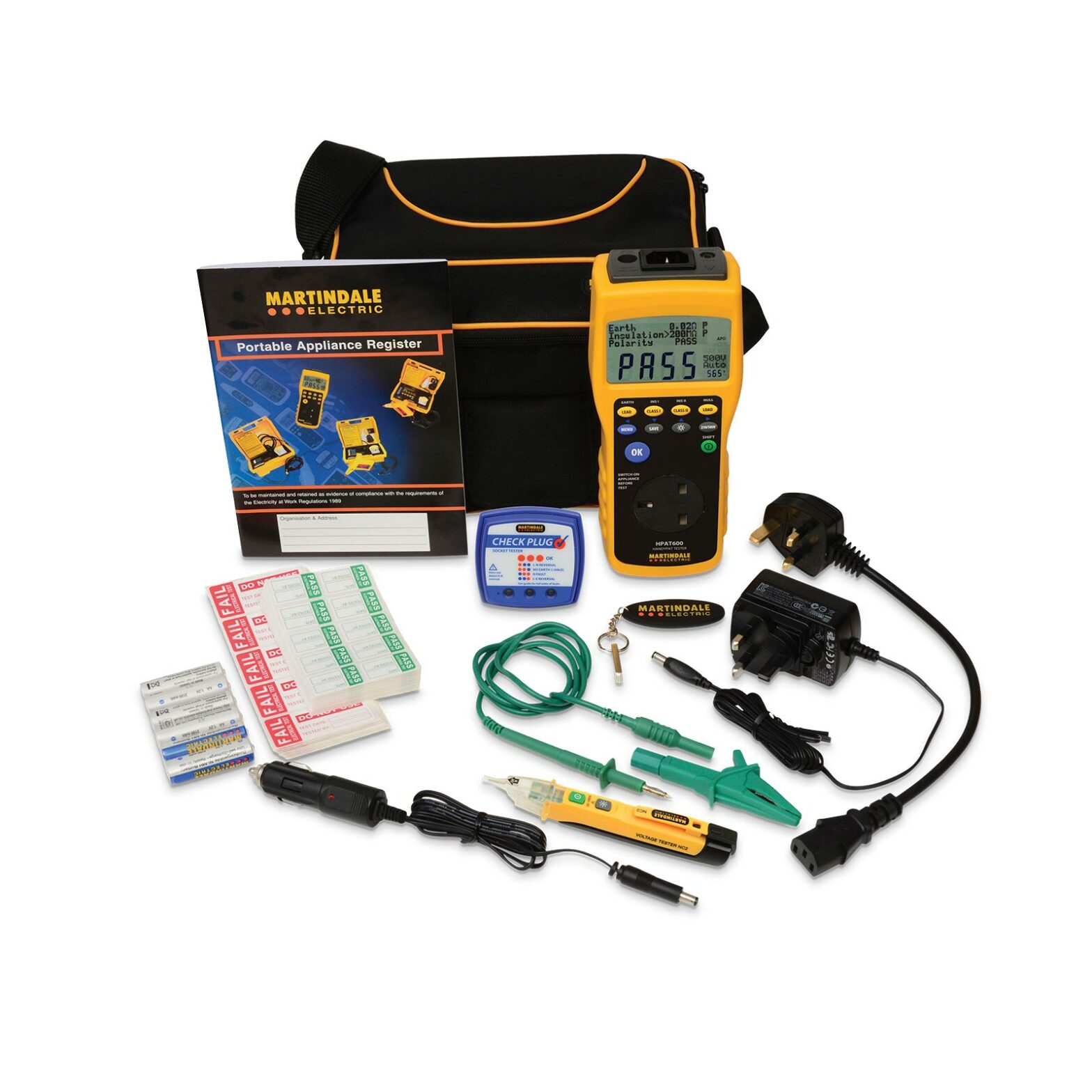

The HPAT600KIT1 advanced PAT testing kit offers excellent value, providing a complete solution for PAT testing wherever you are working. The comprehensive kit comes with pass and fail labels, a record book, a useful key fob null pin and an in-car charger.
In addition, it includes the industry standard CP501 mains socket tester and the NC2 non-contact voltage indicator for detecting live voltages, all contained in a professional soft carry case.
Complete PAT testing kit
Compact design
250V / 500V insulation test
Automatic Class 1, Class II and power lead tests
Earth continuity
Test current: 200mA DC Range: 0-19.99Ω Resolution: 0.01Ω Accuracy: ± (5% rdg + 2 dgt) Default pass level: Class I ≤ 0.1Ω, Lead ≤ 0.1Ω User selectable pass levels: 0.1Ω to 0.9Ω in 0.1 steps
Default pass level
Lead: ≥ 1.0 MΩ Class I: ≥ 1.0 MΩ Class II: ≥ 2.0 MΩ
User selectable pass level
0.3MΩ to 1MΩ in 0.1MΩ steps 1MΩ to 10MΩ in 1MΩ steps
Simulated load test
Voltage: 4V DC (open circuit) Current: 200mA DC (short circuit)
Temperature range
-10 to 40°C
Overload protection
300V AC/DC
Dimensions
90 x 210 x 54mm
Weight
700g (inc batteries & leads)
Complies with
BS EN 61010
Includes:
TC57 carry case, PSUHPAT230 mains charger, rechargeable batteries, EX332 IEC lead, TL67 earth bond probe, PSUHPAT12 in-car charger, earth null adaptor and manual. Pass and Fail labels, PAT register book, Mains socket wiring tester, Non-contact live voltage indicator
Warranty
2 Years
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162188305
