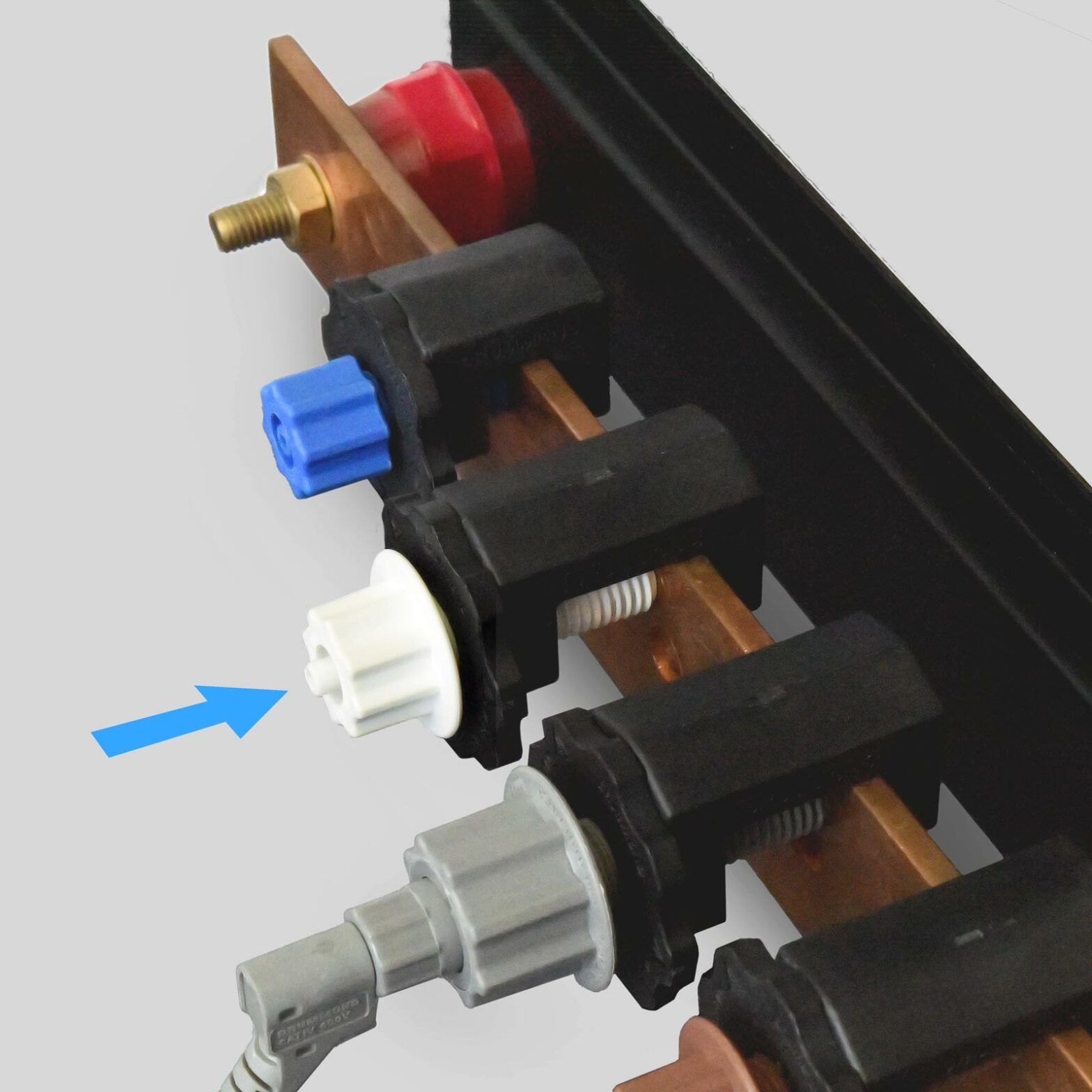

- This set of four Drummond G-Clamps make connecting to bus bars straight forward. The clamp-on design eliminates the need to drill bus bars and makes for a much safer, reliable connection via a standard 4 mm socket. The G Clamp can be tightened by hand when wearing PPE gloves, eliminating the need to use tools in the bus bar chamber.
- Ideal for connecting power monitoring and measuring equipment, the colour coded clamps make phase identification easy.

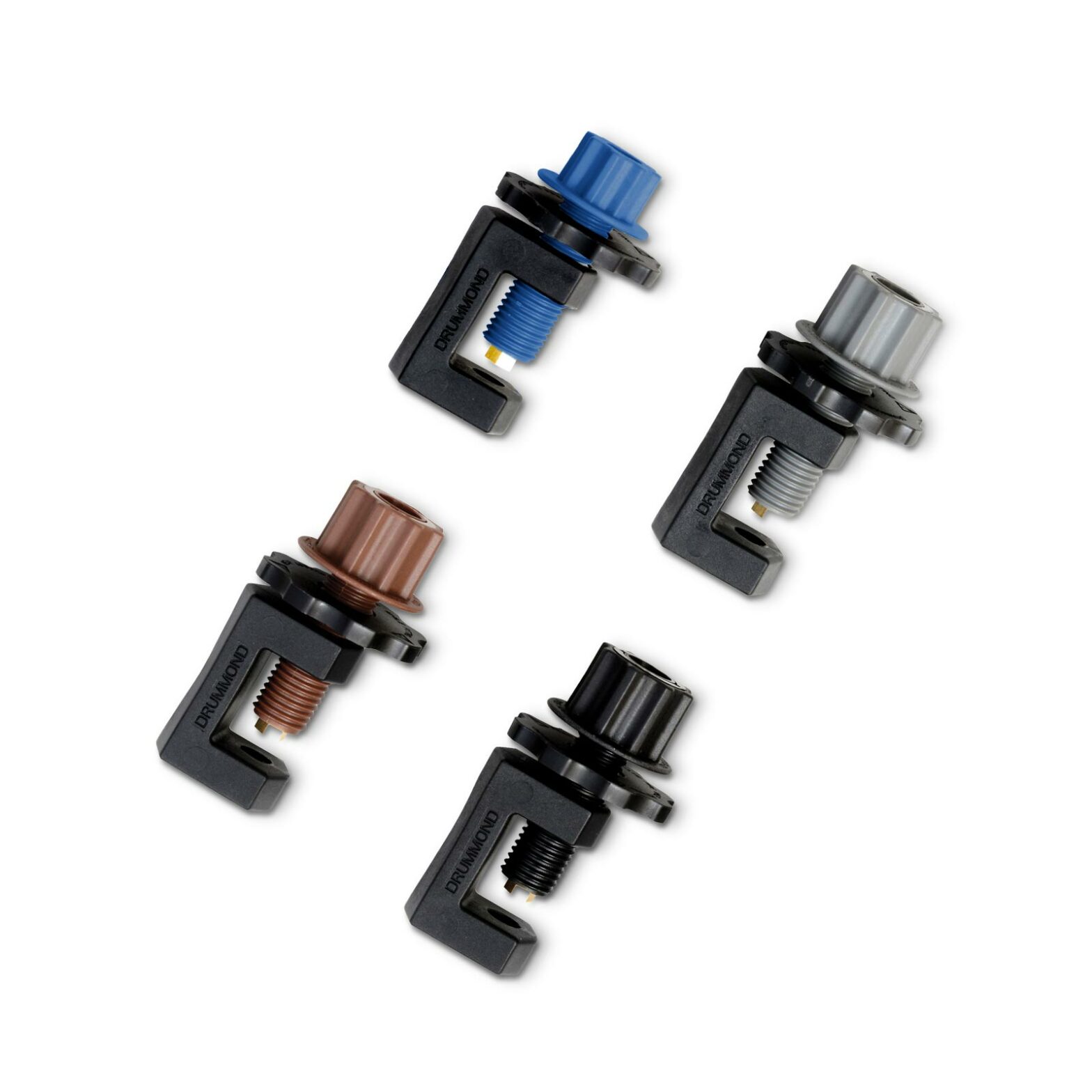

This is a 3-phase connection kit set including:
-

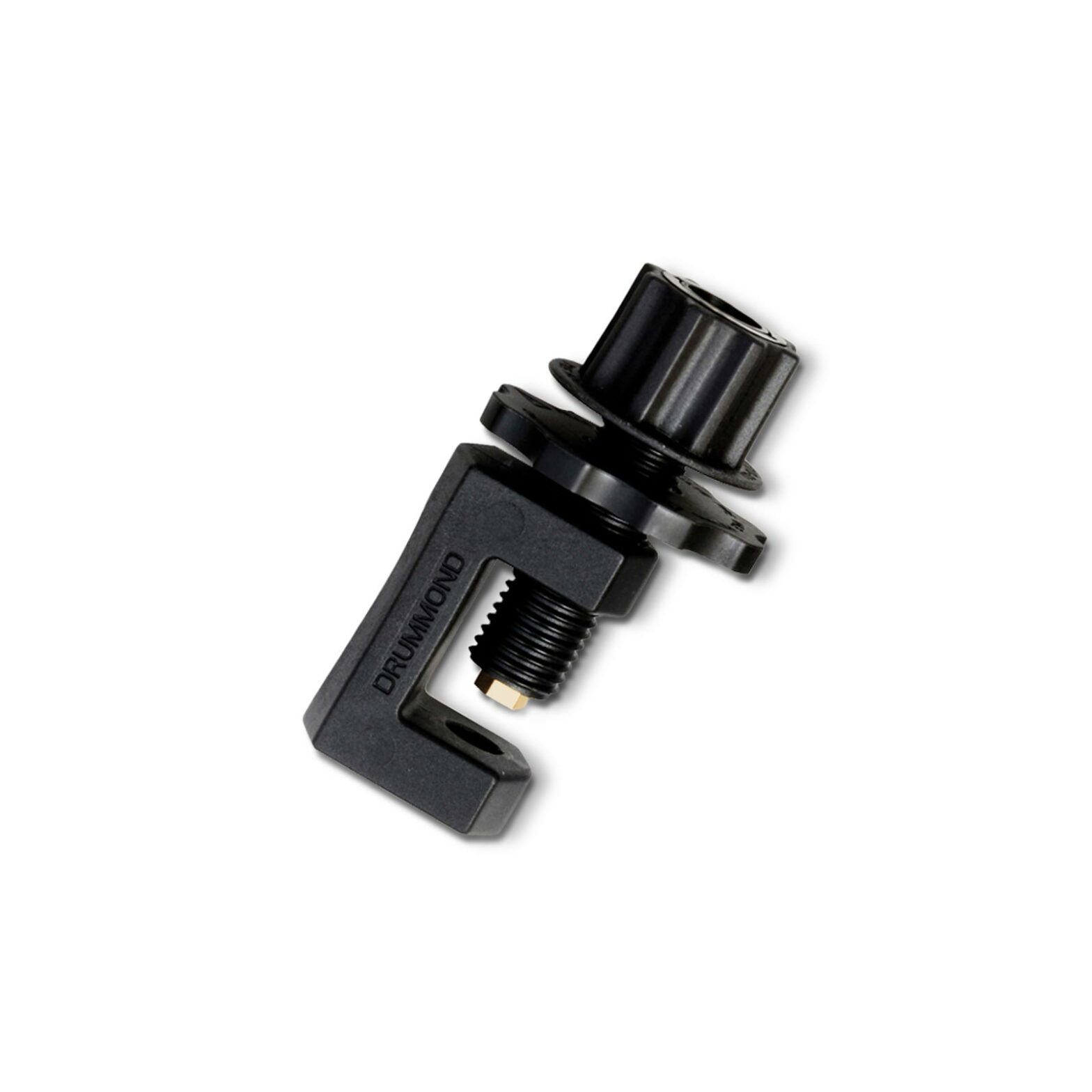

- Black G-Clamp (unfused)

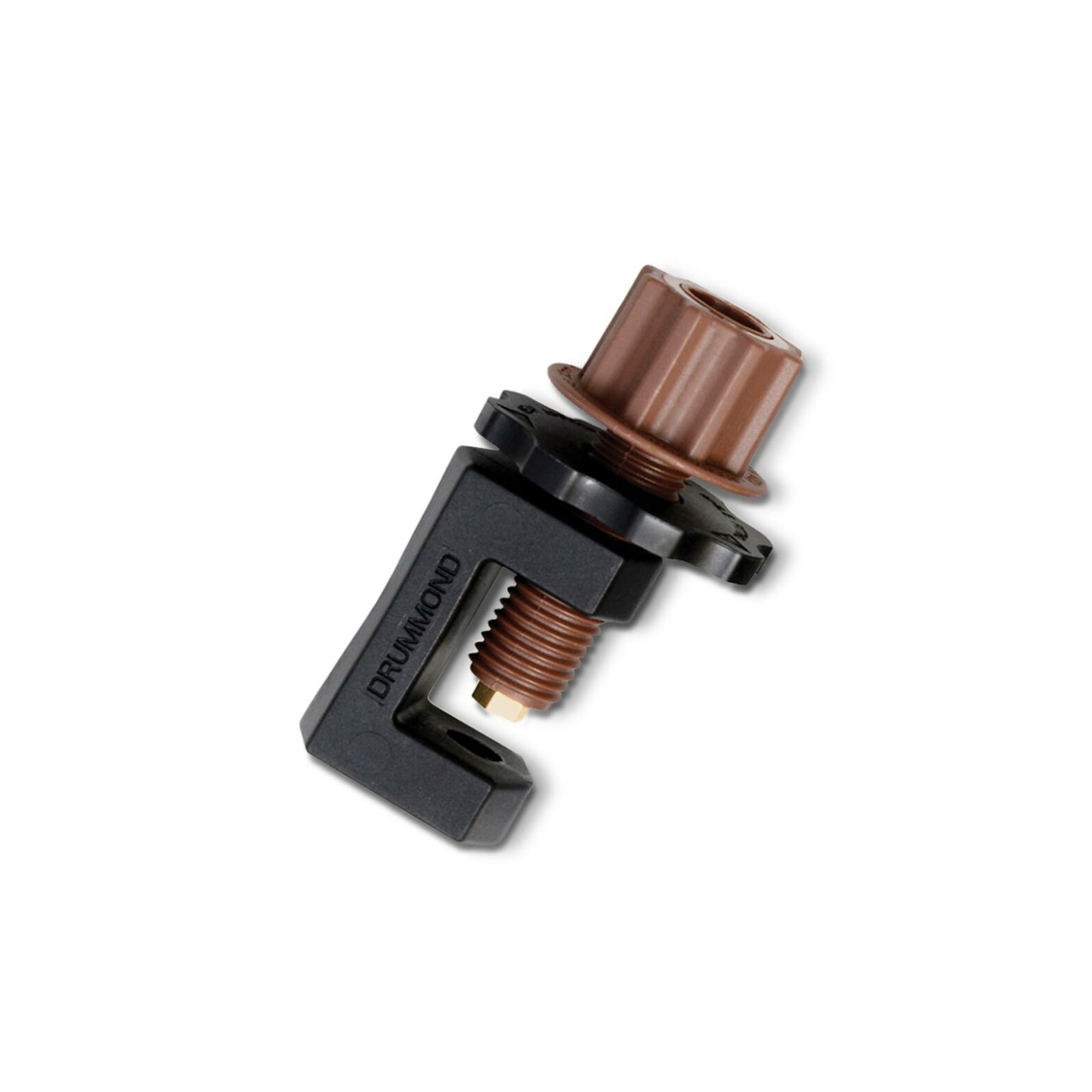

- Brown G-Clamp (unfused)

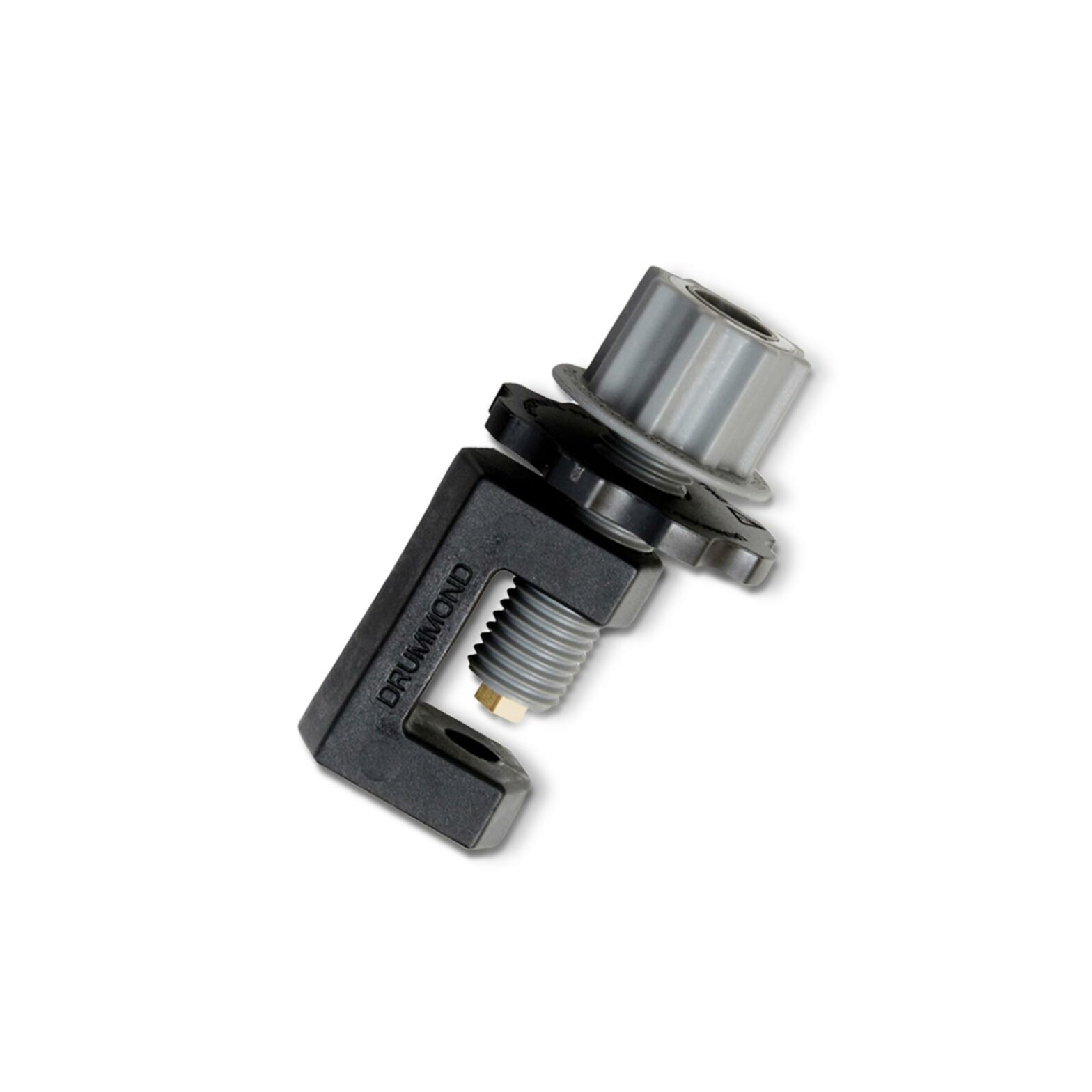

- Grey G-Clamp (unfused)
- Blue G-Clamp (unfused) for the neutral connection
Easy bus bar connection
Robust and easy to use
CAT iV 600V safety rating
Four clamps (three phase + neutral)
Applied electrical contact force
40N +/- 5N
Maximum working voltage
Maximum working voltage
Maximum working current
10A
Length behind bus bar
12mm
Length in front of bus bar
61mm (Unfused Blue, Black, Brown&Grey Clamp)(+ 35mm as minimum allowance for 4mm plug)
Height above top of bus bar
14mm
Width
50mm for locking ring nut
Clearance in front of bus bar
Required to withdraw fuse holder 75mm
Materials
Nylon 66, reinforced with glass fibre
KIT3 includes
DRUGCLAMP/BK(Unfused) DRUGCLAMP/BR(Unfused) DRUGCLAMP/GY(Unfused) DRUGCLAMP/BL(Unfused)
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162000331
