Drummond’s G–Clamp are used to establish a good connection to Bus bars via an industry-standard 4mm banana socket. Each clamp is fixed with a spring-loaded fused brass connection and uses a safety-lock ring to secure it to the Bus bar.
The G-clamps are colour–coded and are manufactured with a strong internal spine to avoid distortion, they provide a simple ‘no tools required’ application for ease of use. Available as single units or in kits.

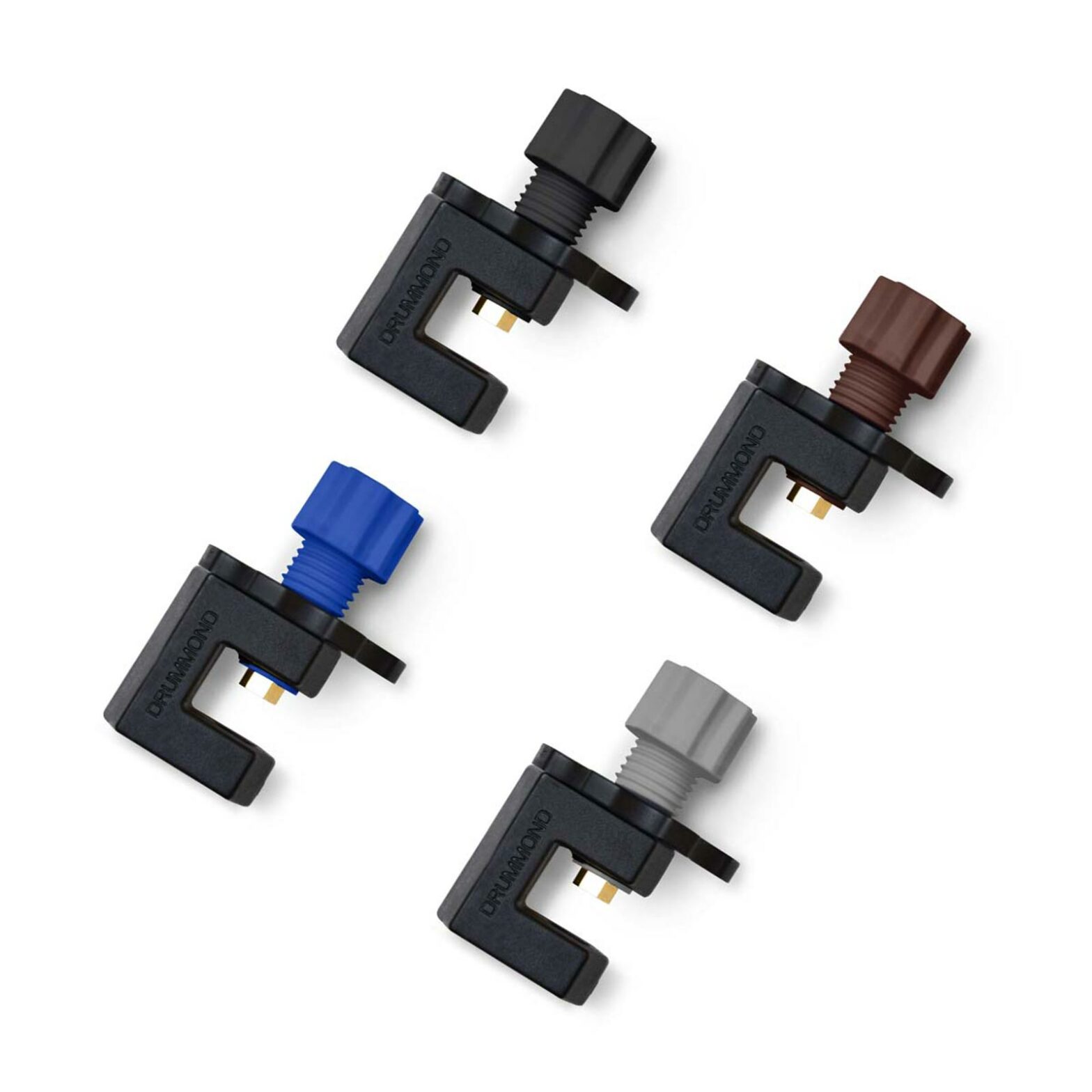

Available in four colours:

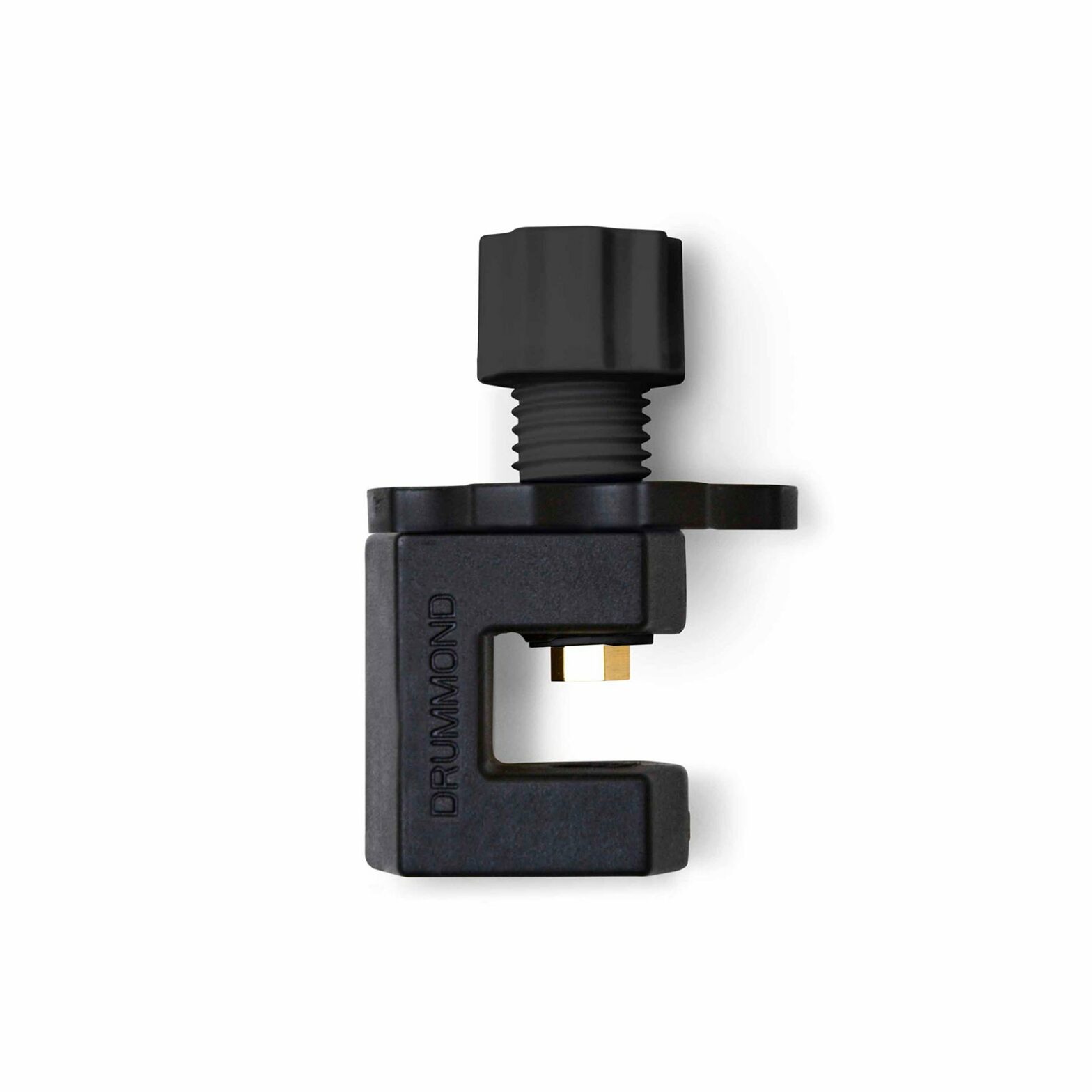

Black, slimline unfused – DRUGCLAMP-S-BK
Blue, slimline unfused – DRUGCLAMP-S-BL
Brown, slimline unfused – DRUGCLAMP-S-BR

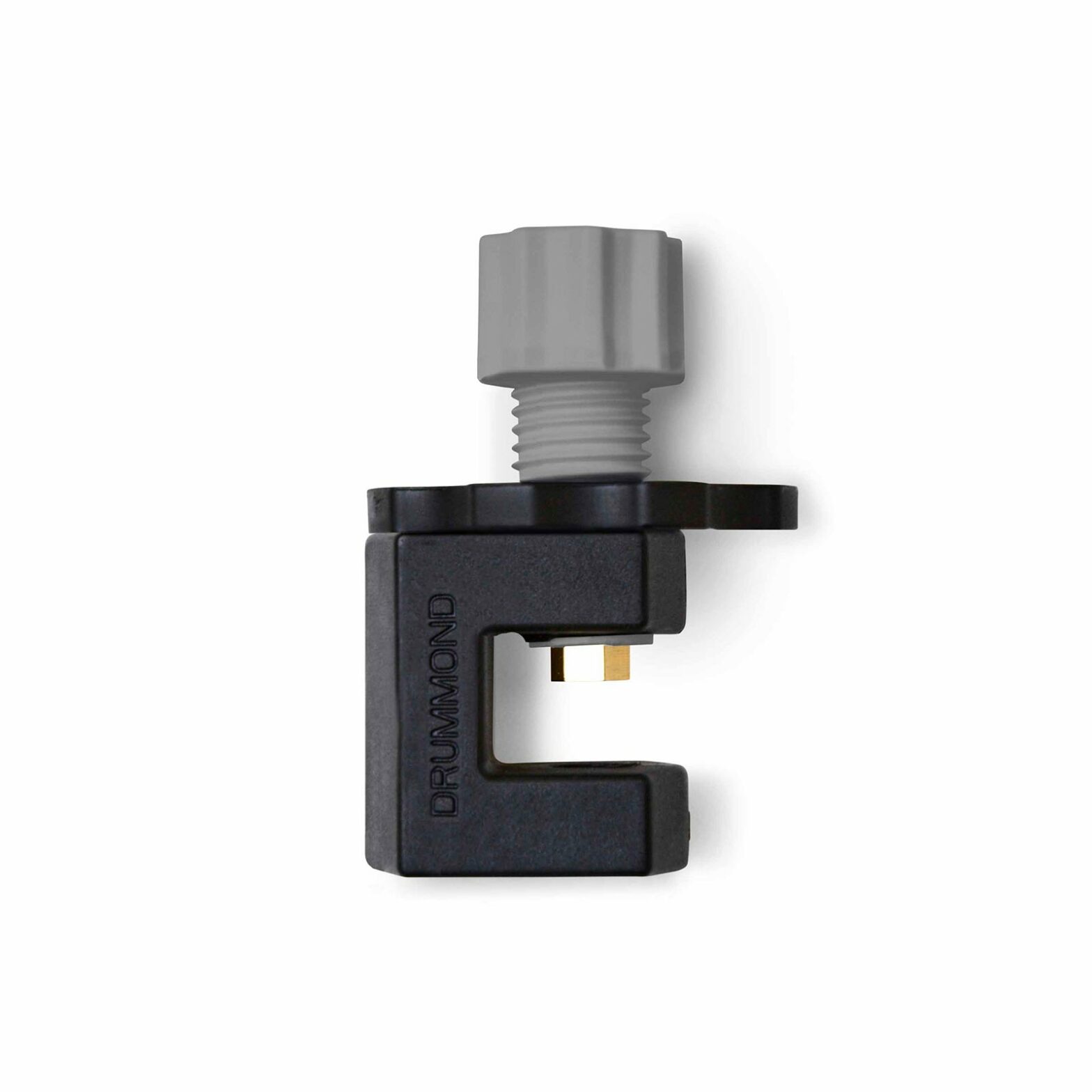

Grey, slimline unfused – DRUGCLAMP-S-GY
Easy connection to bus bars
Excellent durability
Not fused
Ideal for measurement equipment
Available in four colours
Applied electrical contact force
40N +/- 5N
Maximum working voltage
600V AC
Maximum working current
10A
Length behind bus bar
12mm
Length in front of bus bar
42.5mm (+ 35mm as minimum allowance for 4mm plug)
Height above top of bus bar
14mm
Width
50mm for locking ring nut
Materials
Nylon 66, reinforced with glass fibre
Full product specification can be found in the product manual or by contacting our team here
EAN:
Black - 5036162188718
Blue - 5036162188725
Brown - 5036162188732
Grey - 5036162188749
