Drummond G Clamp Connection Kit 2

  • 3-phase connection kit: black / brown / grey fused, blue unfused & heavy duty leads
  • Easy reliable connection
  • No need for tools
  • Spring loaded contact pin and locking ring
  • 4mm socket termination
  • Colour coded for phase identification

CAT IV 600V
EAN: 5036162187483 SKU: DRUGCK-F-KIT2 Category: Tag:

Description

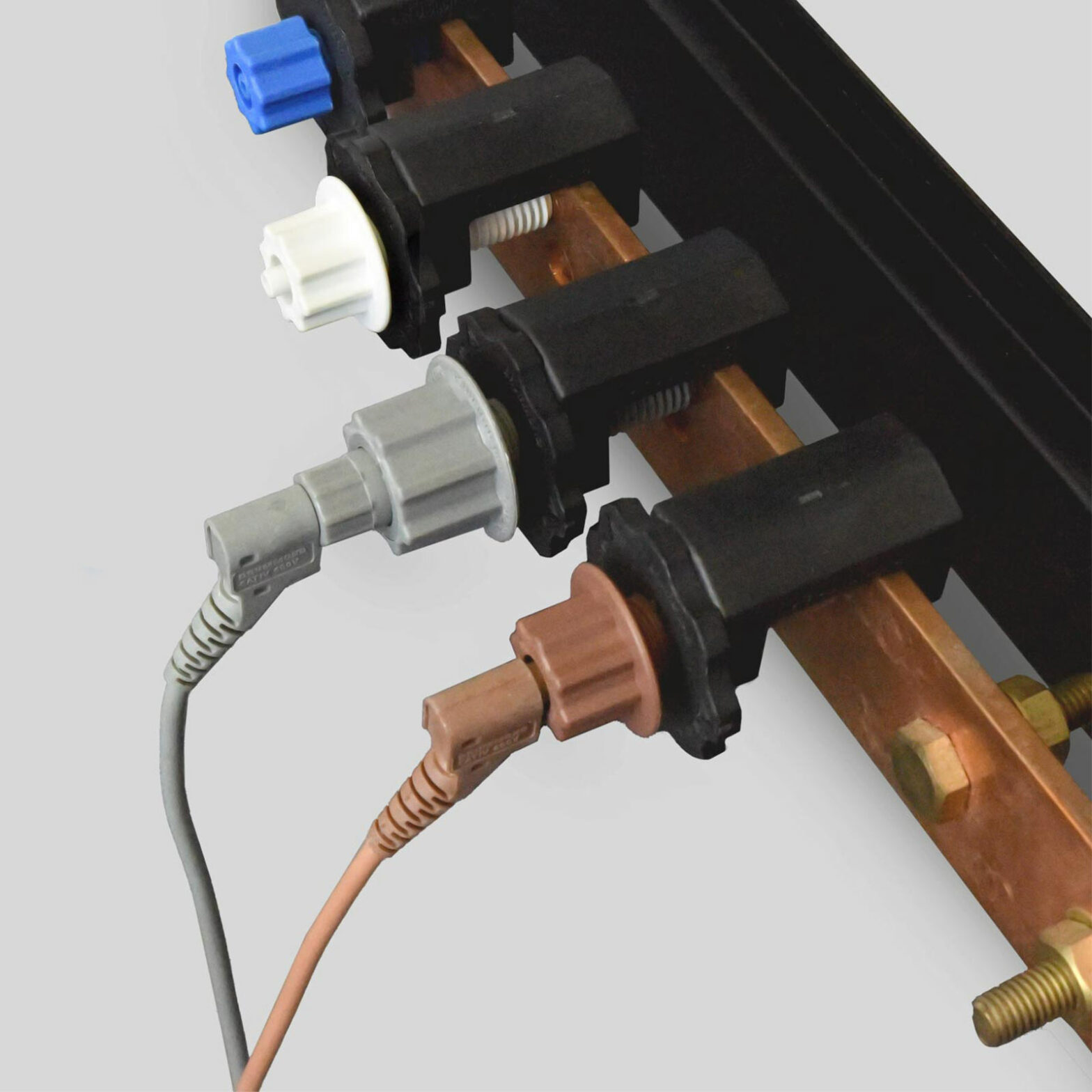

The Drummond G-Clamp makes connecting to bus bars straight forward. The clamp-on design eliminates the need to drill bus bars and makes for a much safer, reliable connection via a standard 4 mm socket. The G Clamp can be tightened by hand when wearing PPE gloves, eliminating the need to use tools in the bus bar chamber.

Ideal for connecting power monitoring and measuring equipment, the colour coded clamps make phase identification easy. The insulated materials reduce the hazard to the operator and the spring loaded contact pin and locking ring ensure reliable results throughout extended logging periods.

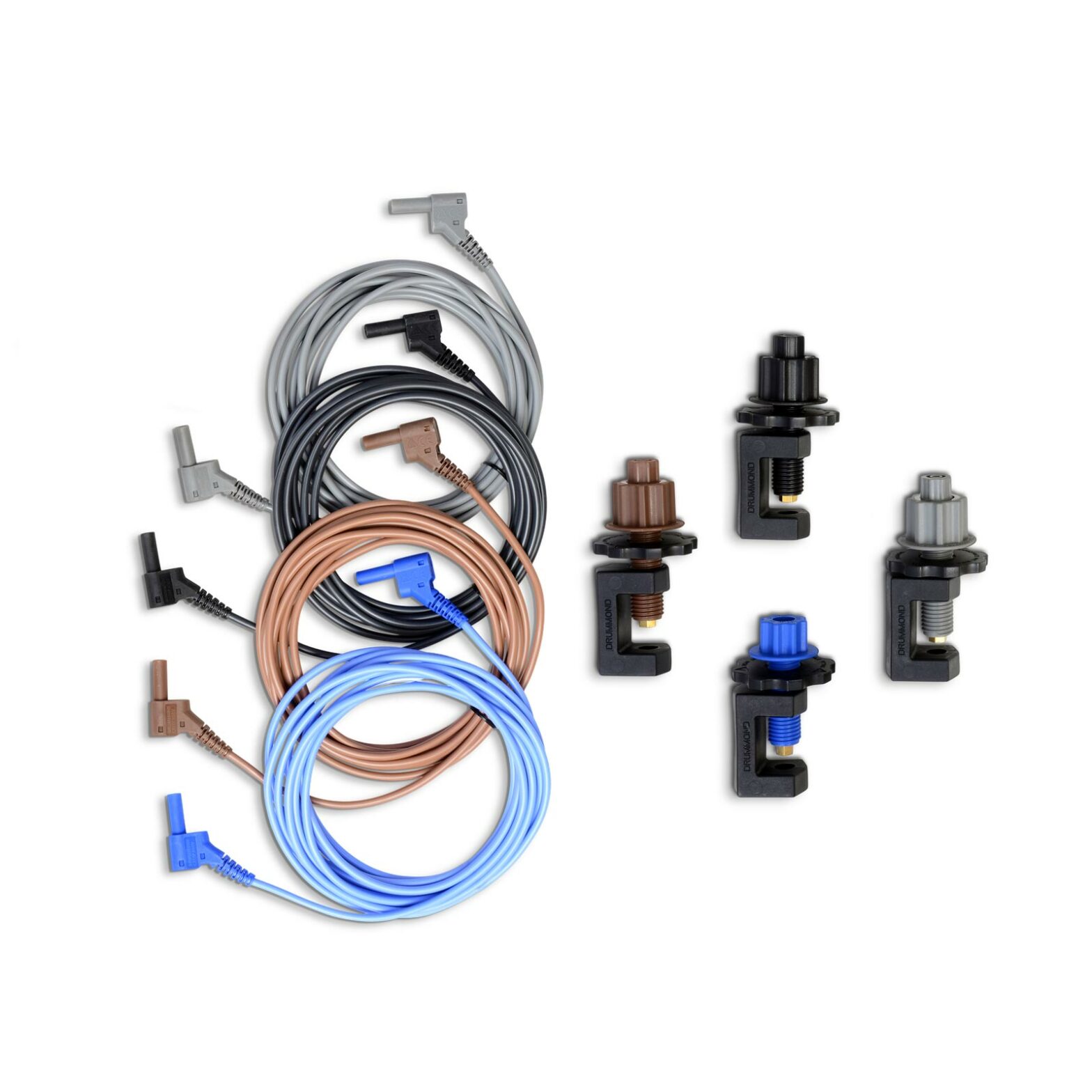

This is a 3-phase connection kit set including:

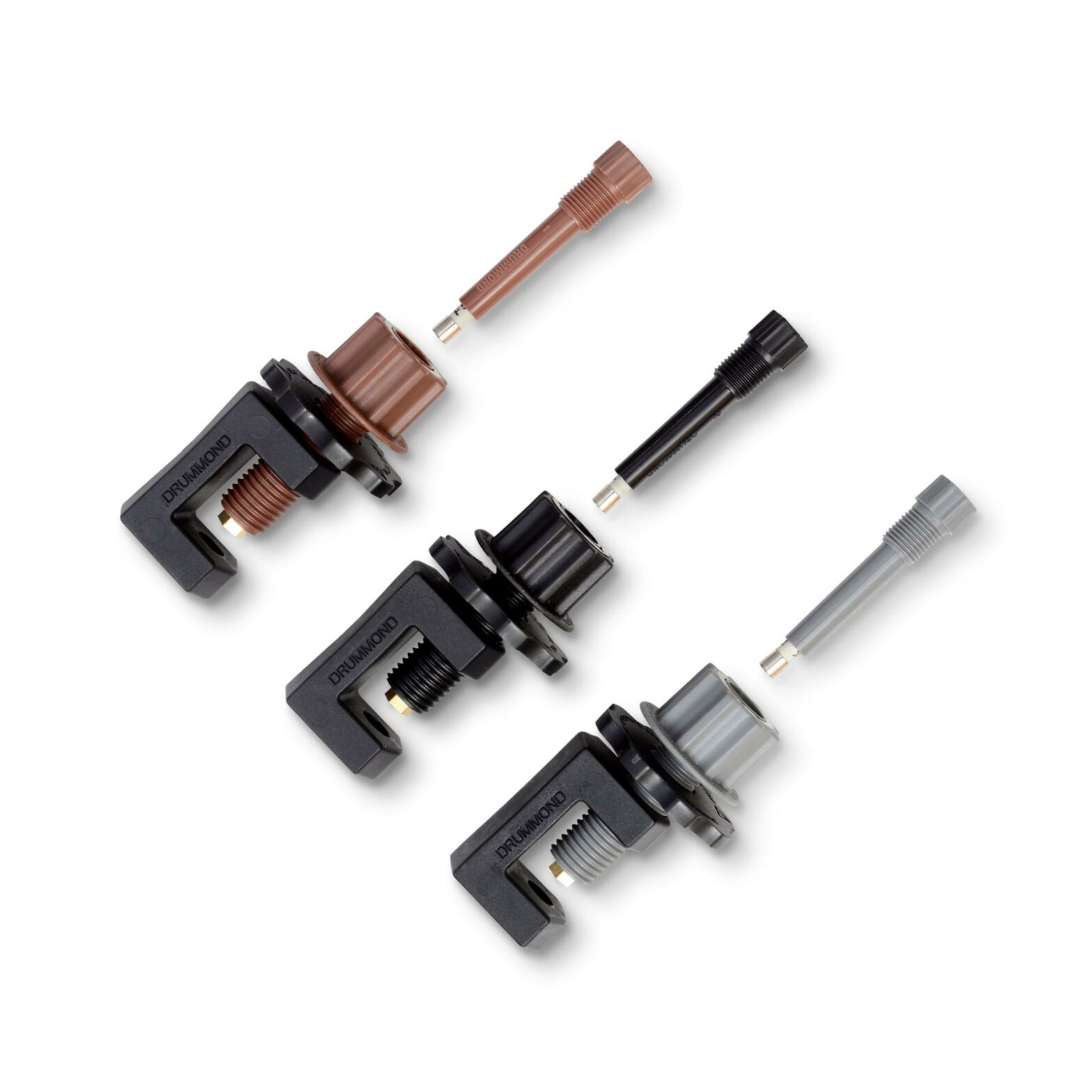

  • Black G-Clamp (fused)
  • Brown G-Clamp (fused)
  • Grey G-Clamp (fused)

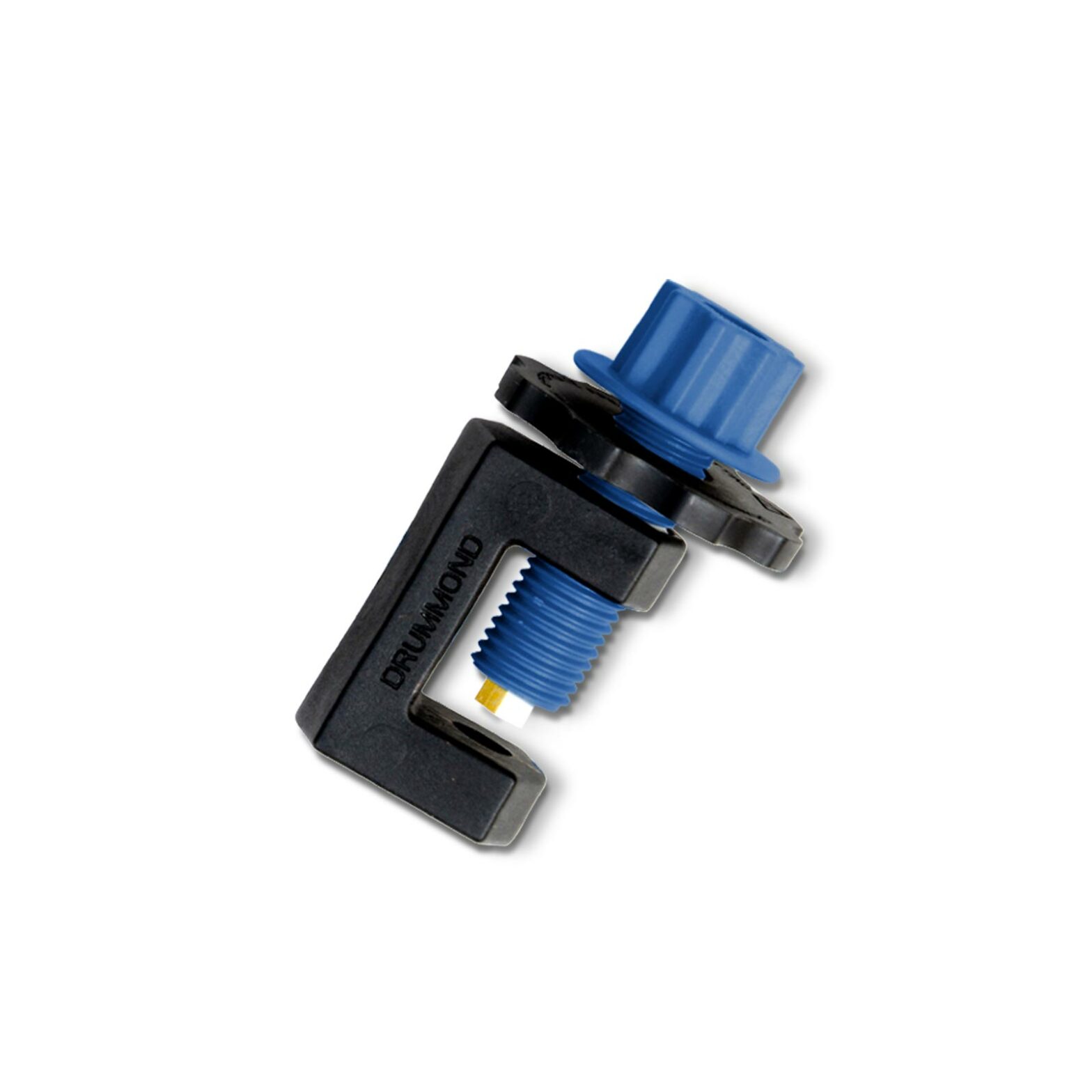

  • Blue G-Clamp (unfused) for the neutral connection

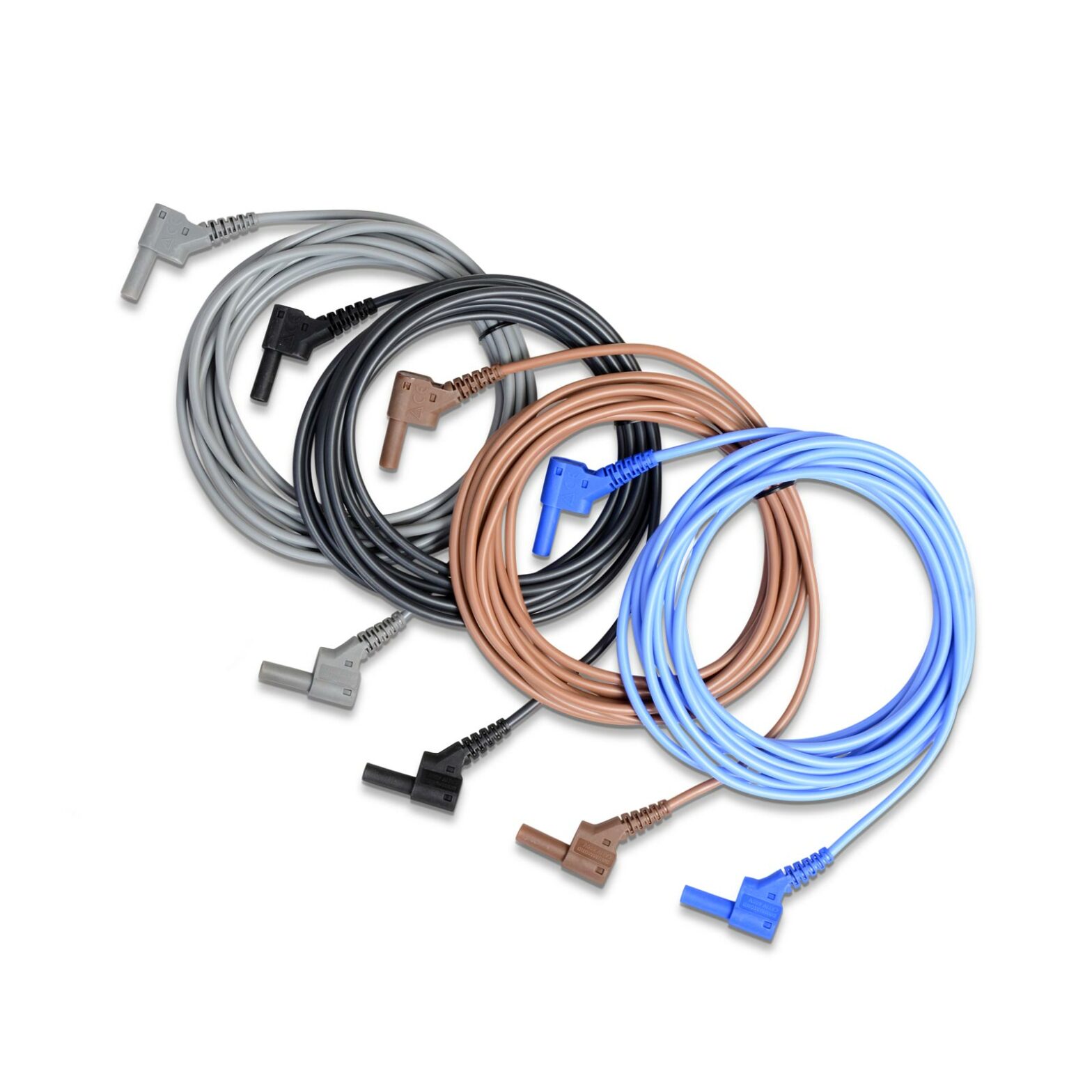

  • 4x 4m heavy-duty colour coded CAT IV test leads.

The smaller barrel of the unfused design requires 25mm less clearance in front of the bus bar. The fused version is supplied with a replaceable 0.5A fuse within the clamping screw providing protection at the source. The heavy-duty leads are terminated with 45 degree 4mm safety plugs.

Risk assessment is required before installation.

Datasheet

Download

Manual

Download

£207.00
