The Drummond G–Clamp kits make connecting to bus bars straightforward. The clamp-on design eliminates the need to drill bus bars and makes for a much safer, more reliable connection via a standard 4 mm socket. The G–Clamp can be tightened by hand when wearing PPE gloves, eliminating the need to use tools in the bus bar chamber.

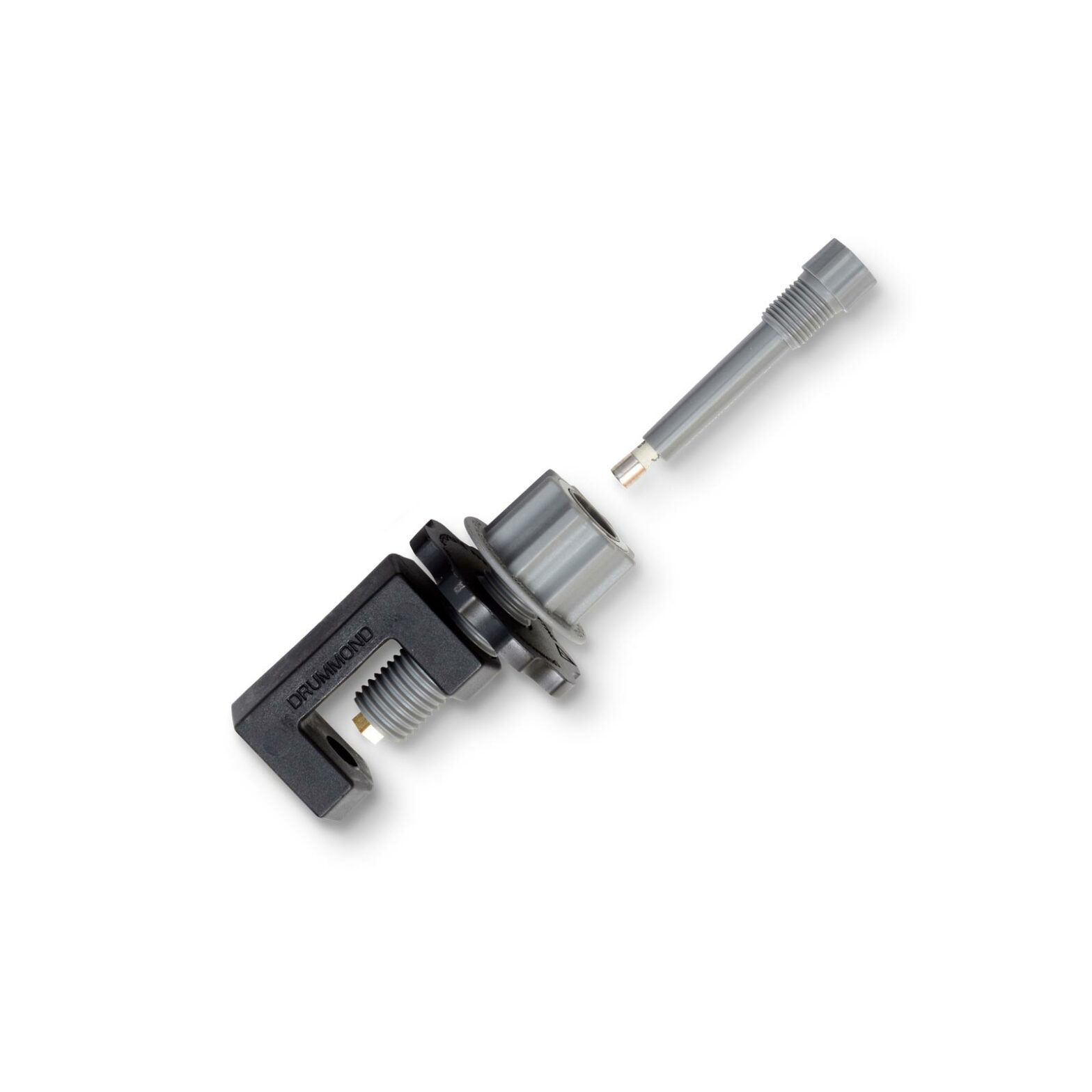

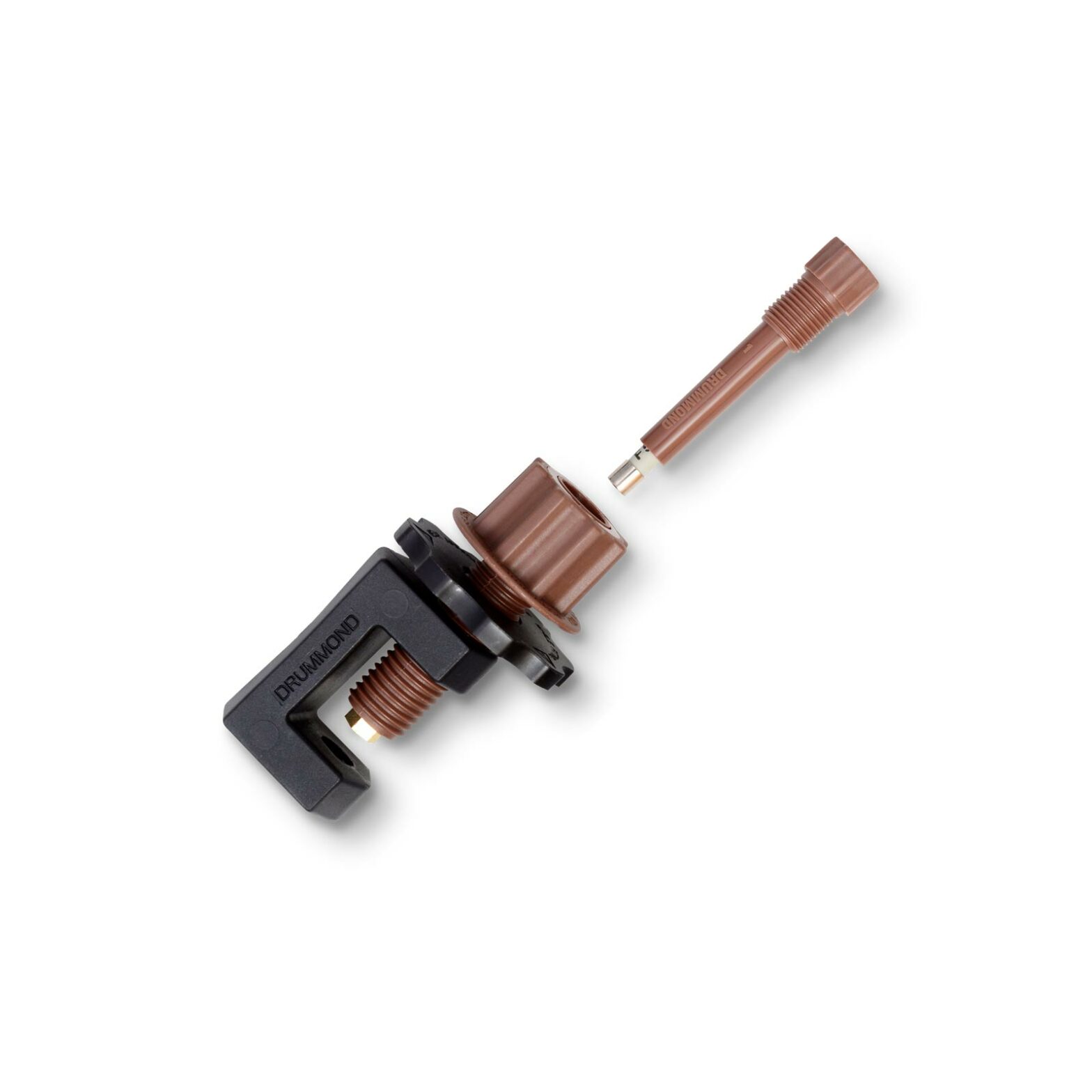

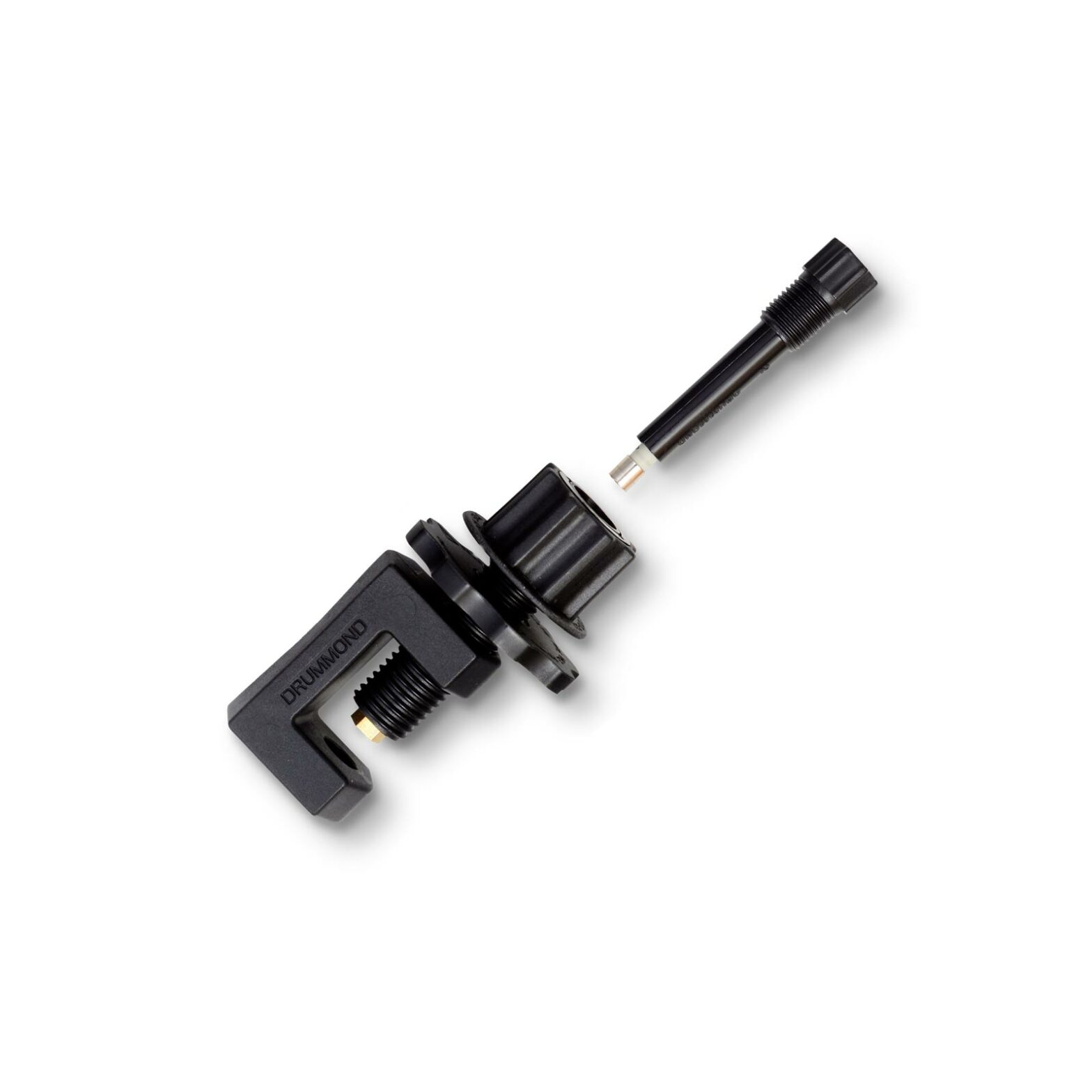

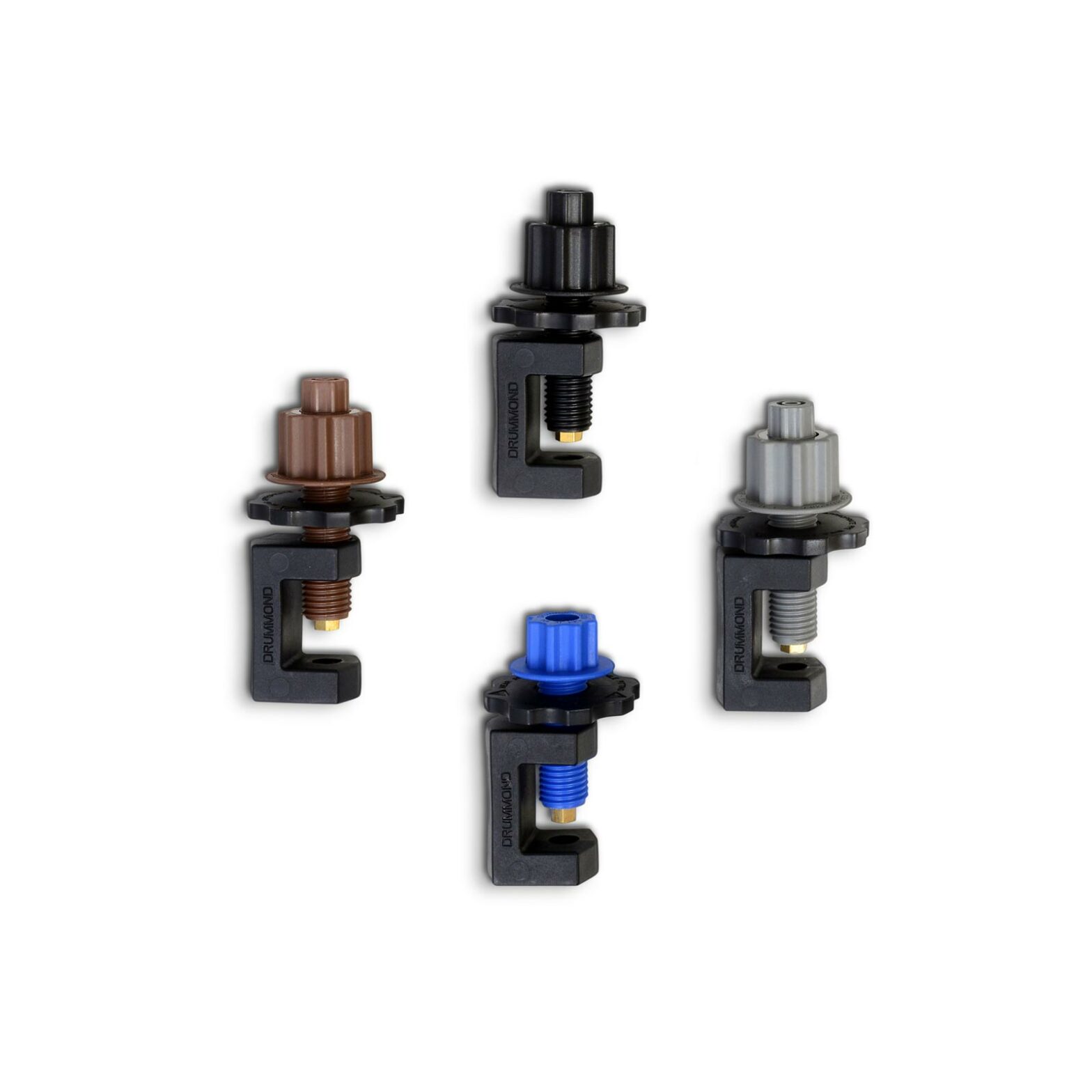

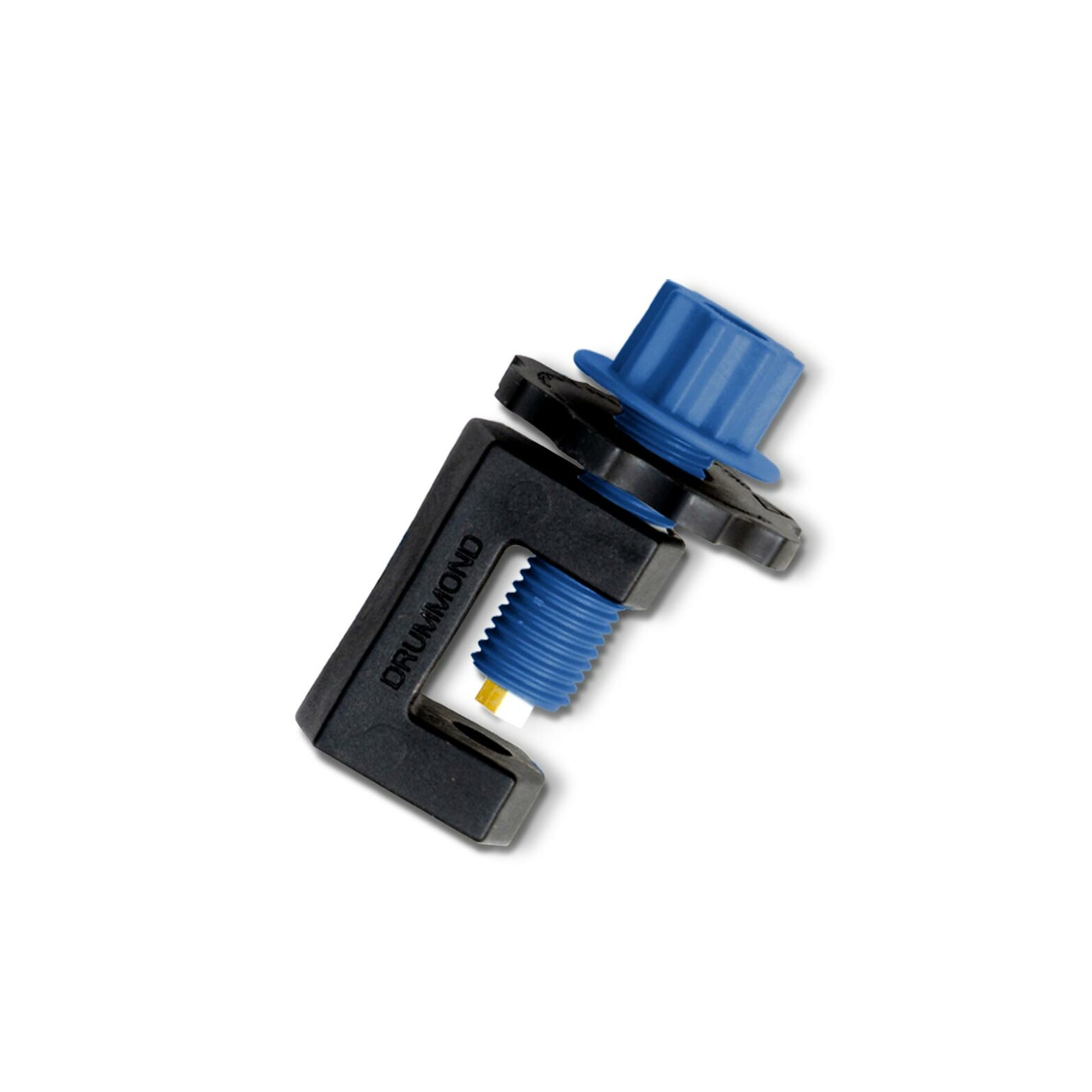

The GCK-F-KIT1 consists of a set of four fused G–Clamps, black, brown and grey and a blue unfused unit for the neutral connection. The smaller barrel of the unfused design requires 25mm less clearance in front of the bus bar.
Easy bus bar connection
Robust and simple to use
3 fused clamps + 1 unfused for neutral
4mm jack plug connection
Applied electrical contact force
40N +/- 5N
Maximum working voltage
Maximum working voltage
Maximum working current
10A
Length behind bus bar
12mm
Length in front of bus bar
61mm (Unfused Blue Clamp) 87mm(Fused Black, Brown&Grey clamp)(+ 35mm as minimum allowance for 4mm plug)
Height above top of bus bar
14mm
Width
50mm for locking ring nut
Clearance in front of bus bar
Required to withdraw fuse holder 75mm
Materials
Nylon 66, reinforced with glass fibre
KIT1 includes
DRUGCLAMP/BK(Fused) DRUGCLAMP/BR(Fused) DRUGCLAMP/GY(Fused) DRUGCLAMP/BL(Unfused)
Full product specification can be found in the product manual or by contacting our team here
EAN: 5036162187575
